OX CNC Assembly Instructions 26 v1.1
© Bulk Man 3D 2019
GT3 Timing Belt and Pulley Assembly

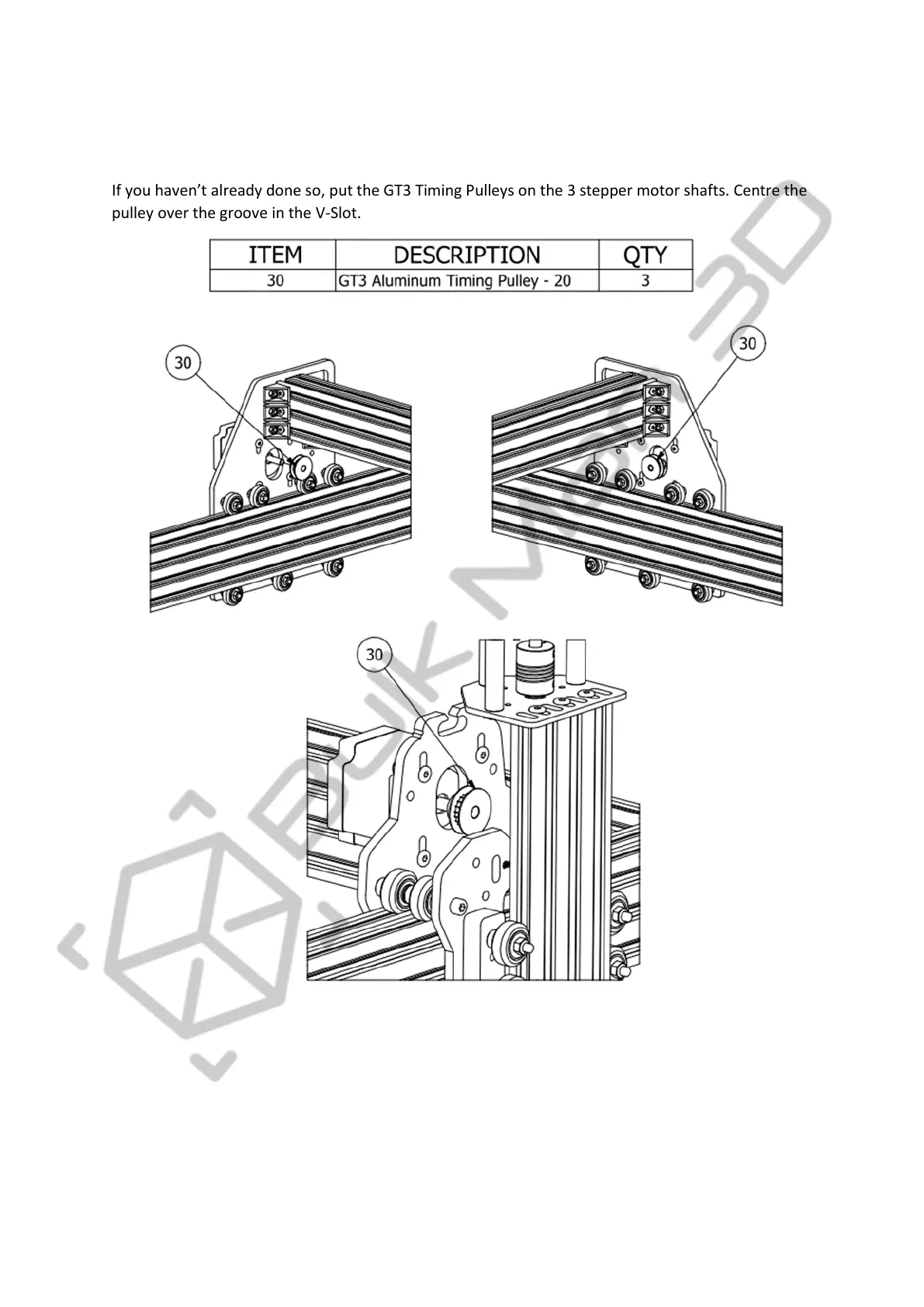

If you haven’t already done so, put the GT3 Timing Pulleys on the 3 stepper motor shafts. Centre the
pulley over the groove in the V-Slot.
