Bulk Man 3D OX CNC - Y-Axis Plate Assembly

OX CNC Assembly Instructions 4 v1.1
© Bulk Man 3D 2019
Y-Axis Plate Assembly

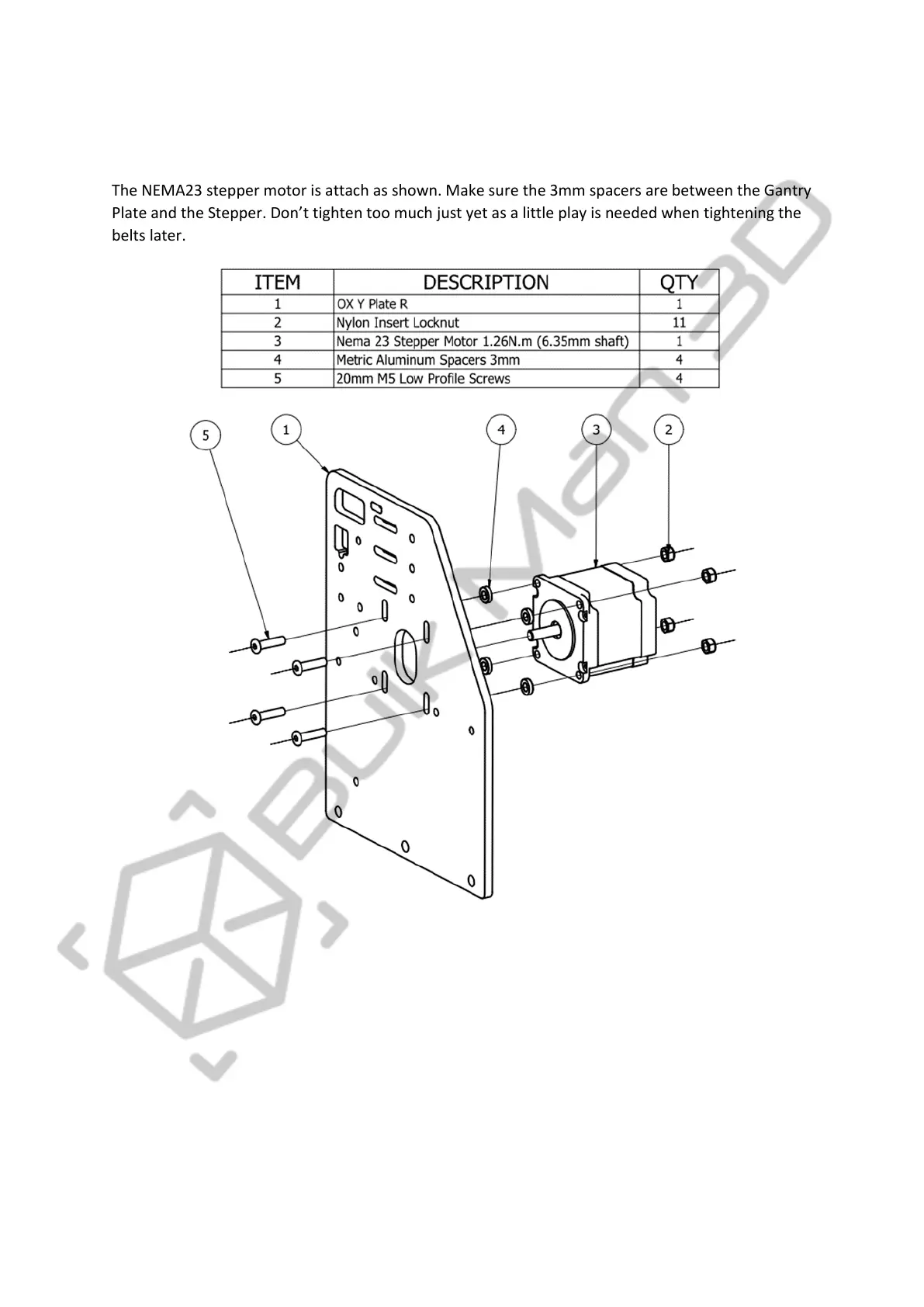

The NEMA23 stepper motor is attach as shown. Make sure the 3mm spacers are between the Gantry
Plate and the Stepper. Don’t tighten too much just yet as a little play is needed when tightening the
belts later.
