Bulk Man 3D OX CNC - Page 6

OX CNC Assembly Instructions 5 v1.1
© Bulk Man 3D 2019

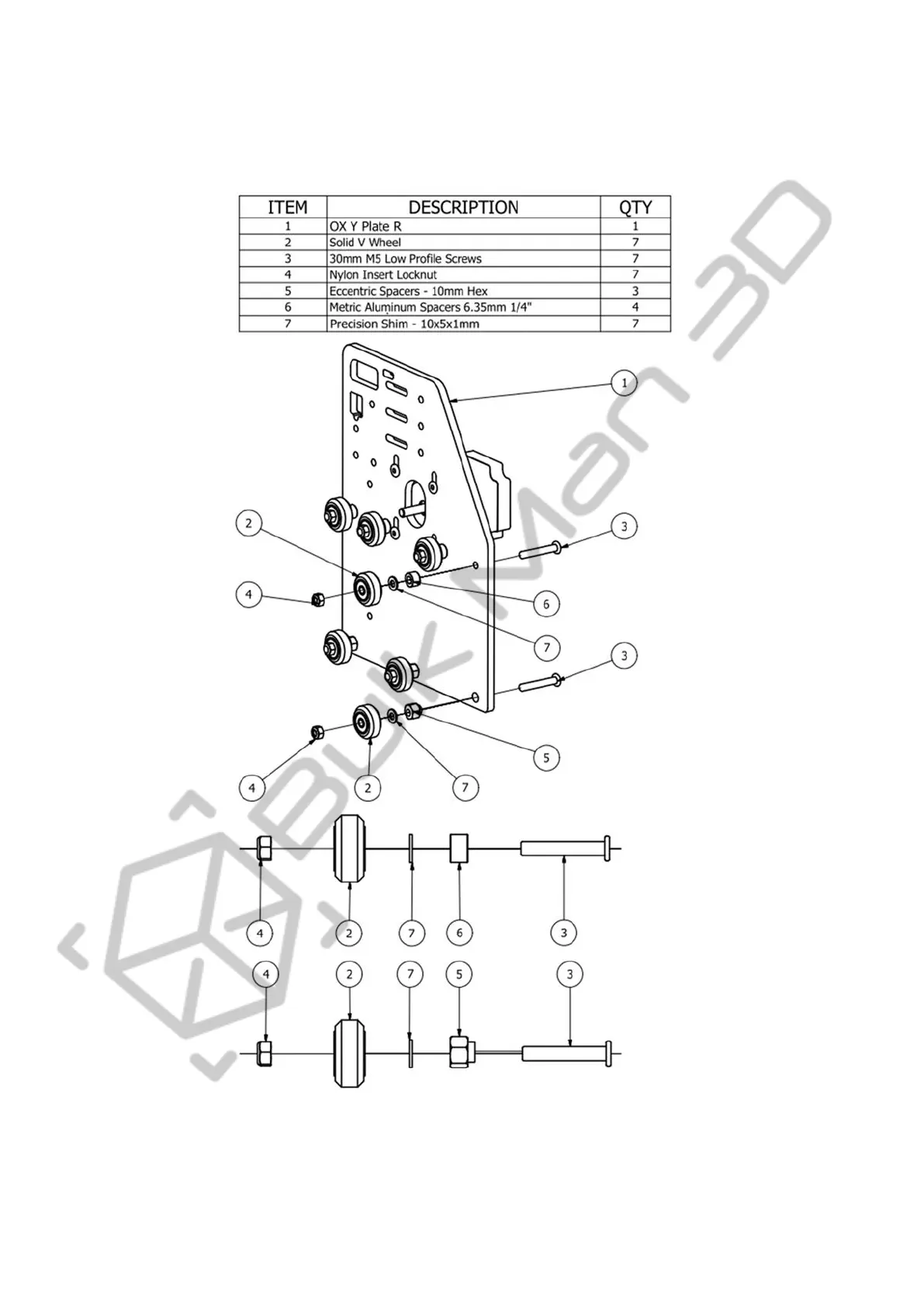

Attach the wheels to the gantry. Use Eccentric spacers on the 3 lower wheel and 6.35mm spacer on
the upper 4 wheels. Tighten the top sets but not the bottom as they will need to be adjusted when
put on the V-Slot.
