OX CNC Assembly Instructions 14 v1.1
© Bulk Man 3D 2019

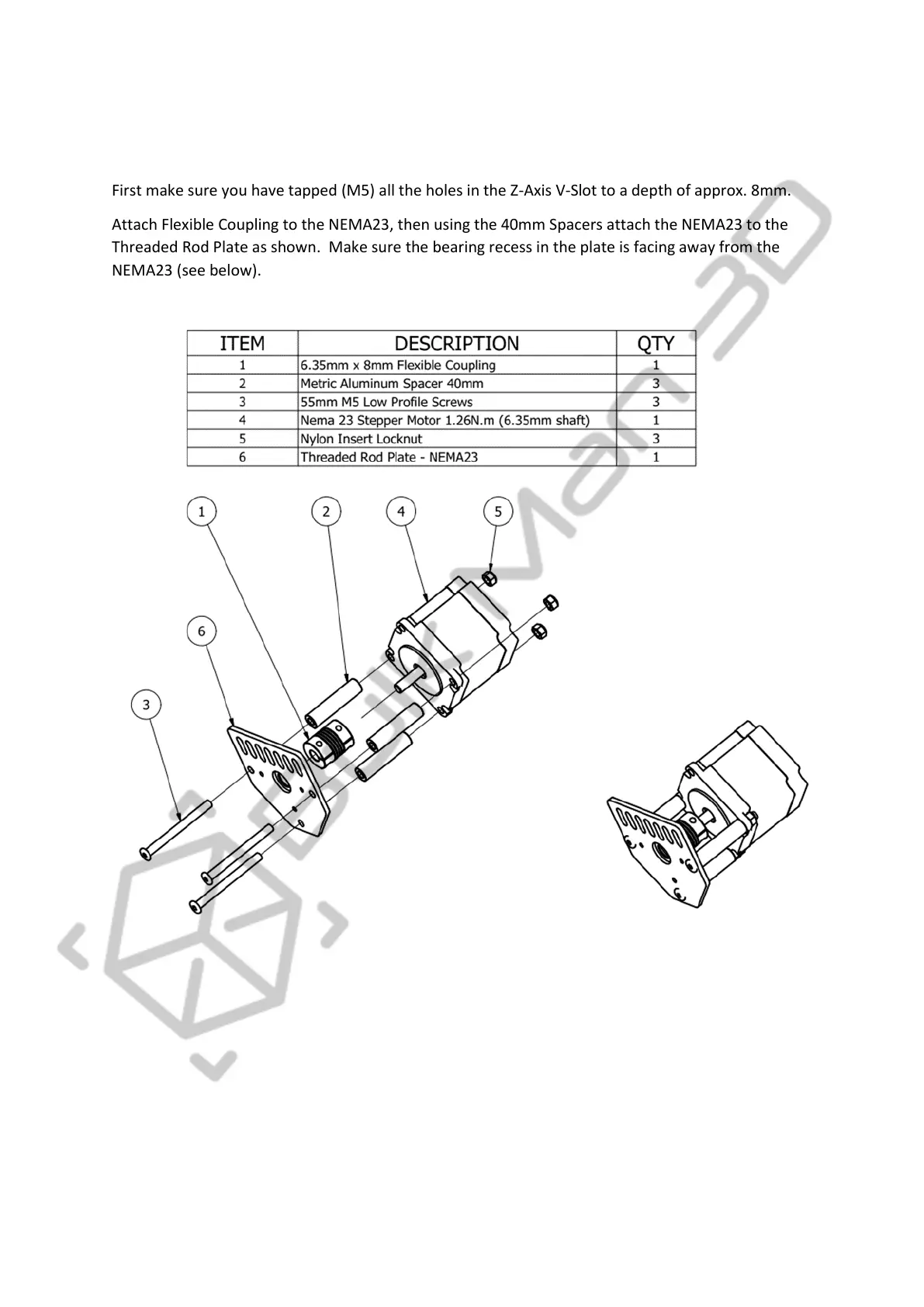

Z-Axis Assembly
First make sure you have tapped (M5) all the holes in the Z-Axis V-Slot to a depth of approx. 8mm.
Attach Flexible Coupling to the NEMA23, then using the 40mm Spacers attach the NEMA23 to the
Threaded Rod Plate as shown. Make sure the bearing recess in the plate is facing away from the
NEMA23 (see below).
