OX CNC Assembly Instructions 23 v1.1
© Bulk Man 3D 2019
Ox Base Assembly

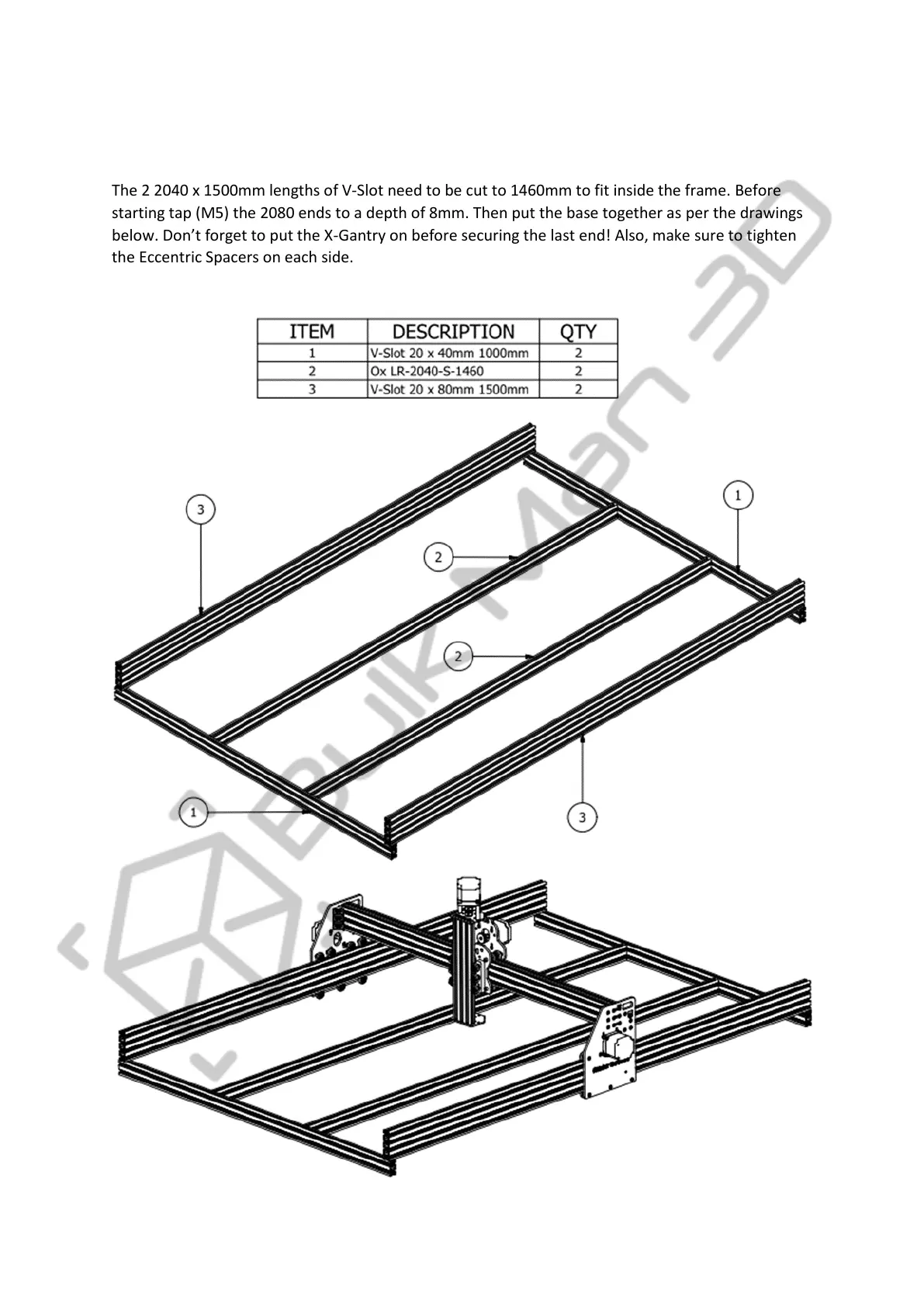

The 2 2040 x 1500mm lengths of V-Slot need to be cut to 1460mm to fit inside the frame. Before
starting tap (M5) the 2080 ends to a depth of 8mm. Then put the base together as per the drawings
below. Don’t forget to put the X-Gantry on before securing the last end! Also, make sure to tighten
the Eccentric Spacers on each side.
