Tighten the 4 Eccentric Spacers on the X/Z so that there is no lateral movement but the gantry can
still move freely back and forth.

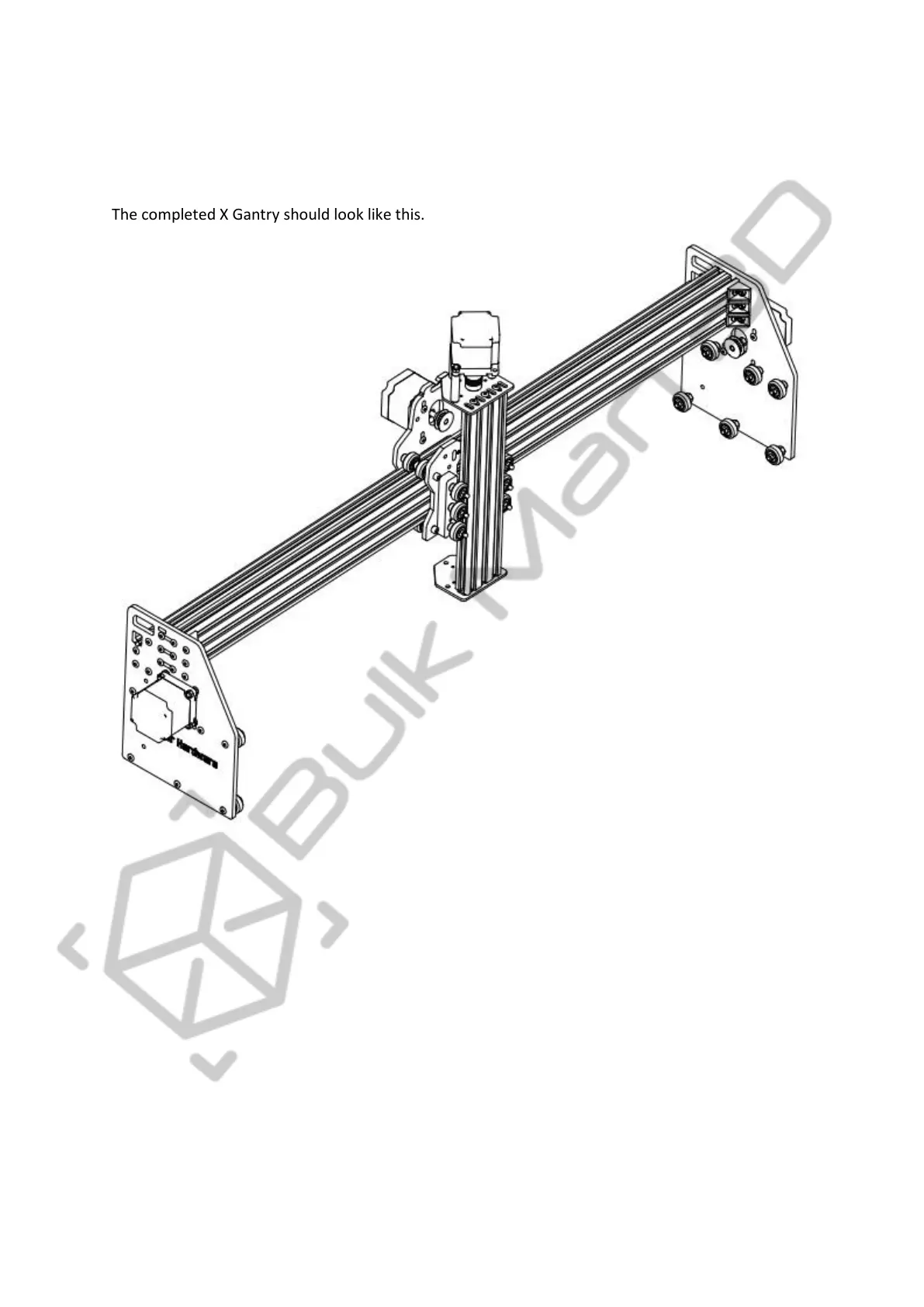

The completed X Gantry should look like this.
