OX CNC Assembly Instructions 27 v1.1
© Bulk Man 3D 2019

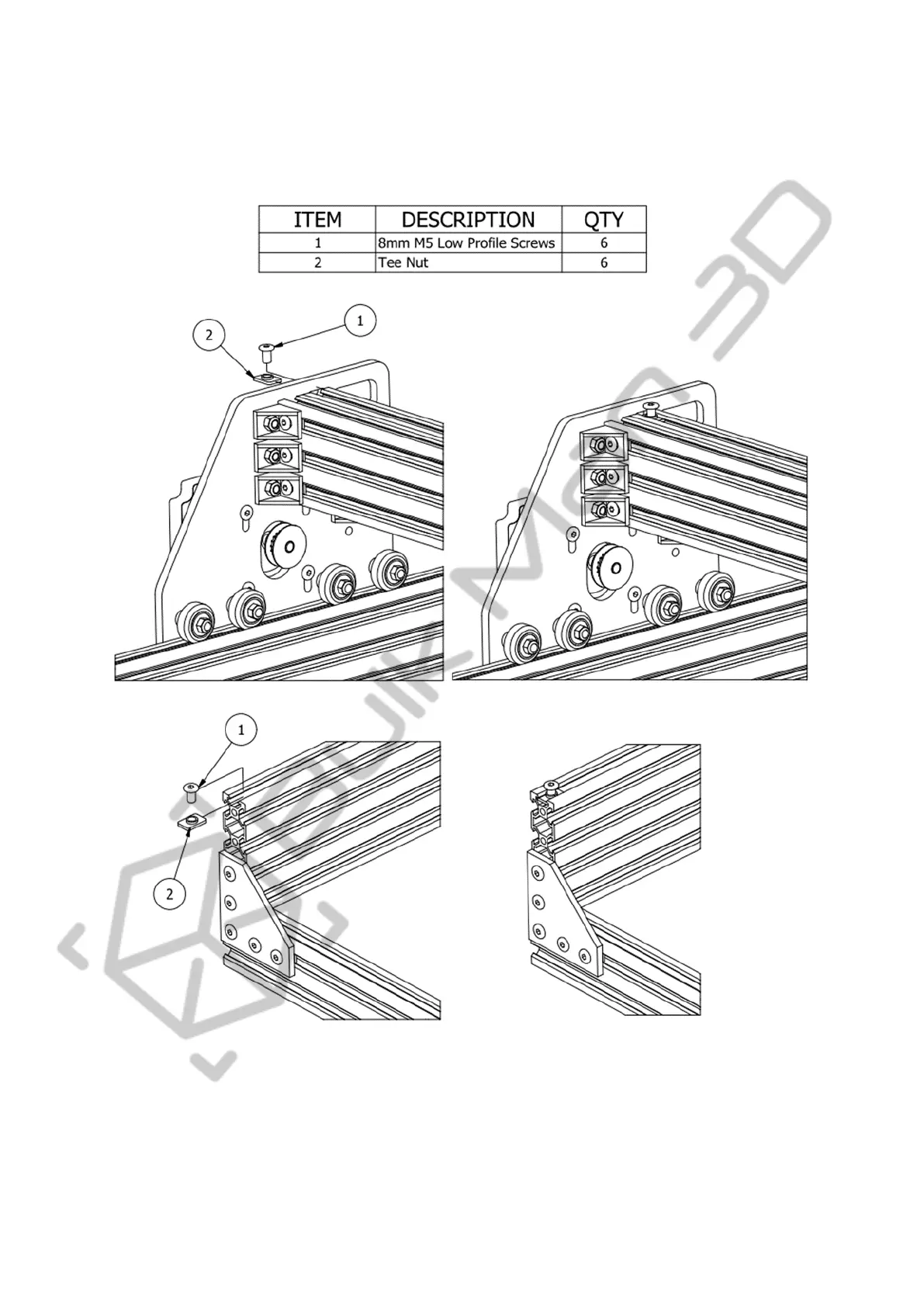

A T-Nut and an 8mm screw function as a belt clamp. Prepare each end (6 in total) as per the
drawings below:
