OX CNC Assembly Instructions 28 v1.1
© Bulk Man 3D 2019

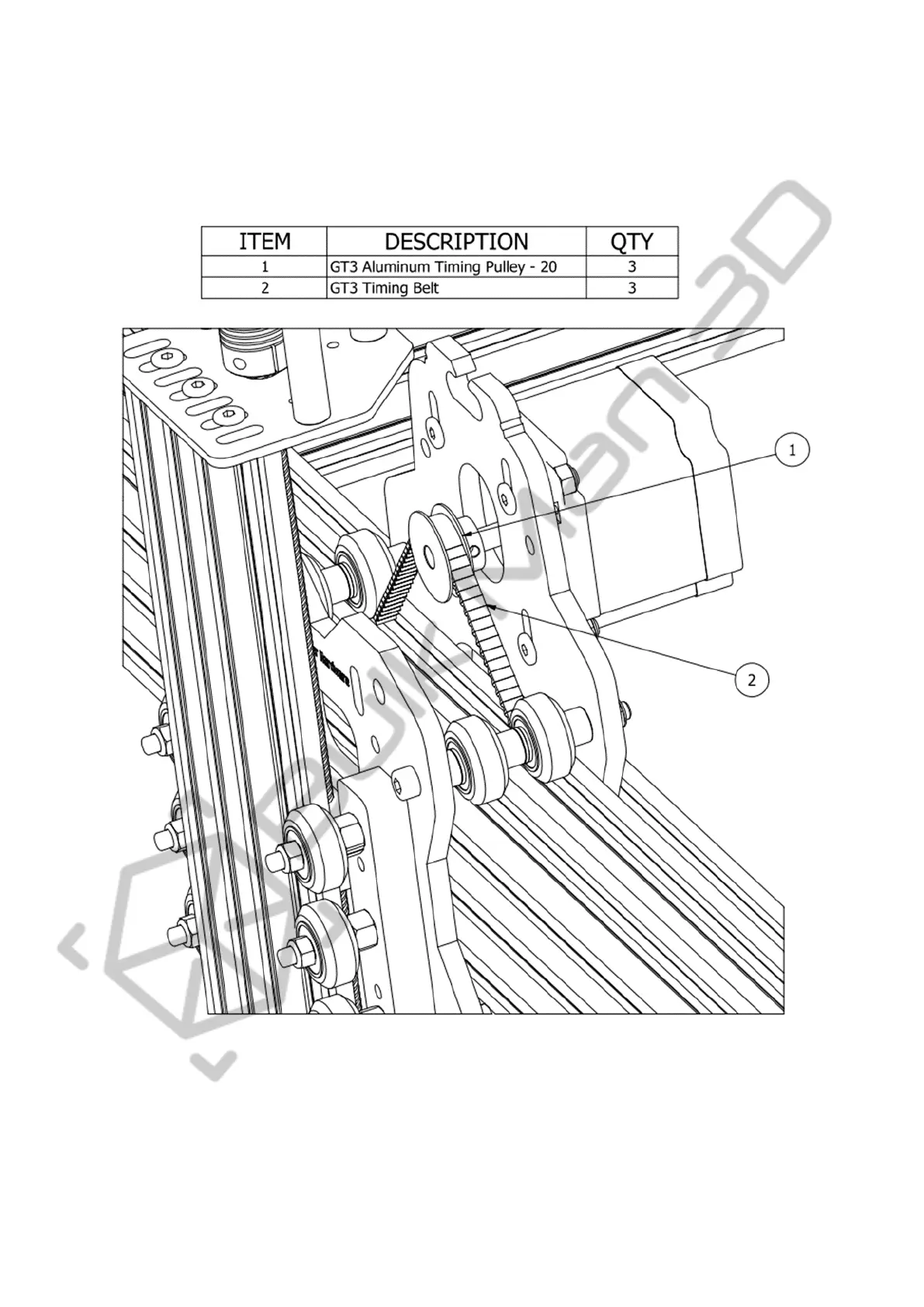

Making sure the teeth are facing down, attach one end of the Timing Belt with the clamp and feed
the rest under the V-Wheels, over the Timing Pulley, and under the V-Wheels. Pull tight and secure
with the other clamp.
