OX CNC Assembly Instructions 18 v1.1
© Bulk Man 3D 2019

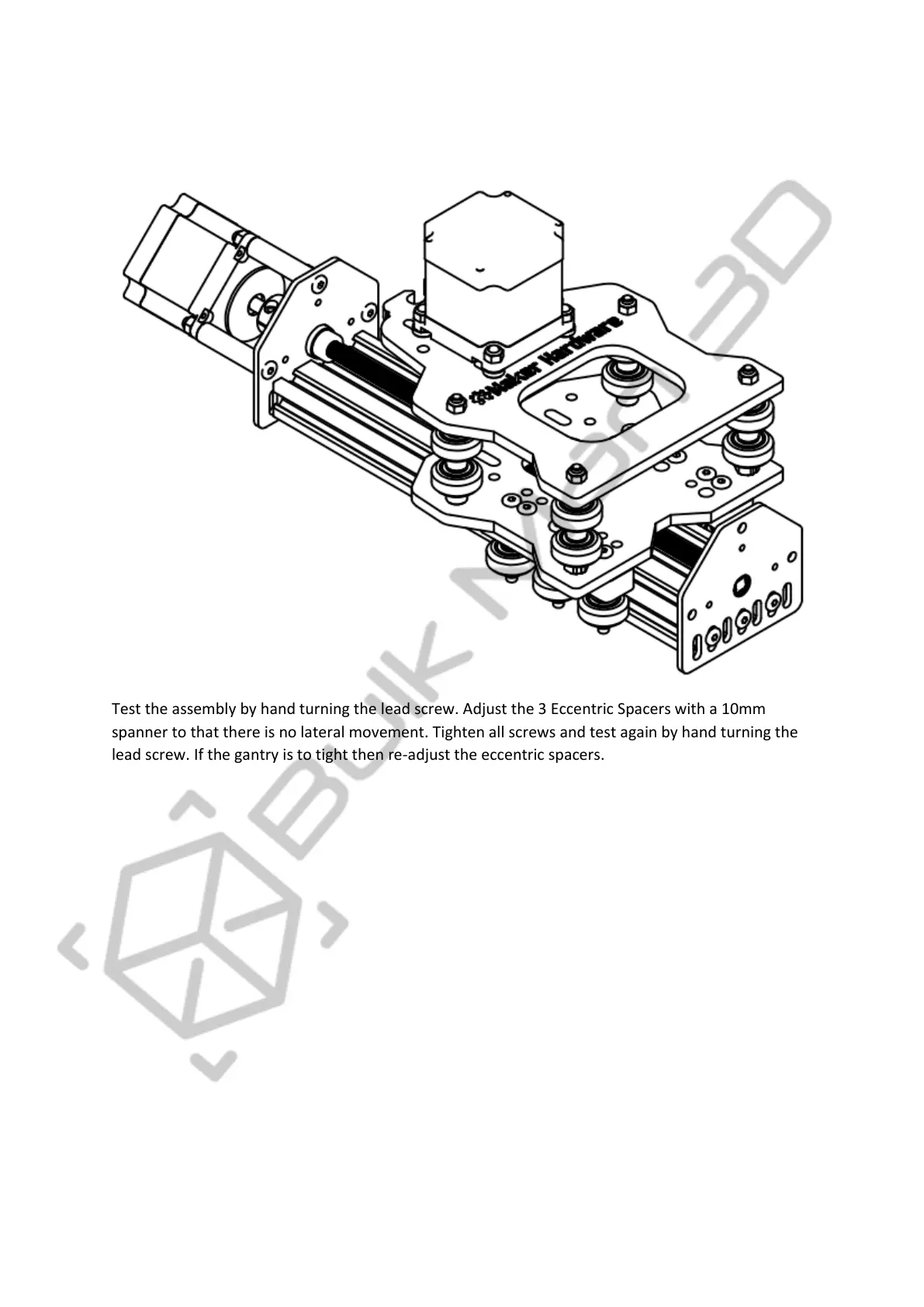

The completed X/Z assembly should look like this:
Test the assembly by hand turning the lead screw. Adjust the 3 Eccentric Spacers with a 10mm
spanner to that there is no lateral movement. Tighten all screws and test again by hand turning the
lead screw. If the gantry is to tight then re-adjust the eccentric spacers.
