OX CNC Assembly Instructions 8 v1.1
© Bulk Man 3D 2019

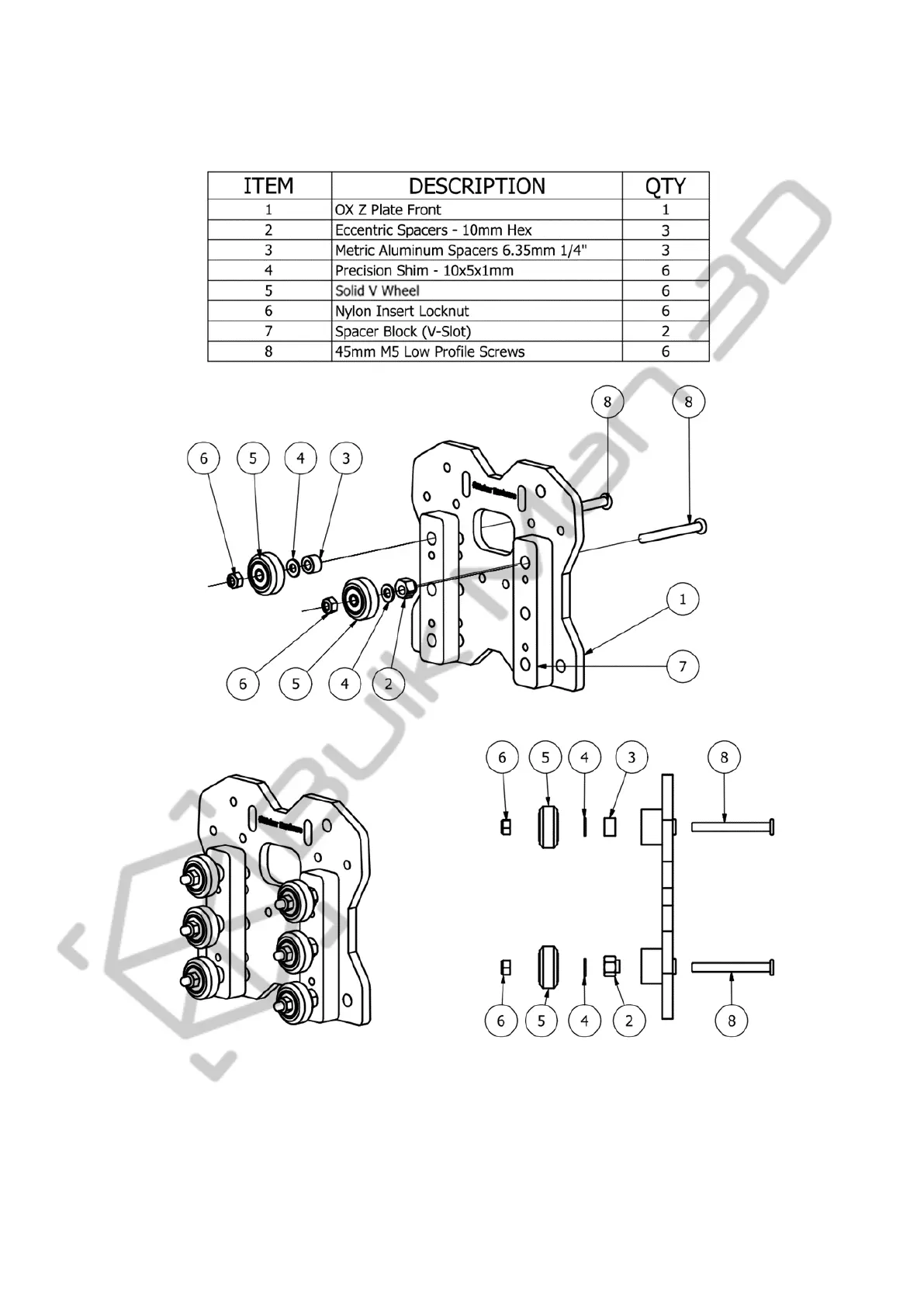

Using M5 x 45mm screws attach the V-Wheels through the Gantry Plate and the spacer blocks. Use 3
x Eccentric spacers on one spacers block and 3 x 6.35mm spacers on the other.
