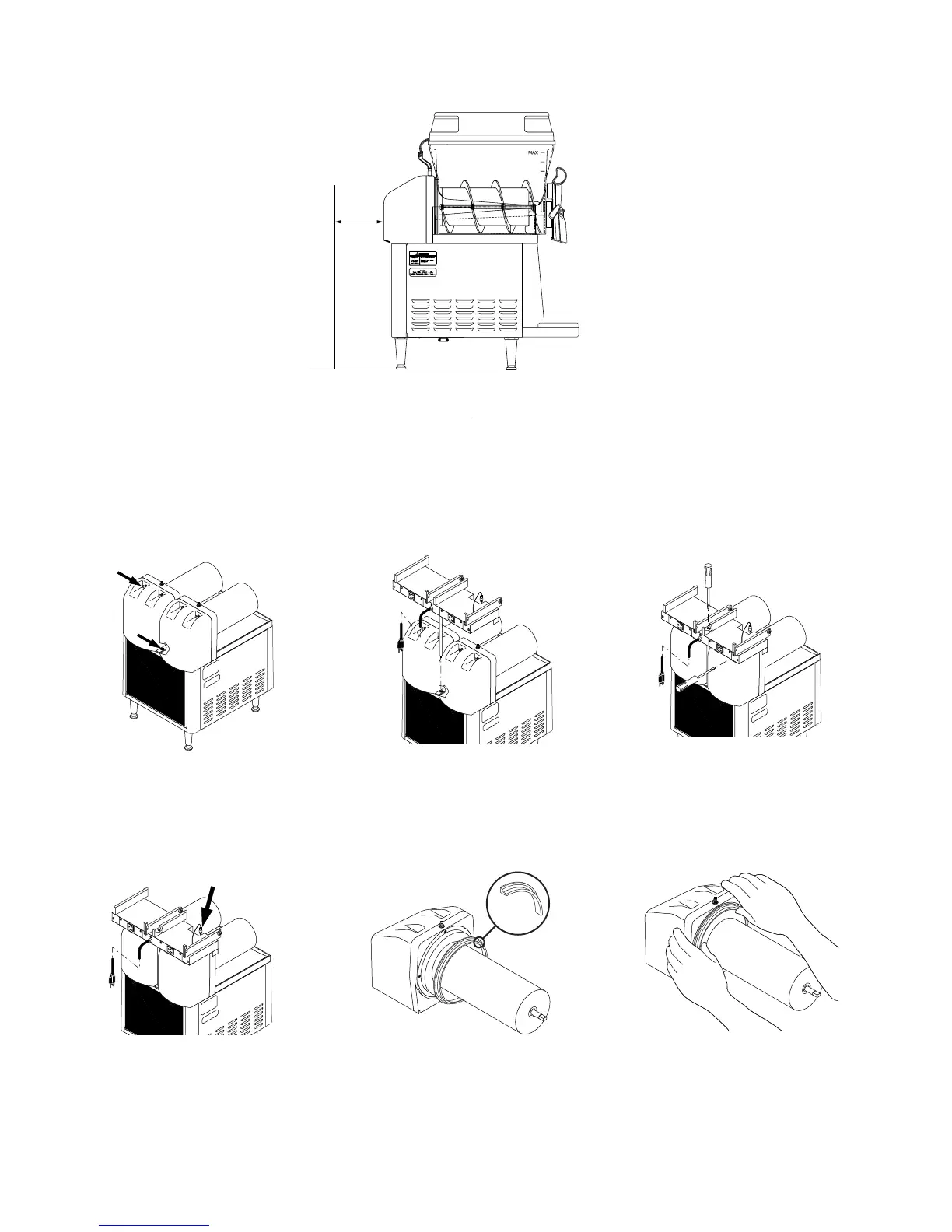

INITIAL SETUP
CAUTION – The dispenser is very heavy! Use care when lifting or moving it. Use at least two people to lift or
move the dispenser.
3. Remove the rear plastic plug
from the trim strip between the
hopper drip trays and loosen
the auger motor cover screws.
2. Remove all shipping material, including the compressor support eyebolt, the cooling drum supports, the
“Do Not Lift Here” signs from the cooling drums, and the “Rinse Before Using” signs from each hopper.
For models without PAF (Powder Auto-Fill™), proceed to step #7.
4. Place PAF platform assembly
on top of the motor covers and
install support rod into hole in
trim strip.
6.0"
MIN.
1. Set the dispenser on a sturdy counter top. The dispenser requires a minimum of 6.0" air clearance at the rear
of the dispenser. For optimum performance, do not let warm air from surrounding machines blow on the
ULTRA -2.
NOTE – The dispenser should be level or slightly lower in front for proper operation.
6. Plug RCA cord into ULTRA base
unit. Proceed with steps 7 thru
12.
5. Tighten support rod from top
of platform. Retighten motor
cover screws.
8. Press the seals firmly into
place.
7. Install each hopper seal over
the flange at the rear of the
cooling drums as shown.
32080.0001 021105
To Next Page
