Technical Data
6 TECHNICAL DATA
WARNING!
Risk of injury from high pressure!
Important device-specific technical specifications are indicated on
the type label.
▶ Observe permitted pressure range on the type label of the
device.
6.1 Inscription on the type label
Type
Control function Orifice
(Diaphragm size)
Body material
Identification number of
the device
Date of
manufacture
2030 A 65,0 EPDM PV
Made in Germany
00147838
W36LP
Pilot 4,5-6bar
FLNSCH Pmed
10bar
S/N 1060
Seal material
Port connection
Max. medium
pressure
Control pressure
Approval rating
Serial number

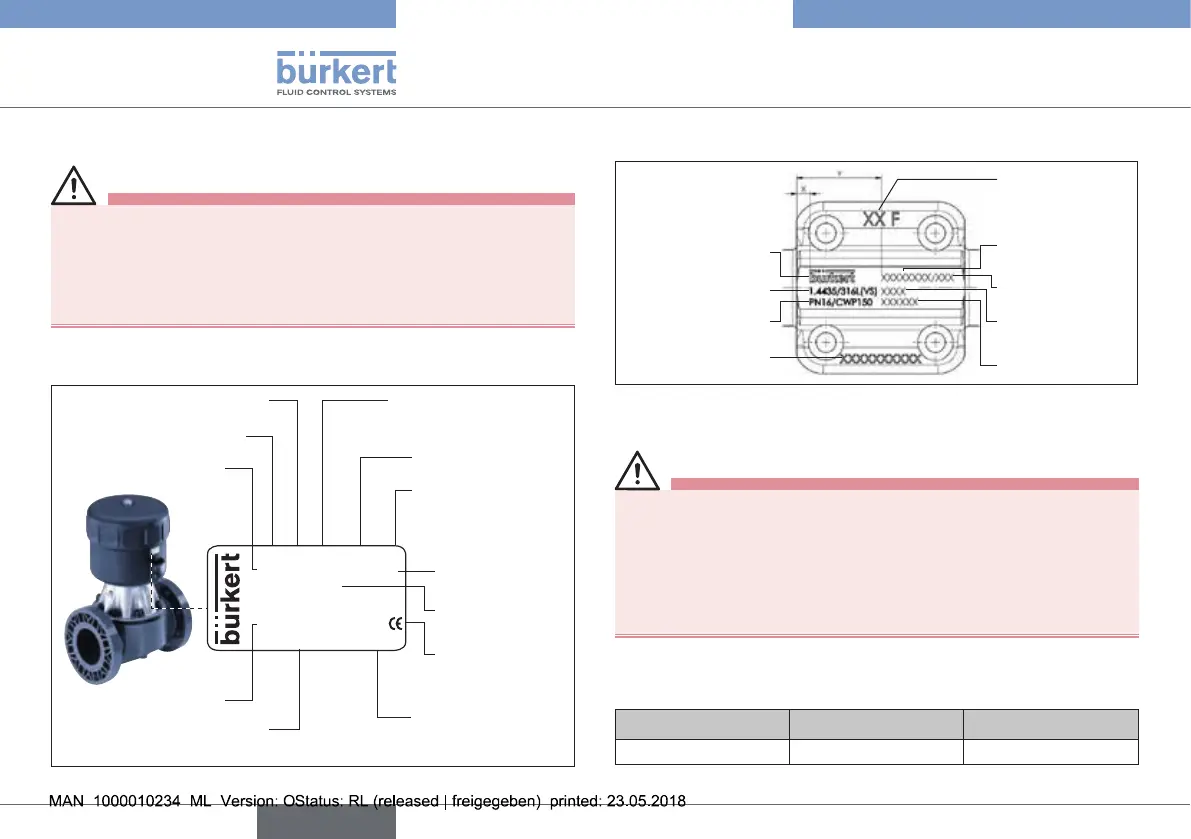

Fig. 1: Inscription on the type label (Example)
6.2 Labeling of the forged bodies
Batch number/
manufacturer sign
Company logo
Material
Pressure stage
Production number/
order number
(F-part)
Serial number
Surface quality
code
Customer-specific
text (optional)
Connection orifice
and pipe dimensions
Fig. 2: Labeling of the forged bodies
6.3 Operating Conditions
WARNING!
Danger of bursting from overpressure!
If the device ruptures, the medium may cause injuries, chemical
burns or scalds!
▶ Do not exceed the maximum control and medium pressure.
Observe specifications on the type label!
▶ Observe permitted ambient and media temperature.
6.3.1 Allowable Temperatures
Ambient temperature for actuators:
Material
Size ø Temperature
PA 175 mm / 225 mm -10 ... +50 °C
Tab. 1: Ambient temperature for actuators
