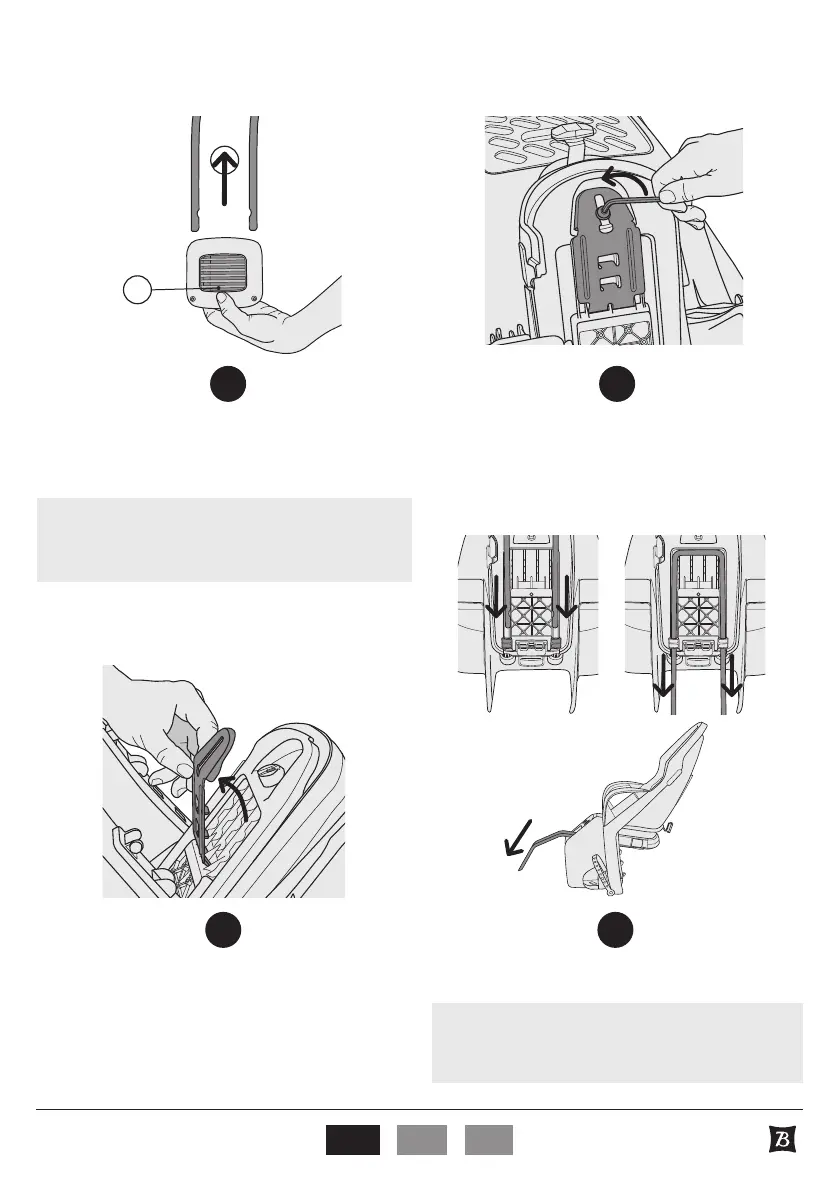

Flip the Base Plate away from the Bicycle
Seat and remove it from the slots on
the underside of the Bicycle Seat.
Remove the bolt connecting the
Base Plate to the Bicycle Seat
by rotating it counter-clockwise
using the included Hex Wrench.
Pass the Mounting Rails through the 2 holes
between the legs of the Bicycle Seat.
3
2
4
note
The orientation of the Mounting Rails should be such
that they are bending downwards.
Attaching the Mounting Rails to Your Bicycle Seat
(Dash X FM)
Remove the Mounting Rails from the Mounting
Block by depressing the front face of the
Mounting Block
A
and simultaneously pull the
Mounting Rails out of the Mounting Block
B
.
1
note
Pull both Mounting Rails from Mounting Block at the
same time for smooth removal.
A
B
