Burnham SERIES 2 - Pilot Burner and Gas Valve, Intermittent Ignition, Natural Gas; Pilot Burner and Gas Valve, Intermittent Ignition, Lp;Propane

44

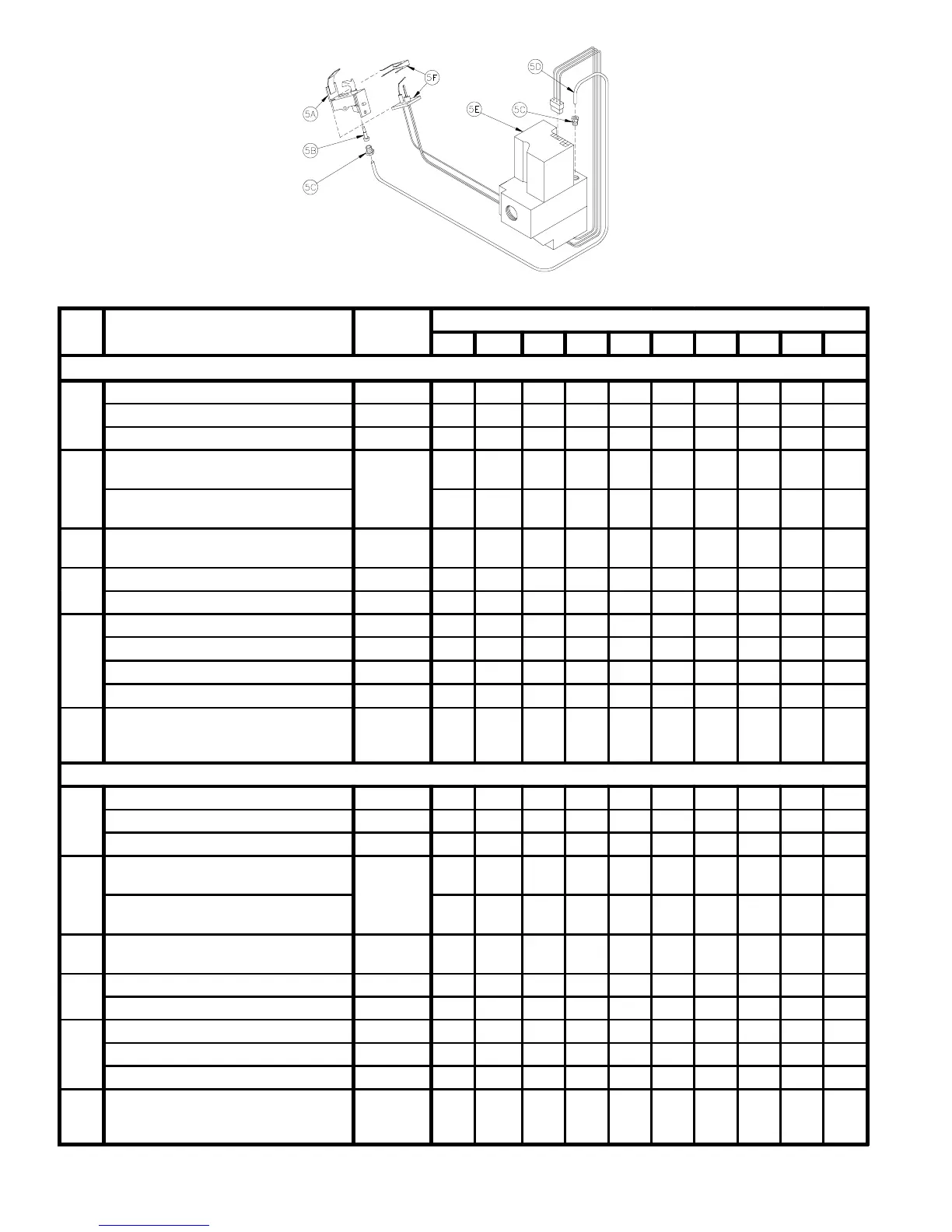

Figure 38
Key
No.
Description Part No.
Quantity
202 202X 2 03 204 205 2 06 2 07 208 209 2 10
5. Pilot B urner and Gas Valve, Intermittent Ignition, Natural Gas
5A
Pilot Burner, Honeywell Q3480C1197 8236124 1 1 1 1 1 1 1 1 1 1
Pilot Burner, Honeywell Q3450B1039 8236144 1** --- --- --- --- --- --- --- --- ---
Pilot Burner, Honeywell Q3480C1254 8236133 --- 1** 1** 1** 1** 1** 1** 1** 1** 1**
5B
Pilot Orifice, Honeywell with NE22
Orifice, 388146NE (.022")
Included
with 5A
1 1 11111111
Pilot Orifice, Honeywell with BCR18
Orifice, 390686-4 (.018")
1** --- --- --- --- --- --- --- --- ---
5C
Adapter, 1/4" OD x 1/4" NPT
Included w ith 5A and 5E
82361092 2 22222222
5D
Pilot Tubing,1/4" OD x 30" LG 8236122 1 1 1 1 1 1 1 --- --- ---
Pilot Tubing,1/4" OD x 40" LG 8236123 --- --- --- --- --- --- --- 1 1 1
5E
Gas Valve, Honeywell SV9501P2004 81660213 1 1 1 1 1 1 --- --- --- ---
Gas Valve, Honeywell SV9601P4107 81660216 --- --- --- --- --- --- 1 1 1 1
Gas Valve, Honeywell SV9501P2087 81660237 1** 1** 1** 1** 1** 1** --- --- --- ---
Gas Valve, Honeywell SV9601P4172 81660238 --- --- --- --- --- --- 1** 1** 1** 1**
5F
Ignitor/Sensor Assembly with clip
Honeywell Q3400A1024 (Included
with 5A)
82361141 1 11111111
5. Pilot Burner and Gas Valve, Intermittent Ignition, LP/Propane
5A
Pilot Burner, Honeywell Q3480C1437 8236125 1 1 1 1 1 1 1 1 1 1
Pilot Burner, Honeywell Q3450B1047 8236145 1** --- --- --- --- --- --- --- --- ---
Pilot Burner, Honeywell Q3480C1452 8236134 --- 1** 1** 1** 1** 1** 1** 1** 1** 1**
5B
Pilot Orifice, Honeywell with KR14
Orifice, 388146KP (.014")
Included
with 5A
1 1 11111111
Pilot Orifice, Honeywell with BBR12
Orifice, 390686-25 (.012")
1** --- --- --- --- --- --- --- --- ---
5C
Adapter, 1/4" OD x 1/4" NPT
Included w ith 5A and 5E
82361092 2 22222222
5D
Pilot Tubing, 1/4" OD x30" LG 8236122 1 1 1 1 1 1 1 --- --- ---
Pilot Tubing, 1/4" OD x40" LG 8236123 --- --- --- --- --- --- --- 1 1 1
5E
Gas Valve, Honeywell SV9601P4115 81660215 --- --- --- --- --- --- 1 1 1 1
Gas Valve, Honeywell SV9501P2020 81660239 1 1 1 1 1 1 --- --- --- ---
Gas Valve, Honeywell SV9601P4164 81660240 --- --- --- --- --- --- 1** 1** 1** 1**
5F
Ignitor/Sensor Assembly with clip
Honeywell Q3400A1024
(Included with 5A)
82361141 1 11111111
** 40mm Burners Only
