BUSCH SV 1010 C - Wiring Diagram Single-Phase Motor; Wiring Diagram Three-Phase Motor

5 | Installation
10 / 24 0870569132_SV_SD_DC1010-1040C_-0005_IM_en

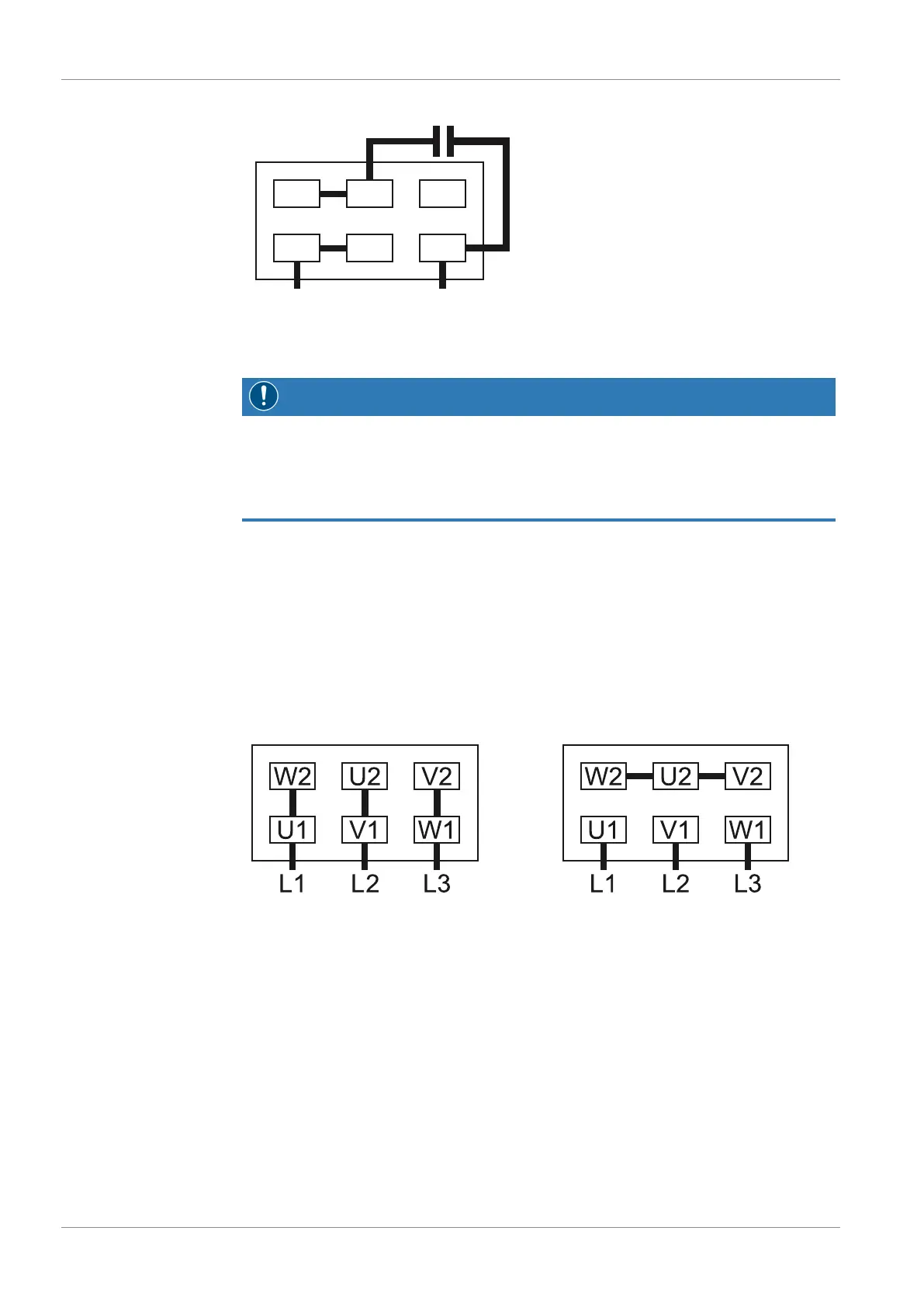

5.3.1 Wiring Diagram Single-Phase Motor
21 3
54 6
L N
5.3.2 Wiring Diagram Three-Phase Motor
NOTICE
Incorrect direction of rotation.
Risk of damage to the machine!
• Operation in the wrong direction of rotation can destroy the machine in a short time!
Prior to start-up, ensure that the machine is operated in the right direction.
• Determine the intended direction of rotation with the arrow (stuck on or cast).
• Jog the motor briefly.
• Watch the fan wheel of the motor and determine the direction of rotation just before
the fan wheel stops.
If the rotation of the motor must be changed:
• Switch any two of the motor phase wires.
Delta connection (low voltage): Star connection (high voltage):
