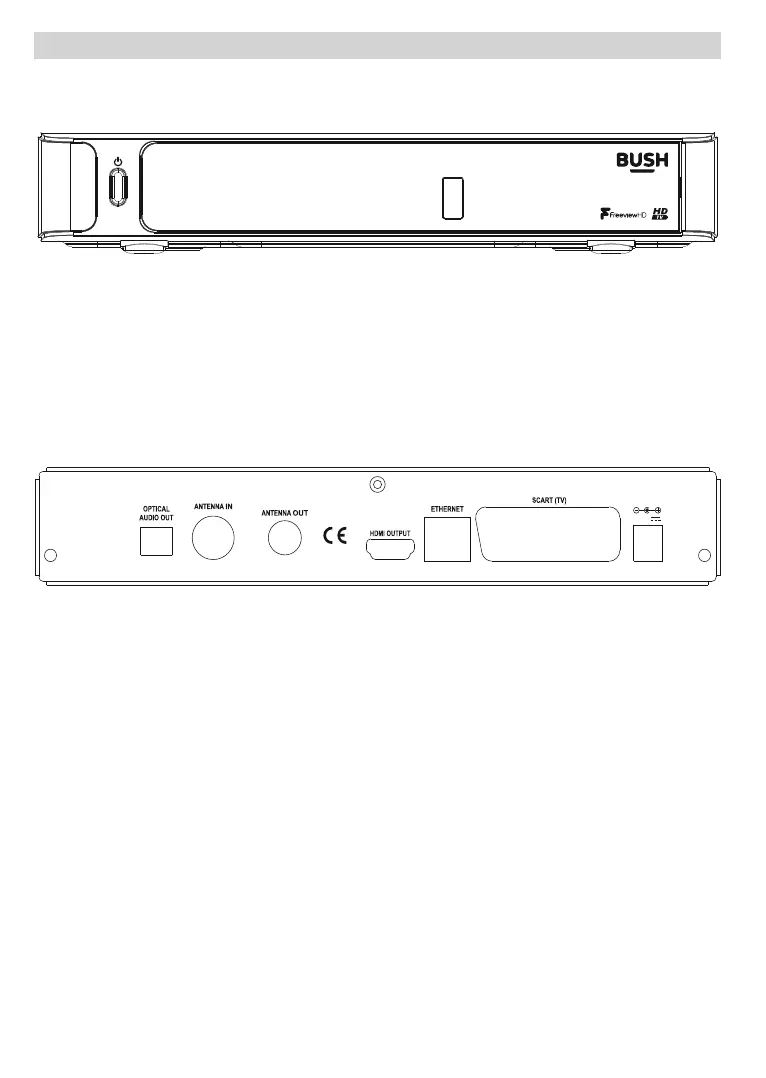

Connections on the Set Top Box
1. USB INPUT: To connect external USB storage devices.
2. OPTICAL AUDIO OUT: You can use this connector to output the digital audio to an external device.
See your audio system instruction book for further information.
3. ANTENNA IN: Aerial input
4. ANTENNA OUT: To watch channels on the TV
5. HDMI IN: HDMI connection
6. LAN: Ethernet Input
7. SCART OUT:,I\RXU79KDVDVFDUWFRQQHFWRU\RXFDQFRQQHFWWKHER[WR\RXU79XVLQJDVFDUWFDEOH
8. POWER CABLE: DC IN (12V)
Make sure that you connect all cables and connections before you plug the unit into the mains supply. After you
FRQQHFWWKHXQLWWRWKHPDLQVVXSSO\WKH/('OLJKWORFDWHGRQWKHIURQWSDQHOZLOOEHUHG6WDQGE\PRGH
12 V DC
2A
FRONT VIEW
BACK VIEW
