BWT Diago - Technical Data; BWT Diago RF Specifications

7
GB
BWT Diago RF 3/4“ 1“ 5/4“
Nominal connection width DN 20 25 32
Flow rate at ∆ p = 0,2 bar m³/h 3,0 3,5 4,0
Flow rate at ∆ p = 0,5 bar m³/h 5,5 6,0 7,5
Flow rate at ∆ p = 1 bar m³/h 7,0 7,5 8,0
Lower/upper admission width µm 90/110
Nominal pressure (PN) bar 1 6
Operation press ure, min ./max. bar 2,5 during back wash / 16
Water temperature °C 30
Ambient temperature max. °C 40
Length without ttings A mm 120 120 130
Length with ttings B mm 205 205 226
Total height C mm 335
Minimum distance pipe centre to oor D mm 320
Operating weight, approx. kg 2,0 2,0 2,3
Battery Type AA 2 pcs. 1,5 V

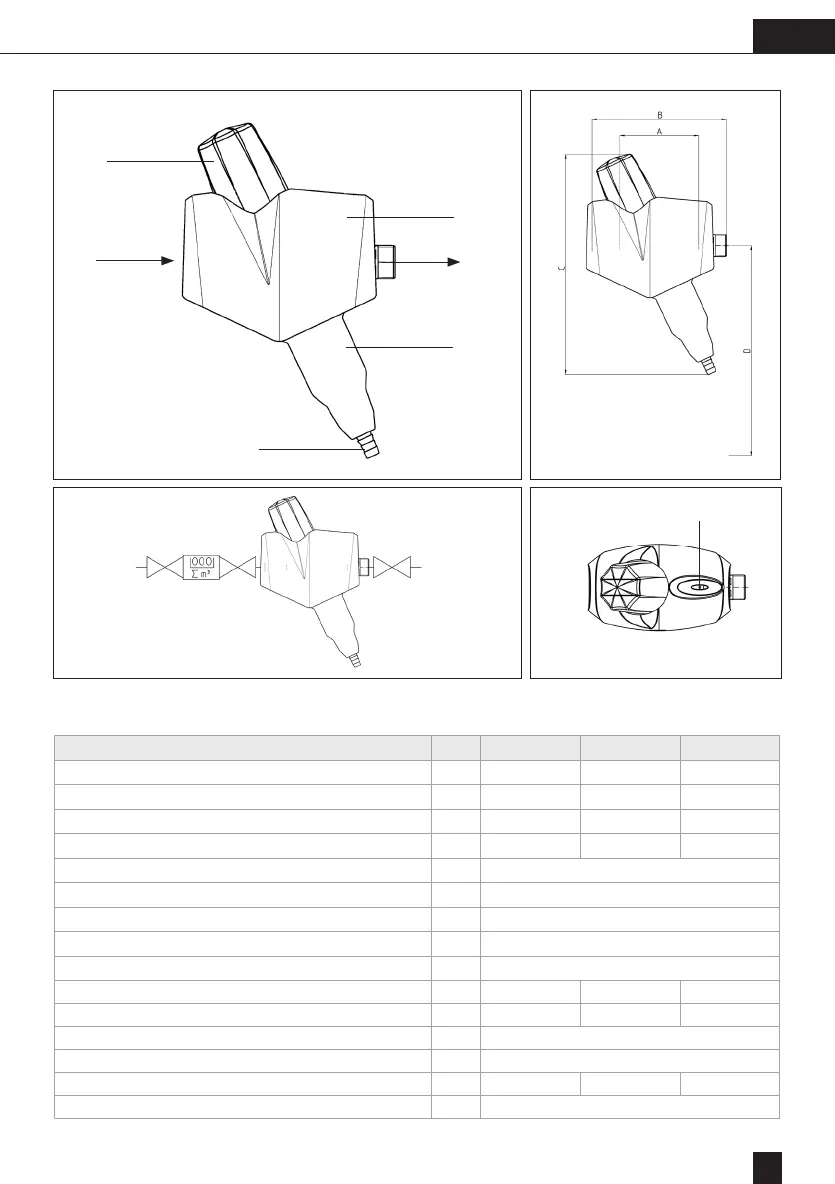

Fig. 1 Fig. 2
1. Technical Data
Fig. 3 Fig. 3
6
1
2
5
4
raw water clean water
6
