Notice technique ADOUCISSEUR A27-A6X - Manual SOFTENER A27-A6X code P0011144 - Rev 0 - 29/02/2016
Put the softener (1) in place Place the device in its defi nitive position (see
dimensions on the Scope of Delivery sheet)
The fl oor shall be clean and horizontal.
The controller unit (2) and the lid shall remain
accessible.

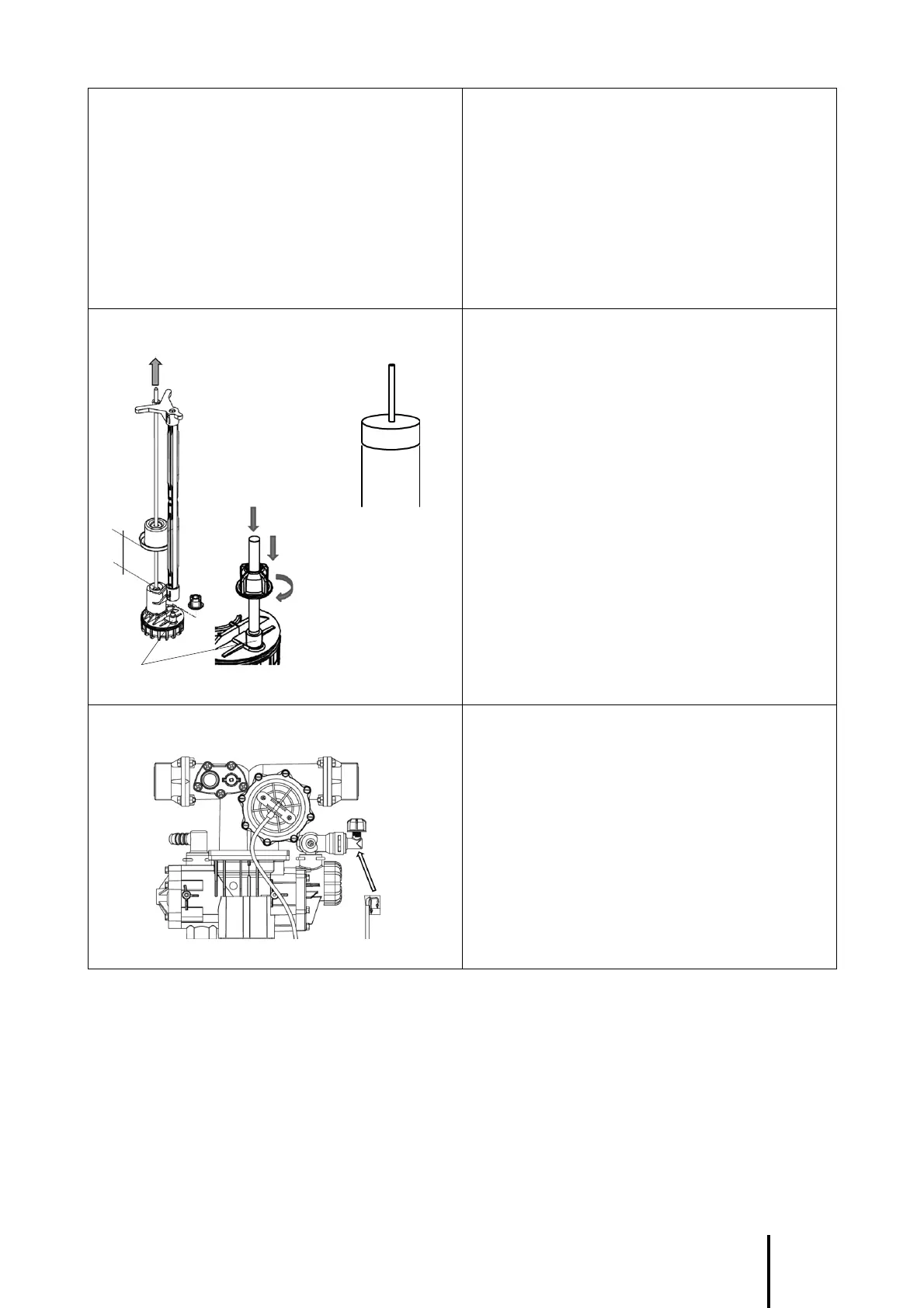

Set and connect the brine valve (5) Open the salt lid (4), remove the cap (17), then
the brine valve (5) from its well (16).
Set the fl oat height (X), rod pulled, at the value
provided on your Scope of Delivery sheet.
Check that the brining tube (9) is cut straight on
its ends, put it on the sheath (15), then tighten it
on the fi tting located on the brine valve foot (18),
using the fl y nut (19).
Put the brine valve (5) back into the bottom of the
well (16), pass the brining tube (9) through the
hole of the cap (17), then put this cap back upon
the well (16).
Pass the brining tube (9) through the dedicated
hole in the salt tank, making sure that this tube
does not bend anywhere.
Connect the hydraulic block Connect the brining tube (9) to the quick fi tting
(20).
Connect the in and out fl exible hoses (13) res-
pectively on the fl ange fi ttings (21) and (22) of
the hydraulic block.
Connect the drain tube (8) on the splined elbow
fi tting (23) and tighten it with a hose clamp (Ser-
fl ex type).
Connect the plug of the chlorination cell if your
softener has this option (24).
