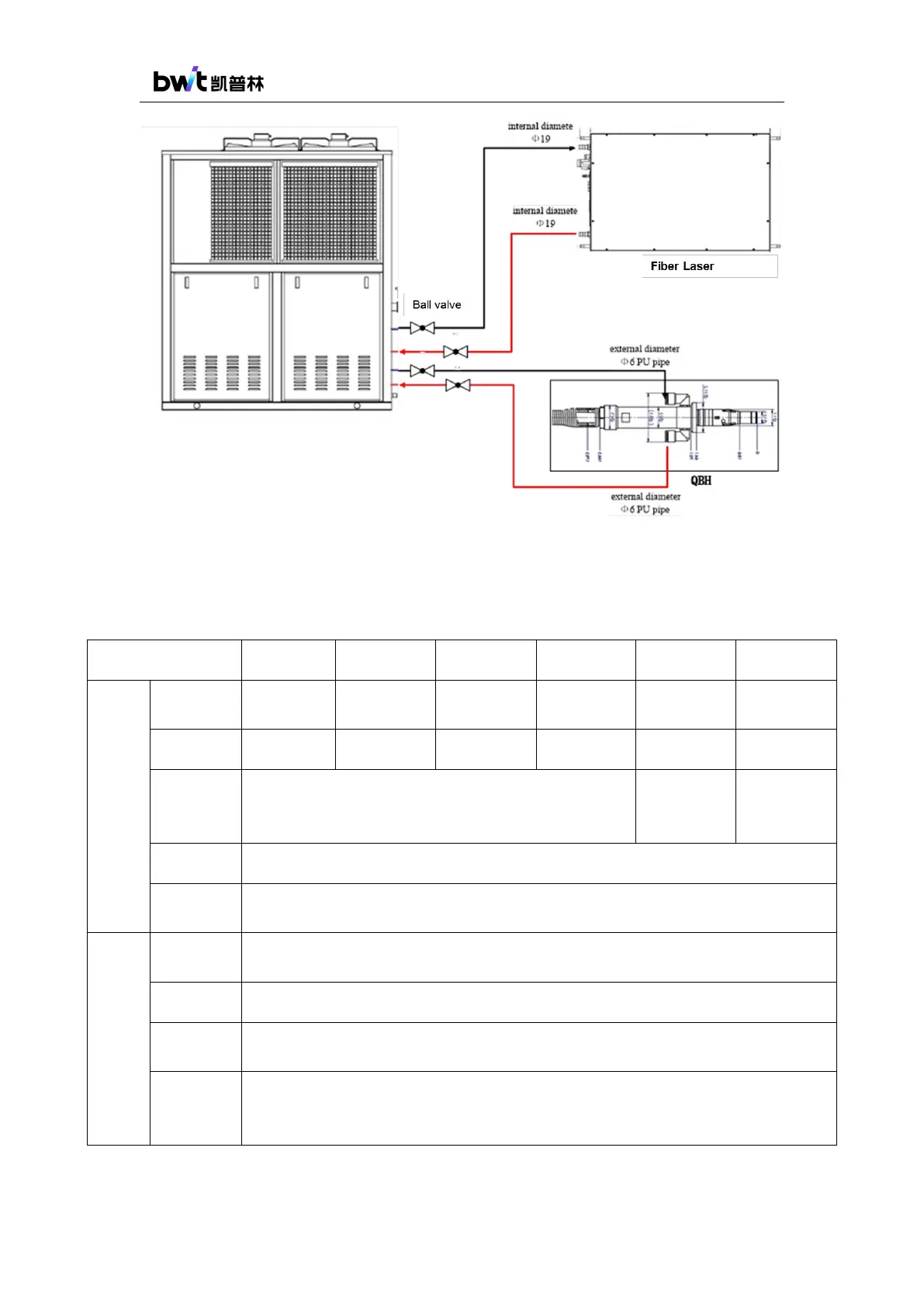

Figure 18 BFL-CW3000 Water cooling connection diagram
The specifications for the cooling system are shown in Table 9.
Table 9 Cooling System Specifications
Note: The deionized water or distilled water should be used and monthly replace. Do not use
Models
BFL-CW500
BFL-CW1000
BFL-CW1500
BFL-CW2000
BFL-CW3000
BFL-CW6000
Laser
cooling
Cooling
capacity
≥1KW
≥2.5KW
≥3.5KW
≥4.5KW
≥7.0KW
≥13KW
Flow
>8 L/min
>10L/min
>15L/min
>18L/min
>25L/min
>55L/min
Laser
interface
Push-in connector, connected to outer diameter 12mm/inner
diameter 8mm PU tube
Pagoda, inner
diameter
19mm hose
Pagoda, inner
diameter
25mm hose
Pressure
0.35—0.5Mpa
Temperature
setting
25℃
QBH
cooling
Temperature
setting
28—30℃
Flow
1.5—2.0L/min
Chillier
water pipe
DN>8 Soft tube, length
＜
15m
QBH Water
cooling
interface
Push-in connector, connected to PU tube with outer diameter of 6mm, length <1m
