Microphone Unit
EDC-2051 Instruction Manual
EDC-2011 Table-top Chairman Unit
Product Features
❏ Quick installation via CAT5E cables; easily applicable to small-scale meetings.
❏ High stability: parallel and series connection are applicable. Even one of the units is
disconnected/out of order, others can still operate normally.
❏ Featured with a built-in 2.5” loudspeaker. When the attendee presses the speaking
button, the speaker would be auto-off to avoid sound feedback.
❏ Speaking button and back-lighted indicator to control/show the speaking status.
❏ Microphone capsule is equipped with illuminating red ring to show speaking status.
❏ No limitation of chairman unit’s quantity; you can also randomly change the
position and sequence.
❏ Chairman unit is equipped with speaking priority button.
❏ Built-in Ø 3.5mm earphone and recording plugs (volume adjustable).
❏ Gooseneck microphone with shield and flexible tube, easy to be positioned and
bent without noise (standard length: 43/48/56/70cm).
❏ Prevents the interference of electromagnetic wave.

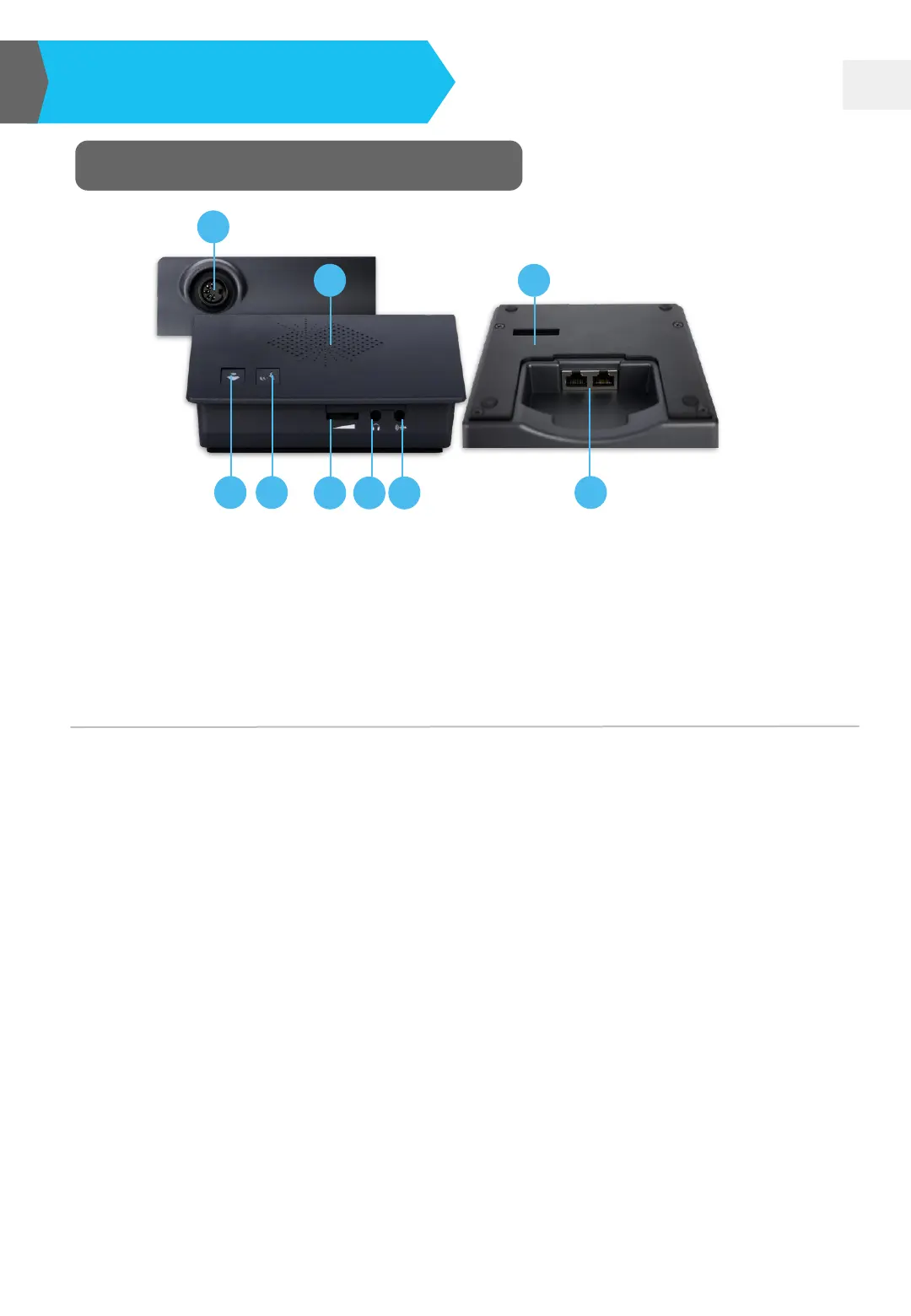

1. Gooseneck MIC plug (DIN TYPE)
3. Control button with indicator light
5. Earphone volume control
7. Recording plug (Φ 3.5 stereo)
9. Loop connector (CAT5E)
2. Built-in 2.5” loudspeaker
4. Speaking button with indicator light
6. Earphone plug (Φ 3.5 stereo)
8. DIP switch for MIC ID setting (please
refer to the appendix)
1
2 8
3 4
5 6 7
9
