C-Data EPON HGU User Manual

Company Address: Room 601, Floor 6, Building F, Songbai Road 1008, Sunshine Community，Xili Street, Nanshan District, Shenzhen(518108)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506
Website: www.cdatatec.com
5

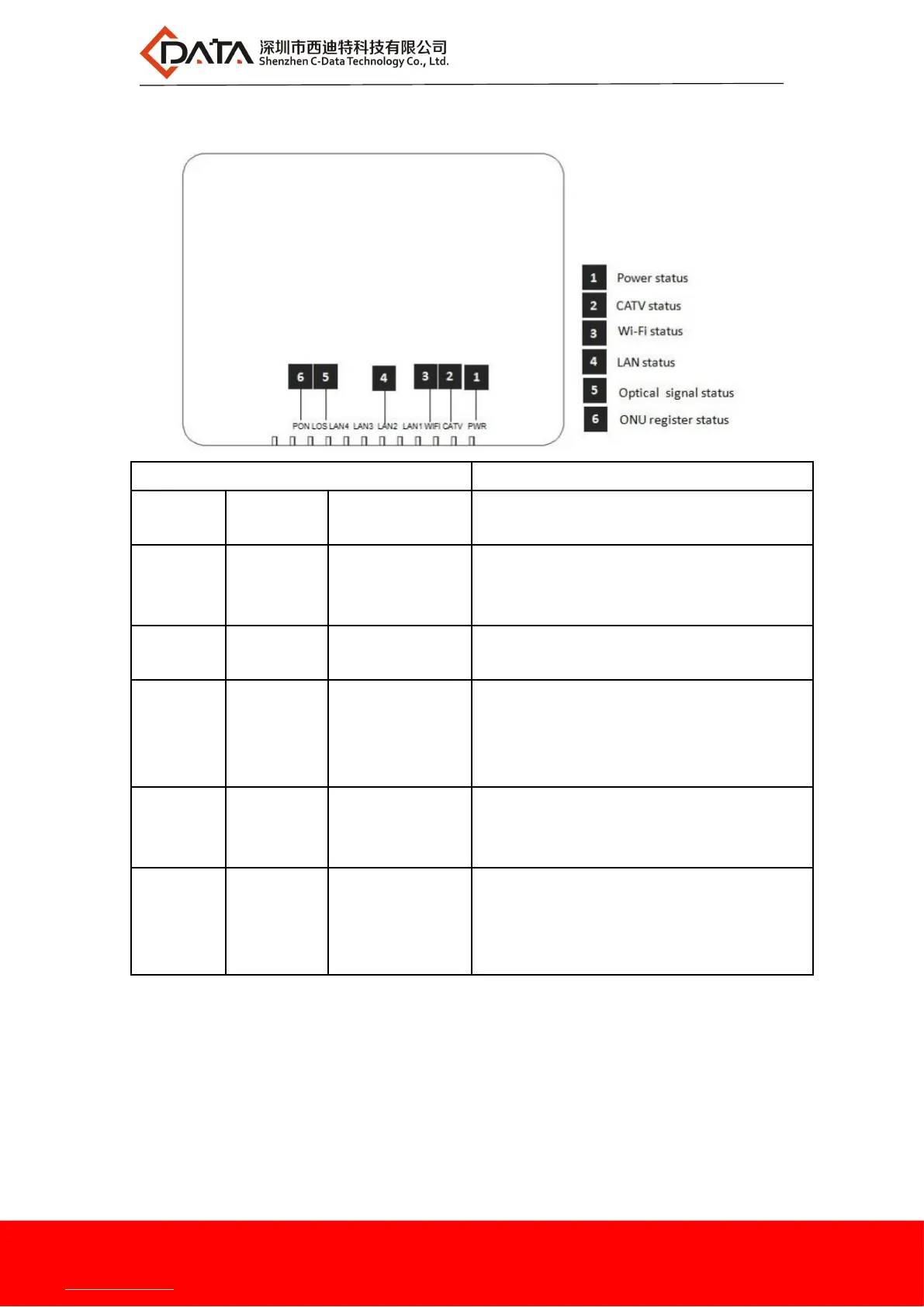

2.4 LED Description
Indicator
Description
1
PWR
Power status
On: The ONU is power on;
Off: The ONU is Power off;
2
CATV
CATV port status
On
：
CATV optical normal
（
>-9dBm
）
Off：The CATV signals are not received
（<-9dBm）
3
WIFI
WIFI
Blinking：Data is being transmitted
On
：
Wi-Fi function Opens
4
LANn
LAN port status
On: Ethernet connection is normal;
Blinking: Data is being transmitted
through the Ethernet port;
Off: Ethernet connection is not set up;
5
LOS
GPON optical
signals
On: Optical power lower than receiver
sensitivity ;
Off: Optical in normal
6
PON
ONU Register
On: Success to register to OLT;
Blinking: In process of registering to
OLT;
Off: In process of registering to OLT;
2.5 Device Connection
 Connect the fiber: Insert the SC fiber connector into the PON connector on the rear
panel of the ONU.
 Connect the Ethernet cable: Connect the RJ-45 Ethernet cable to any LAN port and each
home device, that is, the computer, IPTV set-top box, and so on.

Connect coaxial cable: Connect the coaxial cable to the RF connector of the ONU.
