A-5cab Produkttechnik GmbH & Co KG
Pin 9
Pin 15
Pin 8
Pin 1
1
Pin Signal Direction System Function User Function
1 XSTART Input Start signal
2 XFEH Input External error
3-
4 XESP Output Label in dispense position Control bit 3
5 XEDG Output No existing print job Control bit 1
6 XDNB Output Printer is not ready Control bit 2
7 XEDST Output Print of a label has started Control bit 0
8 GND (Output) Ground (0V)
9 RXSTART Input Start signal (revers line)
10 RXFEH Input External error (revers line)
11 -
12 GND (Output) Ground (0V)
13 STA Input Start signal is active
14 RÜL Output Revers line (for all output signals)
15 24P (Output) Operating voltage +24V, Si T 200mA
Pin Assignment of the Peripheral Interface
For use in a network environment or with a switch, the present sensor is
equipped with a peripheral interface to allow control of the dispensing process.
The interface has a 15 pin SUB-D connector (1).
Appendix A - Operation in Peel-off Mode

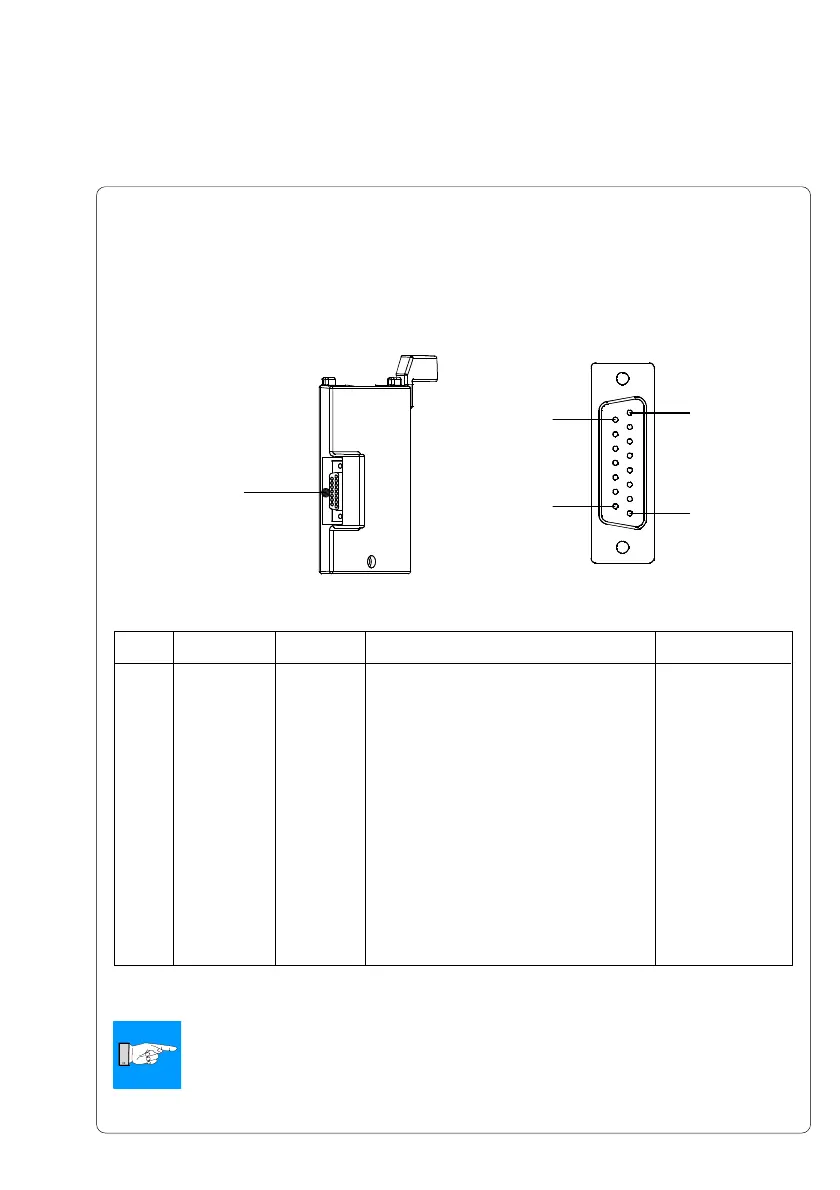

Fig. A-2 Peripheral Interface
Table Pin Assignment of the Peripheral Interface
NOTICE !
The description of the system functions is included in this manual.
For more information about the user functions see the Programming
Manual (Commands x and X).
