28 xGenConnect Installation and Programming Guide
Installing NXG-8(E)-CB panel / NX-003-CB housing

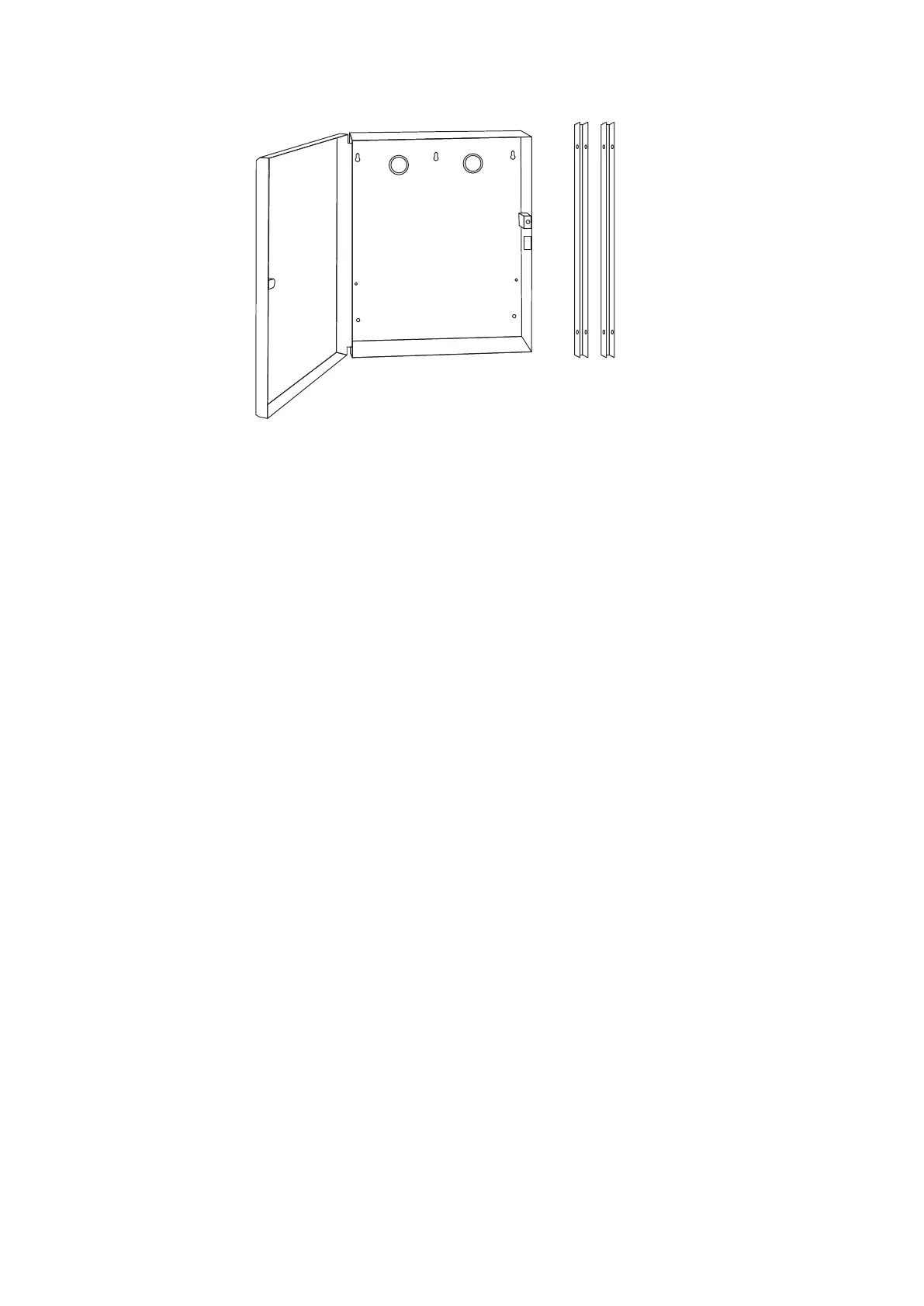

The large metal housing includes a tamper switch and a set of stand-offs and can
be used for those installations where additional xGenConnect zone and/or output
expanders are required or in case a larger backup battery is required.
Note: Using stand-offs is not compliant with EN 50131-1 and INCERT.
The enclosure should be installed in accordance with EN 50131-1 Environmental
Class II to provide operating conditions within:
• Temperature range: −10 to +55°C.
• Humidity range: Average 93% relative humidity, non-condensing
