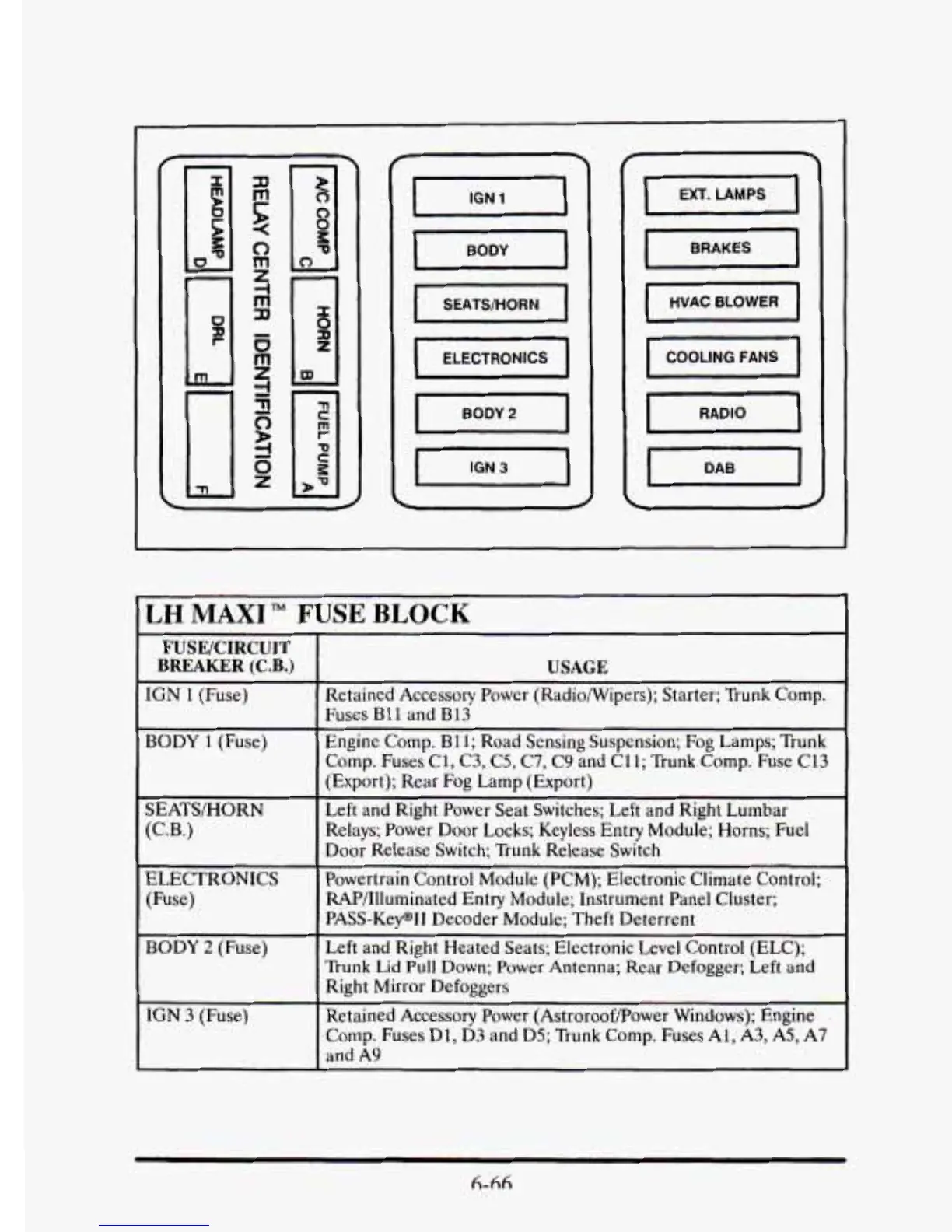

-r-
-
LH
MAXI
FUSE
BLOCK
FUSE/CIRCUIT
BREAKER
(C.B.)
IGN
1
(Fuse)
BODY
1
(Fuse)
SEATSIHORN
(C.B.)
ELECTRONICS
(Fuse)
BODY
2
(Fuse)
IGN
3
(Fuse)
USAGE
Retained Accessory Power (Radiowipers); Starter;
Trunk
Comp.
Fuses
B11
and
B13
Engine Comp.
B11;
Road Sensing Suspension; Fog Lamps; Trunk
Comp. Fuses
C1,
C3, C5, C7, C9 and
C11;
Trunk
Comp.
Fuse C13
(Export); Rear Fog Lamp (Export)
Left and Right Power Seat Switches; Left and Right Lumbar
Relays;
Power
Door
Locks; Keyless
Entry
Module; Horns;
Fuel
Door Release Switch;
Trunk
Release Switch
Powertrain Control Module
(PCM);
Electronic Climate Control;
RAP/llluminated Entry Module; Instrument Panel Cluster;
PASS-KeyW Decoder Module;
Theft
Deterrent
Left and Right Heated Seats; Electronic Level Control (ELC);
Trunk
Lid Pull Down; Power Antenna; Rear Defogger;
Left
and
Right Mirror Defoggers
Retained Accessory Power (AstroroofPower Windows); Engine
Comp. Fuses
Dl,
D3 and D5; Trunk Comp. Fuses Ai, A3,
A5,
A7
and A9
6-66
