Us e r 's GU i d e — 57
6. Calculate Center-to-Center Spacing and the x and y
coordinates:
b
(Center-to-Center Spacing) OC-OC 3.0311 INCH
b
X-01 11.6445 INCH
b
Y-01 15.5985 INCH
b
X-02 8.6594 INCH
b
Y-02 16.1249 INCH
b
X-03 9.6961 INCH
b
Y-03 13.2766 INCH
b
DIA
3.5
INCH
b
Xoc
10 INCH
b
Yoc
15 INCH
b
ANGLE
20°
rIgHT TrIaNglE FuNcTIONS
(NOT AVAILABLE ON MODEL 4086)
With the Machinist Calc Pro, you can easily solve Right Triangle
problems by simply entering two of four variables: Adjacent,
Opposite, Hypotenuse or Angle.

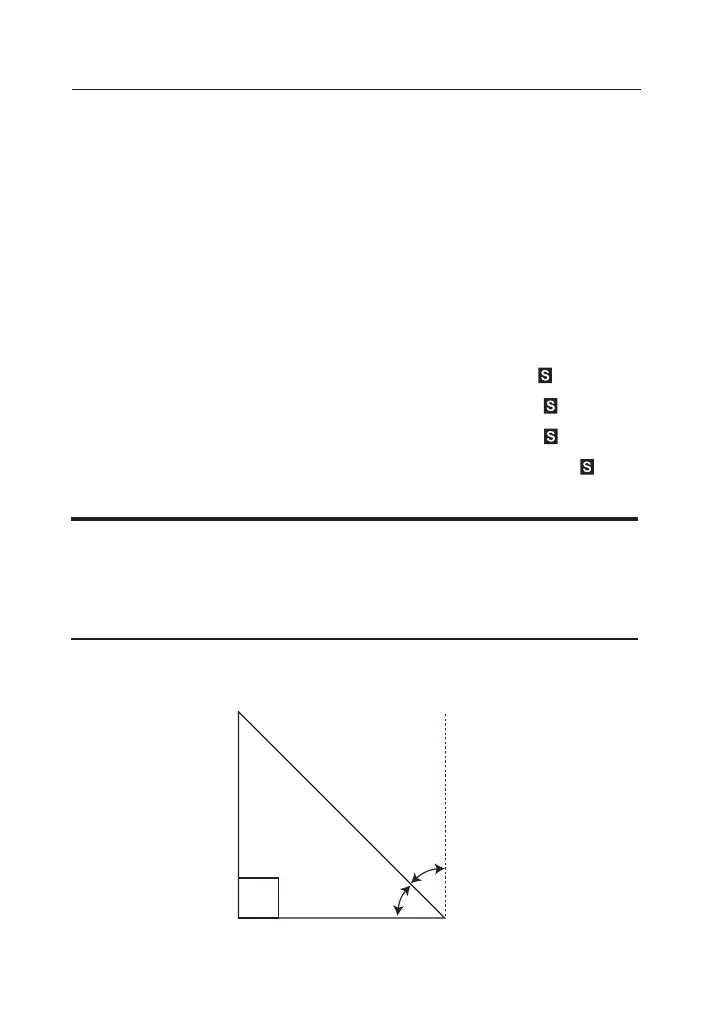

Right Triangle – Based on Adjacent and Opposite Legs
Calculate the Hypotenuse, Angle and Adjacent Angle of a right triangle
with an Adjacent Leg of 3 Inches and an Opposite Leg of 4 Inches:
Opposite
Leg: 4
Hypotenuse
A
B
Adjacent
Leg: 3
(cont'd)
KEYSTROKE DISPLAY
