CalderaSpas Niagara - KAUAI DIMENSIONS

11
80.375” (204cm)
84” (213cm)
61.25”
(156cm)
5.5” (14cm)
5.5”
26”
(66 cm)
29”
(74 cm)
65”
(165cm)
DOOR
51.25”
(130cm)
NOTE: Watkins Manufacturing Corporation recommends that the KAUAI be installed on a minimum 10 cm thick reinforced concrete pad or structurally sound deck able
to support the “dead weight” found in the spa specification chart.
WARNING: The KAUAI must not be shimmed in any manner.
KAUAI
NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions.
DIMENSIONS

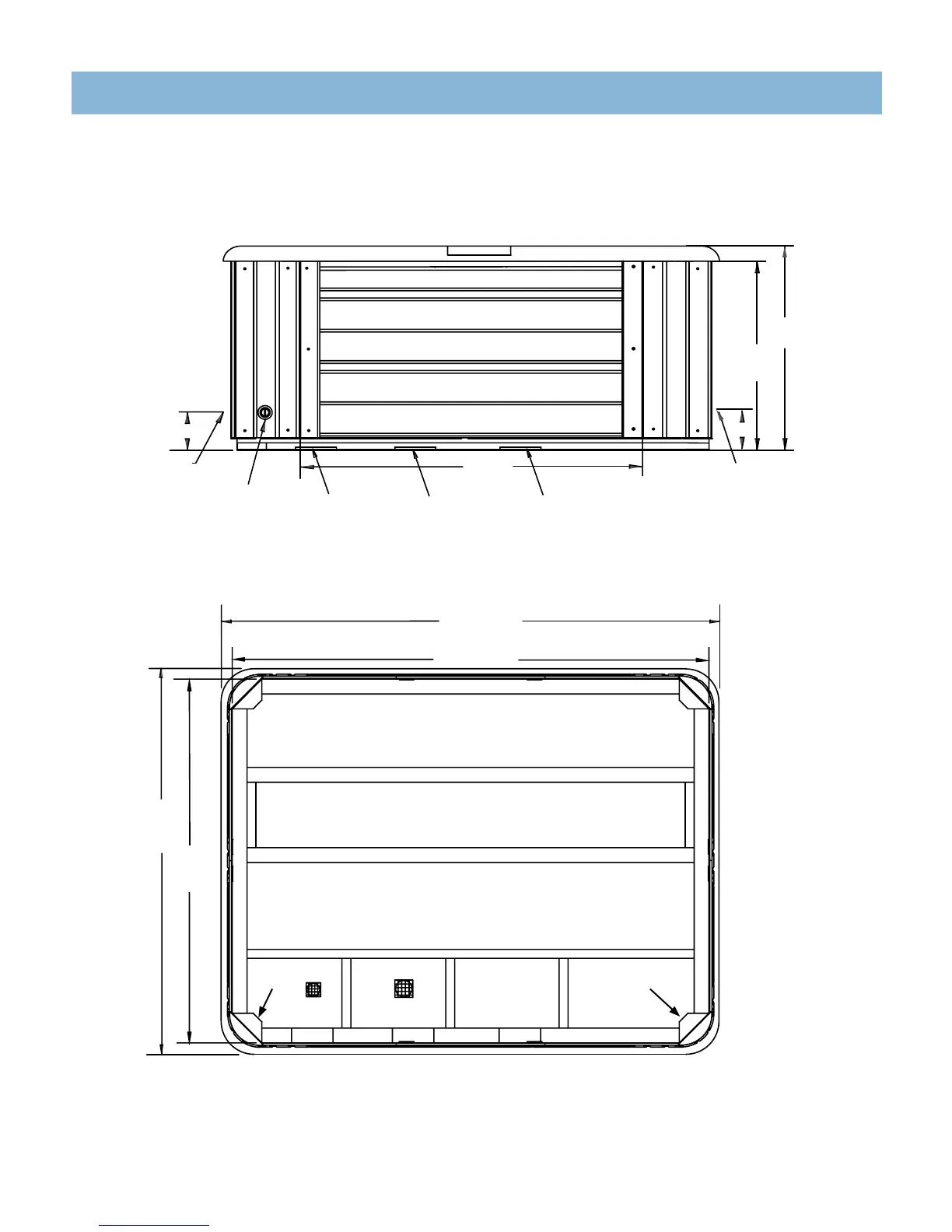

FRONT VIEW
ELECTRICAL CUTOUT
SPA DRAIN
AIR VENTS
DO NOT BLOCK
OVERALL
PEDESTAL
ELECTRICAL
CUTOUT
BOTTOM VIEW
ELECTRICAL
OUTLET
DOOR SIDE
AIR VENT
AIR VENT
ELECTRICAL
OUTLET
OVERALL
PEDESTAL
