CALIENT OCS WebGUI Quick Start Guide
Doc. Part No. 460185-00
July 28, 2015
Rev. 0.2
Page 11 of 63

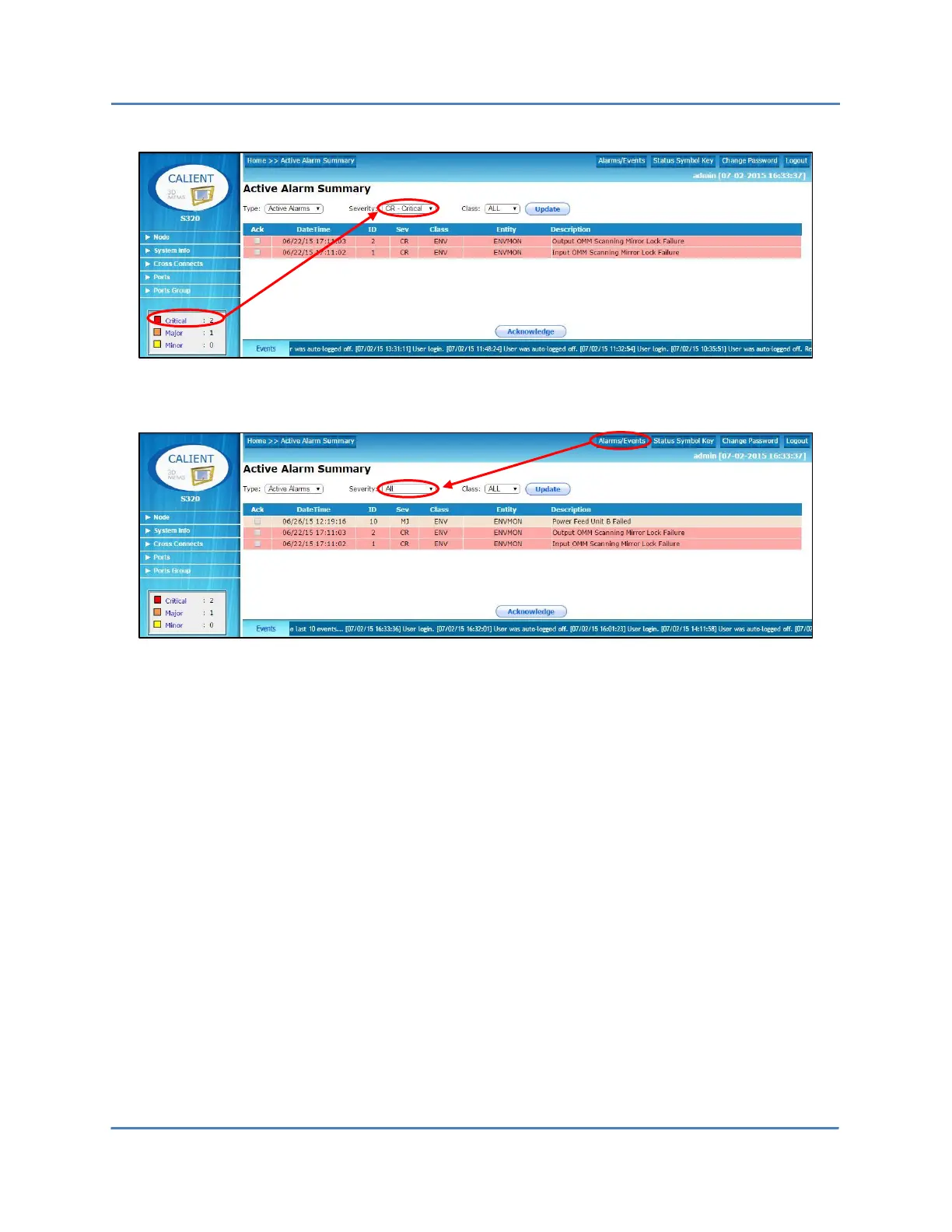

Figure 1 – Active Alarm Summary (Critical Alarms)
Figure 2 – Active Alarm Summary (All Alarms/Events)
Alarms and events can be further filtered by selecting from the different options displayed in
the dropdown menus for the Type, Severity, and Class fields. Click the down arrow () at the
right of each field to display the filtering options for the field.
For the Type: field, menu options include:
 All Logs – lists all alarms (active and cleared), as well as all events
 Active Alarms – lists all currently active alarms
 Alarm Logs – lists all alarms (active and cleared)
 Event Logs – lists all event logs
