California Instruments MX Series - Figure 2-7: MX30-3 Voltage; Current Rating Chart, -HV Option; Figure 2-8: MX45-3 Voltage; Current Rating Chart, -HV Option - Max. Rating; Figure 2-9: Voltage; Current Rating Chart, -HV Option - Derated

User Manual – Rev AY AMETEK Programmable Power
MX Series 29
Note: Output specifications apply below the Current / Voltage rating lines shown in the V/I
rating chart below.

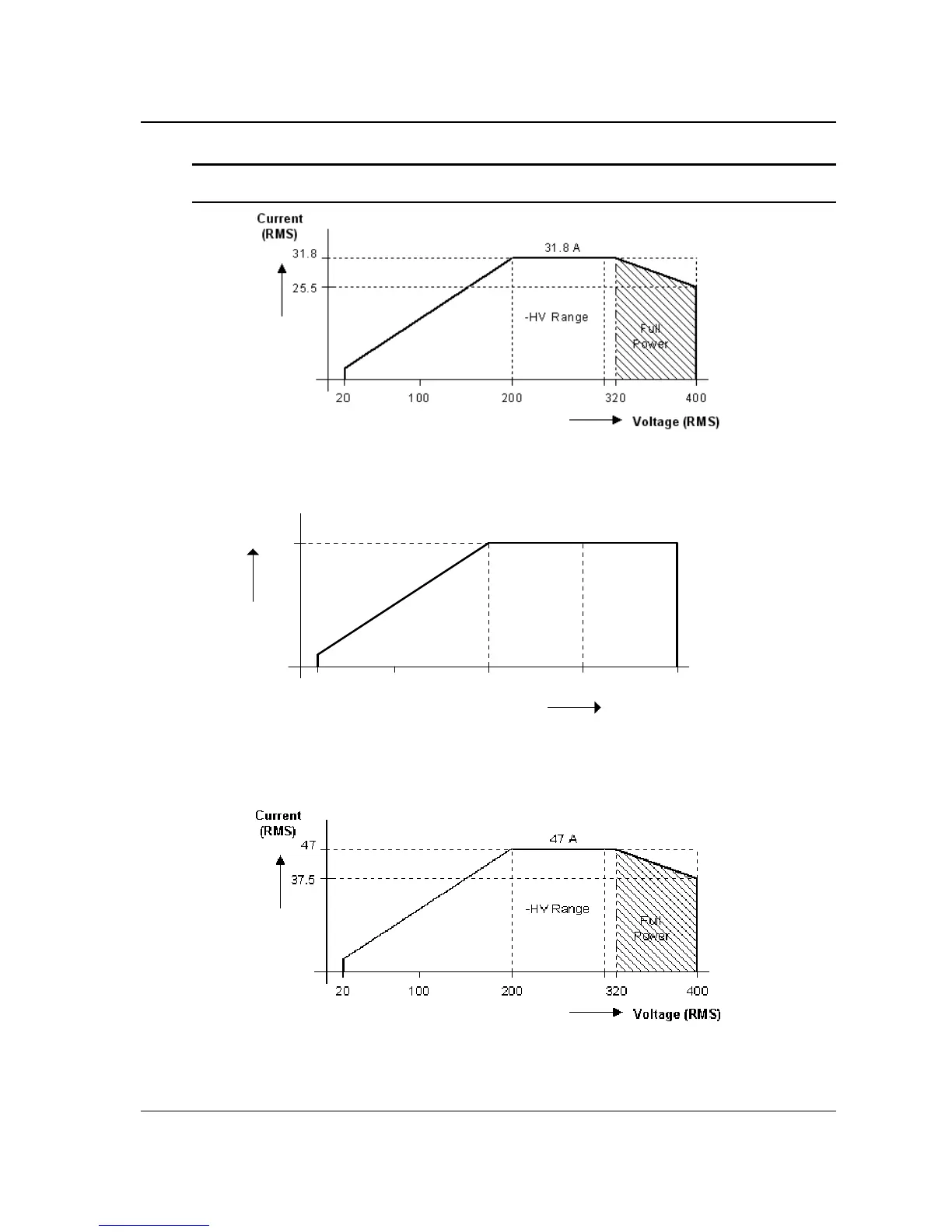

Figure 2-7: MX30-3 Voltage / Current Rating Chart, -HV Option
Current
(RMS)
Voltage (RMS)
100 200 300 400
37.5
37.5 A
-HV Range
20
Figure 2-8: MX45-3 Voltage / Current Rating Chart, -HV Option – Max. Rating.
Figure 2-9: Voltage / Current Rating Chart, -HV Option – Derated.
