3.7.6 USB Interface
A standard USB Series B device connector is located on the rear panel for remote control. A
standard USB cable between the AC Source and a PC or USB Hub may be used.
Note: Use of the USB port to control more than one power source from a single PC is
not recommended, as communication may not be reliable. Use GPIB interface for
multiple power source control.

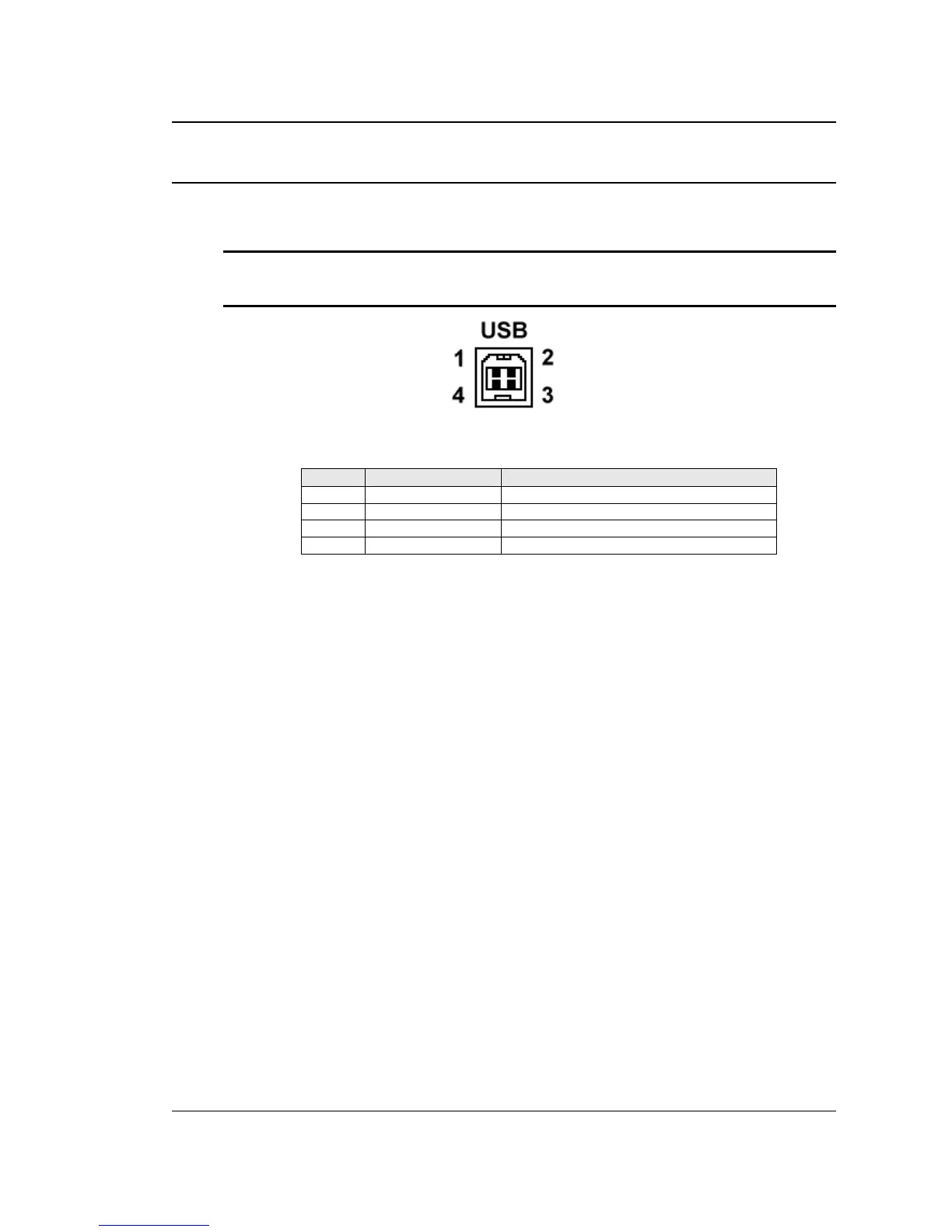

Figure 3-16: USB Connector pin orientation.
Pin
Name
Description
1 VBUS +5 VDC
2
D
-
Data
-
3
D+
Data +
4 GND Ground
Table 3-11: USB Connector pin out.
