Taking into operation
To ensure that queries are made, system statuses are shown
and the monitoring functions remain active, the Check-Panel
must be switched on.
Switching on
Press the main switch (6).
– The main menu is shown.
– The monitoring functions are activated.
– The consumer relay in the electro power supply is activated.
– The system statuses are shown.

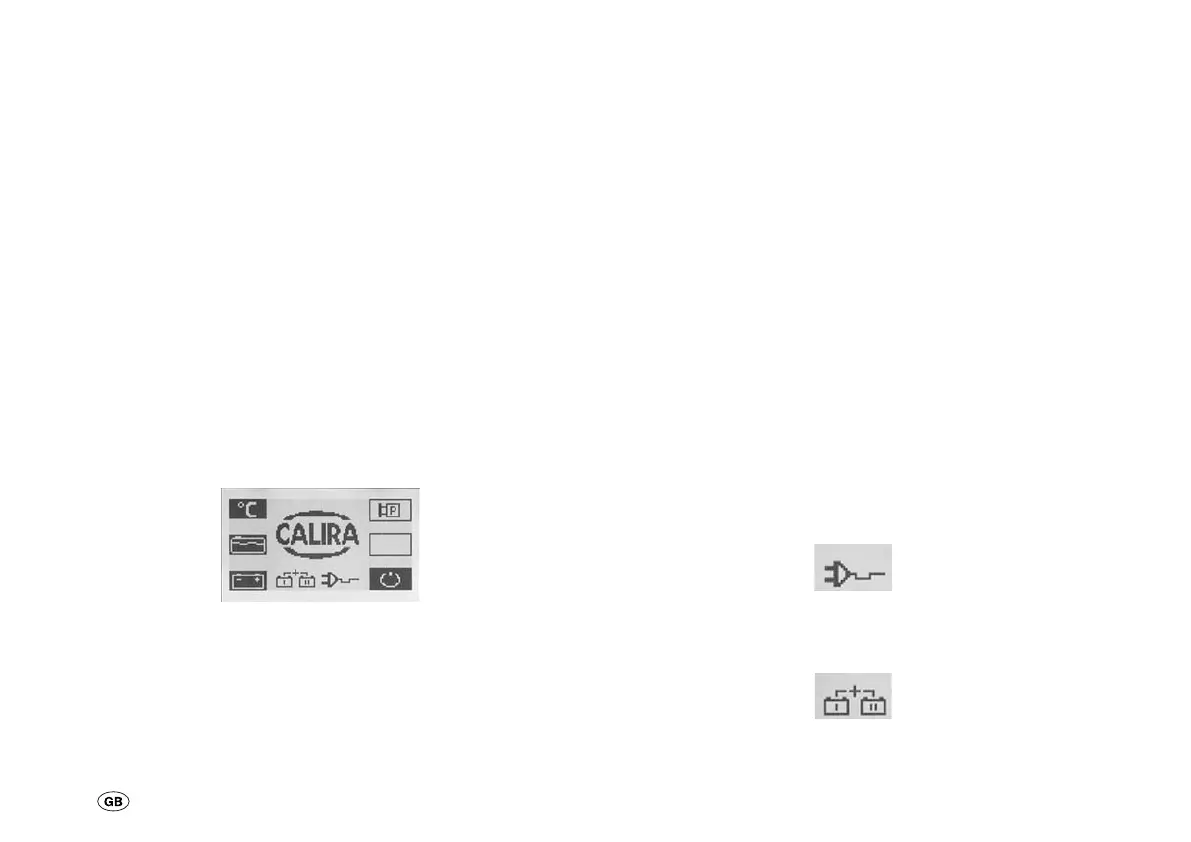

Main menu
After the system start, the main menu, incl. the system sta-
tuses (parallel circuit and / or charging of the batteries via the
230 V mains supply), is shown.
Menu operation
When one of the keys 1 – 3 is pressed, the queries are shown
in a sub-menu.
If e.g. the key (1) is pressed when the battery menu is acti-
vated, the temperature menu is activated.
If the same button is pressed again in an activated menu
(e.g. temperature menu), the main menu is activated again.
If no button is pressed in a sub-menu within the space of
10 seconds, the main menu is activated again.
If the button (4) is pressed, the main menu is shown and the
appropriate function is activated or deactivated.
Displaying the system statuses
The Check-Panel can show 2 system statuses in the main
menu.
– The symbol (8) is shown when the battery is charged via the
230 V mains supply.
– The symbol (9) is shown when battery I and battery II are
switched in parallel
