CALIX 2364 ONT INSTALLATION GUIDE
3 - 2364 ONT I NSTALLATION S TEPS

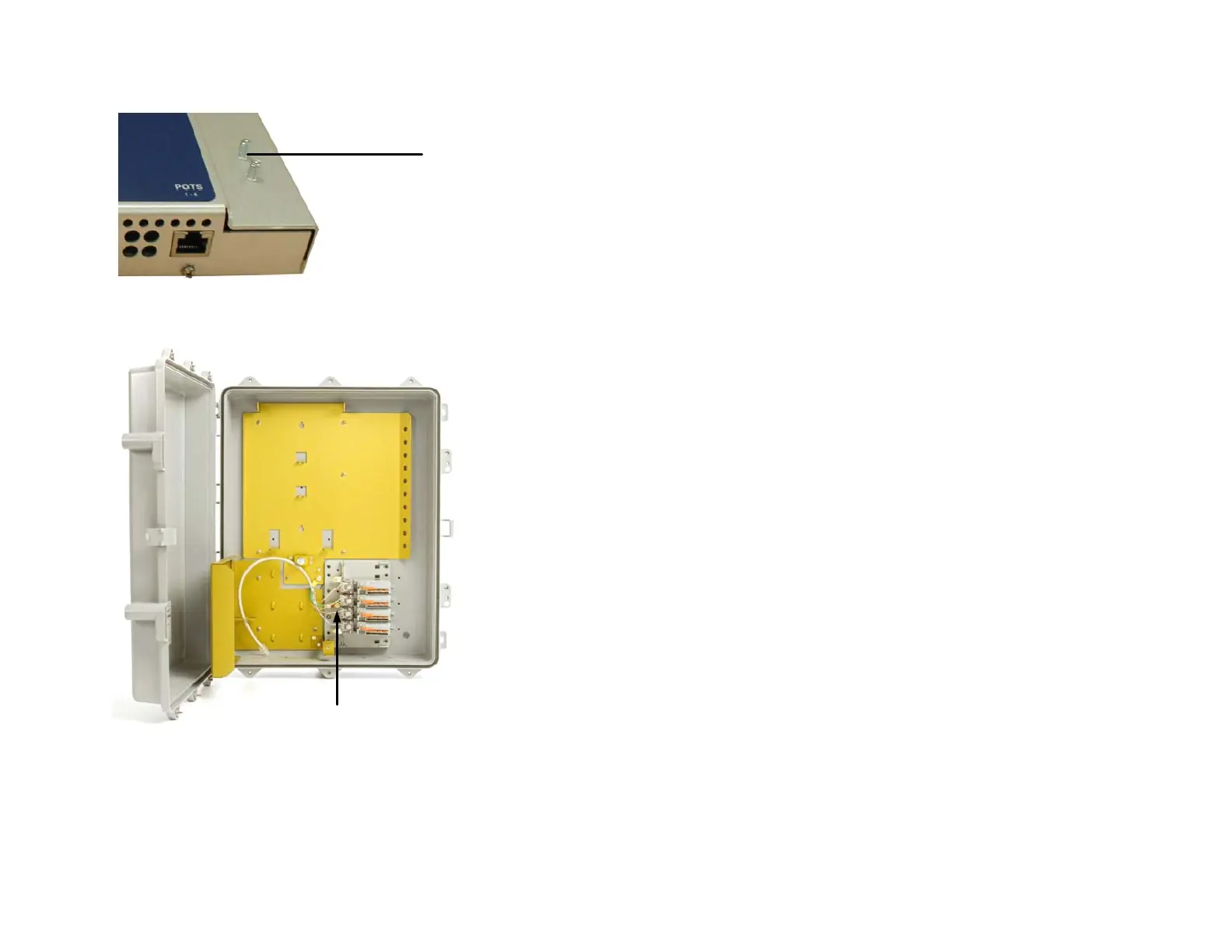

Figure 3-6: 2364 ONT Electronics Panel Grounding Lug
Figure 3-7: 2364 ONT Outer Enclosure Grounding Lug
2. Route the #6 ground wire at 12" below finished grade by the shortest and most direct route to the Grounding Electrode
System at the customer’s premise.
GROUNDING LUG
GROUNDING LUG
