25
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
.

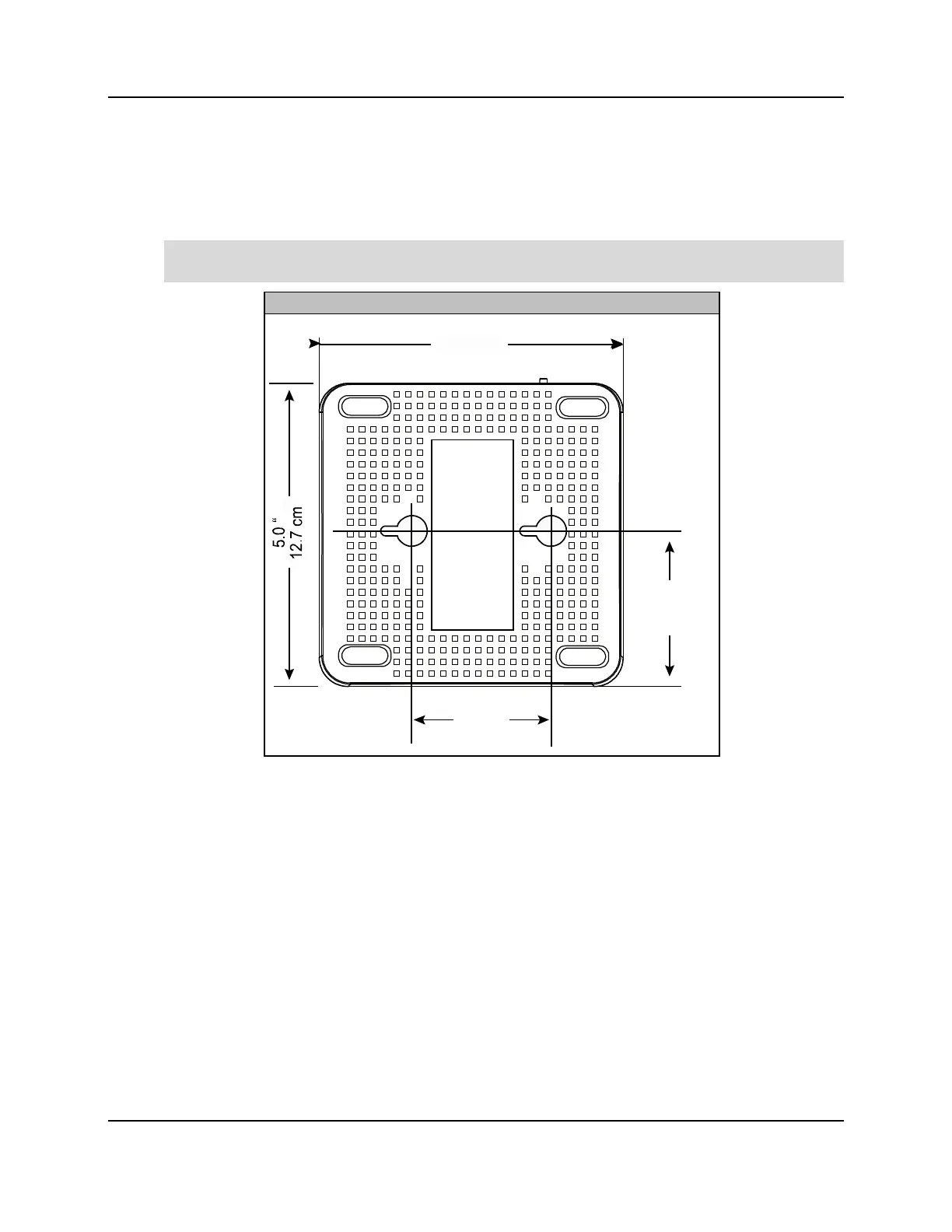

Wall Mounting Dimensions
Dimensions for wall mounting of a GigaSpire BLAST u4 or Mesh BLAST u4m are included
here for reference.
Note: There is no wall mount bracket necessary to mount these devices. The bottom chassis
itself includes appropriate cut-outs and hanger posts to facilitate wall mounting.
5.0 “
12.7 cm
2.5 “
6.35 cm
2.5 “
6.35 cm
8297
Tabletop Mounting the u4/u4m
Any Calix GigaSpire BLAST u4 or u4m can be mounted flat on a tabletop. Four (4)
rubberized feet are pre-installed on the bottom of the unit to provide a non-skid surface
when placing the unit on a table or shelf.
Keep the following information in mind when considering tabletop mounting:
Due to component placement inside the chassis, do not remove the rubber feet that are
installed on the bottom of the unit. Locate the device on the desktop in a location that is
unlikely to be bumped or jostled.
Make sure that the Ethernet cable[s] (if used) and power supply wiring attached to the
GigaSpire are secured properly and out of harms way.
