33
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
.

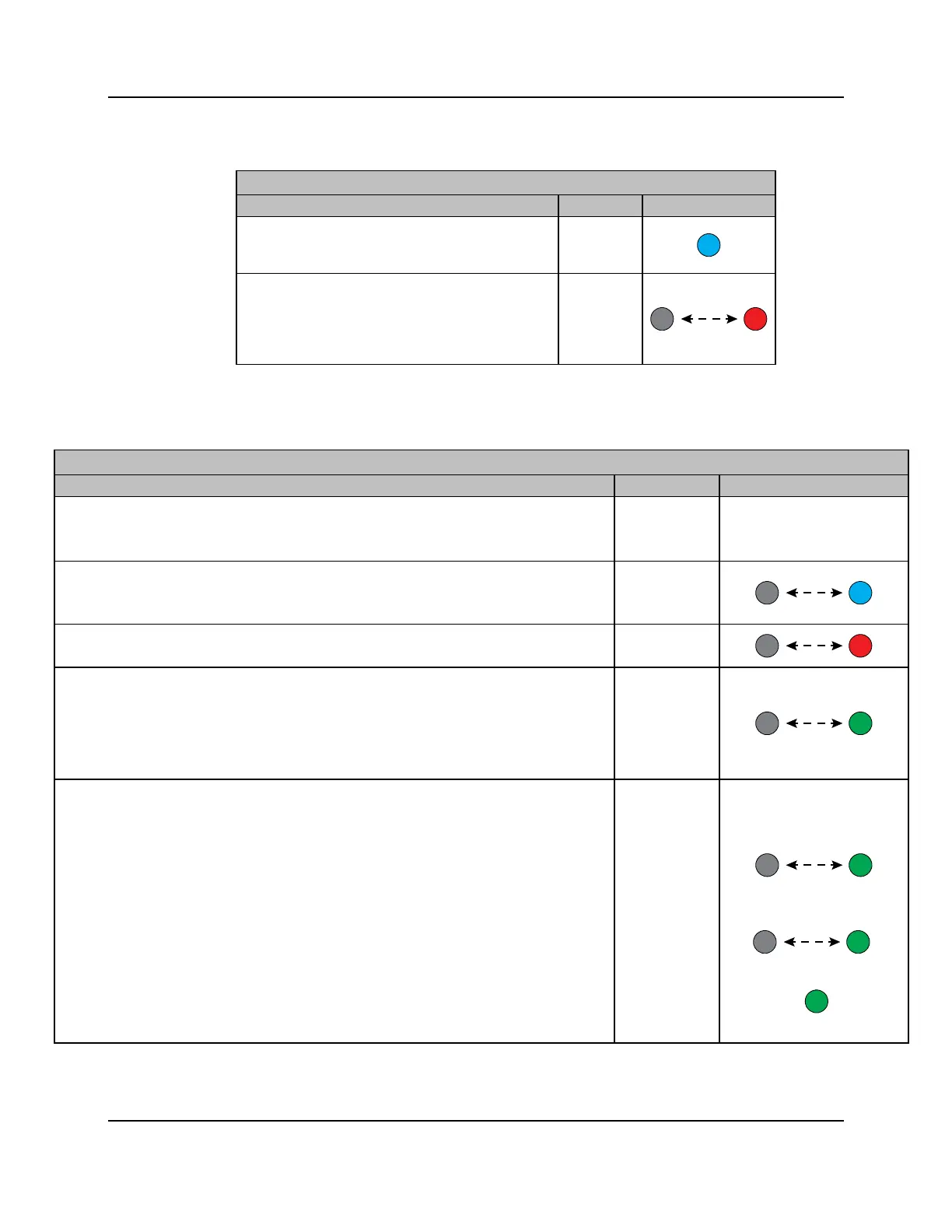

LED States - BLAST LED Status
BLAST LED Status
Description
Colors
Indication
Connect to Internet
Unit has successfully booted up, local services are
up, and connected to the Internet
CYAN
Continuous
Service Failure - No Internet Connection
Unit is in the process of booting up or
services/software is being upgraded
Flashing ever 1 second assuming software can
control the LED
Off & Red
Cycles @
1600 msec
LED States - Mesh Mode
Mesh BLAST u4m with BLAST u4
Description
Colors
Indication
GS202xE Mesh Satellite
(Backhaul pairing cycle can be started by WPS button press [3+ second press] or equivalent EWI
or smartphone app activation)
For backhaul
pairing press
WPS for at
least 3 seconds
N/A
Booting Up or SW Upgrade in Process
Unit is in the process of being boot up or service/software is being upgraded
Flashing every 1 second on cyan color - assuming SW can control the LEDs.
Off and Cyan
(1000 msec)
Boot-up Failure
Unit boot-up failed (if SW can control the LEDs)
Off and Red
(800 msec)
WPS Pressed, Pairing Attempt has Begun
For Satellite/Mesh mode, upon pressing the WPS a single time 3+ seconds, WPS is enabled.
The LED bar begins to flash 0.5 second green/off and continues to do so for up to 120
seconds.
If the Gateway has also initialized WPS during this time, the Satellite can be paired to the
Gateway Wi-Fi radios (5.0 GHz band) thereby creating an association with the Gateway SSID.
Green and Off
(500 msec)
Display Signal Strength (Positioning Strength)
Display strength after any of the following conditions (IP address obtained):
1. Successful pairing completed
2. Re-start completed (and previous pairing with Gateway restored)
3. Re-association of link with the Gateway after lost link (e.g., Gateway was powered down
then restored)
If the pairing is successful, following will be the behavior of the WPS/Strength LED:
If the Satellite is too close from Gateway but still connected, LED will light up fast blinking
green (250 msec).
* If the Satellite is too far from Gateway but still connected, LED will light up slow blinking
green (1000 msec).
* When the Satellite is at an ideal location from Gateway the LED will light up steady green.
* After 60 seconds, the light bar begins to reflect Gateway status (not shown in the illustration
below). For example, cyan for connected to the Internet
Gray and Green
Too Close: Fast Blink (250
msec)
Too Far: Slow Blink (1000
msec)
Ideal: Steady State
