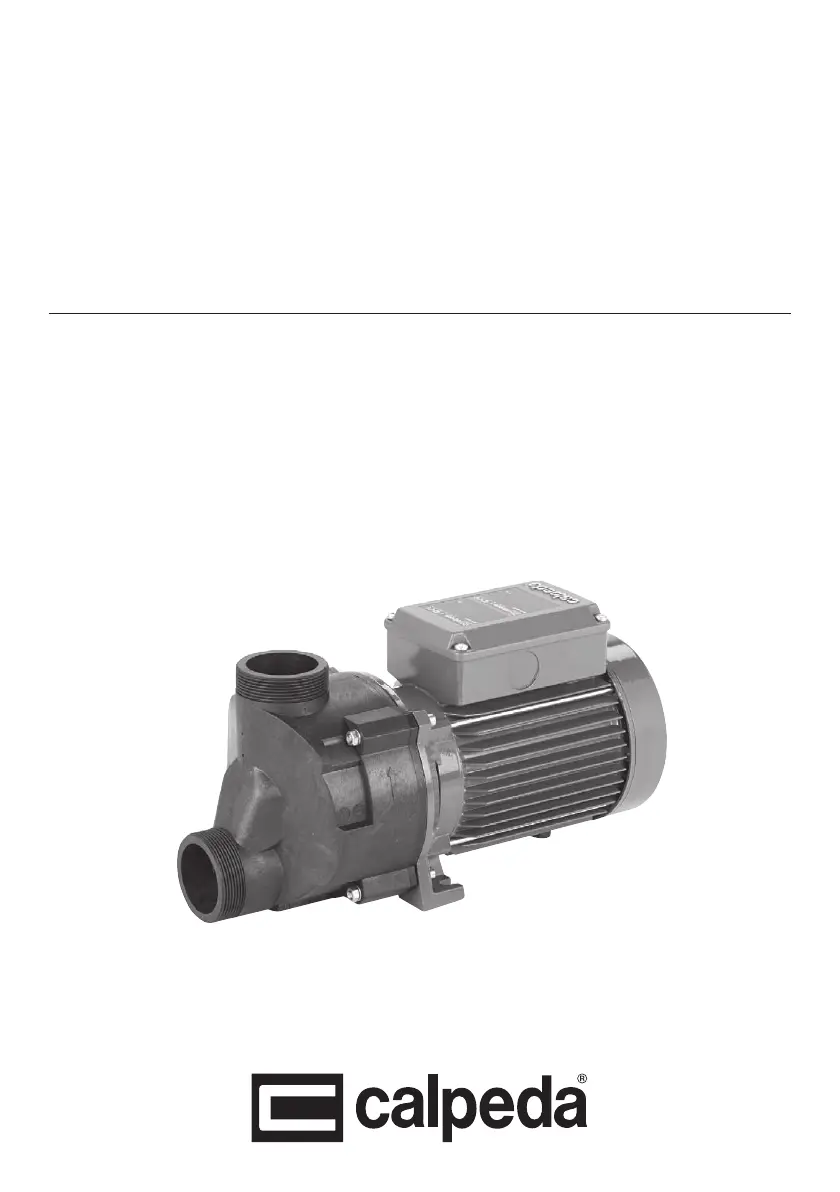

Calpeda SPA - User Manual

Other manuals for Calpeda SPA

Original Operating Instructions16 pages

Questions and Answers

J
Jennifer DonovanAug 1, 2025
How to fix a Calpeda Water Pump motor that doesn't start?
- R
  Ryan HollowayAug 1, 2025
  If your Calpeda Water Pump motor doesn't start, first ensure the mains frequency and voltage match the electrical characteristics on the indicator plate. Then, verify that the power supply cable is correctly connected to the terminal board and the thermal overload protection is properly set. Also, check the fuseboard connection. If these steps don't resolve the issue, the engine may be malfunctioning, requiring repair or replacement by an authorized service center.
K
kramerkennethAug 5, 2025
What to do if Calpeda SPA functions but no water comes out?
- B
  Brian QuinnAug 5, 2025
  If your Calpeda Water Pump isn't producing water, check for air infiltration from suction tube connections, drain plugs, the pump filling point, or suction pipe gaskets and ensure they are sealed tightly. Also, verify the foot valve isn't blocked and the suction pipe is fully immersed in the liquid. Clean or replace the bottom valve, and ensure the suction pipe is suitable for the application. Lastly, check if the suction filter is blocked and clean or replace it if necessary.
B
Brandon MorganAug 10, 2025
Why is my Calpeda SPA Water Pump making noise and vibrating?
- I
  ijacksonAug 10, 2025
  Noise and vibrations in your Calpeda Water Pump can be caused by several factors. Check for obstructions in the rotor. If there are no obstructions, examine the bearings for wear and replace them if needed. Ensure the pump and pipes are firmly attached. If the flow is too strong for the delivery pipe's diameter, use larger pipes or reduce the pump flow. If the pump is functioning in cavitation, reduce the flow by adjusting the feeder gate and/or using pipes with a bigger internal diameter. Check that the mains voltage is correct. If necessary, the unit must be re-aligned.
B
bowersjulieAug 21, 2025
What to do if Calpeda SPA Water Pump is blocked?
- Q
  qjohnsonAug 21, 2025
  If your Calpeda Water Pump is blocked, and it has been inactive for a long time, rust may have formed inside. Try to start rotation directly from the pump shaft or from the joint, remembering to turn off the electricity supply first. Alternatively, there might be solid objects in the pump rotor. If possible, dismantle the pump casing and remove any solid foreign bodies inside the rotor. Also, check if the bearings are seized; if so, replace them.
S
sarah83Aug 26, 2025
Why is my Calpeda SPA Water Pump leaking from the mechanical seal?
- M
  meltonmatthewAug 26, 2025
  If you notice leakage from the mechanical seal of your Calpeda Water Pump, it could be due to several reasons. If the mechanical seal has functioned when dry or has stuck, it needs replacement. Similarly, if the seal is scored by abrasive parts in the liquid or is unsuitable for the application, replacement is necessary. For a slight initial drip during filling or the first start-up, allow time for the seal to adjust to the shaft's rotation. If the problem persists, further inspection or seal replacement may be required.
D
Dennis RuizNov 14, 2025
How to resolve insufficient flow in a Calpeda Water Pump?
- S
  Sharon VasquezNov 14, 2025
  If your Calpeda Water Pump has insufficient flow, ensure that the pipes and accessories are suitable for the specific application. Clean the rotor and install a suction filter to prevent foreign bodies from entering. If the rotor is deteriorated or worn, replace the rotor and the pump casing. If the liquid pumped is other than water and has excessive viscosity, the pump is unsuitable. Invert the electrical connections on the terminal board or control panel if the direction of rotation is incorrect. Partially close the feeder gate and/or reduce the difference in level of the pump and the liquid being aspirated if the suction head is excessive in relation to the suction capacity of pump. If the suction pipe is too long, bring the pump closer to the suction tank so as to use a shorter pipe, o...

Summary

General Information

Symbols

Explanation of symbols used in the manual for understanding warnings and notes.

Technical Description

Intended Use

Improper Use

Technical Features

Technical Data

Lists key technical specifications including speed, protection rating, voltage, and frequency.

Operating Conditions

Safety

General Provisions

General safety indications and requirements for users and technicians.

Safety Devices

Installation

Ambient Requirements and Installation Site Dimensions

Installation

Electrical Connection

Guidelines for safe and compliant electrical hookup by qualified personnel.

Startup and Operation

Preliminary Checks Before Start-up

First Starting

Crucial steps and warnings for initial pump startup, including avoiding dry running.

Switch Off of the Pump

Maintenance

Routine Maintenance

Basic maintenance tasks that should be performed regularly, emphasizing power disconnection.

Dismantling the Pump

Re-assembly

Troubleshooting

Motor Does Not Start

Identifies common causes and remedies when the motor fails to start.

Pump Blocked

Addresses issues related to the pump being seized or blocked, providing potential solutions.

Pump Functions But No Water Comes Out

Diagnoses problems causing the pump to operate without water delivery.

Insufficient Flow

Noise and Vibrations from the Pump

Leakage from the Mechanical Seal

Minimum Cross-Sectional Area of Conductors

Calpeda SPA Specifications

General

Maximum ambient temperature	+40 °C
Category	Water Pump
Type	Self-priming centrifugal pump
Applications	irrigation, pressure boosting, industrial applications
Model	SPA
Frequency	50 Hz
Inlet/Outlet Size	1"
Material	cast iron
