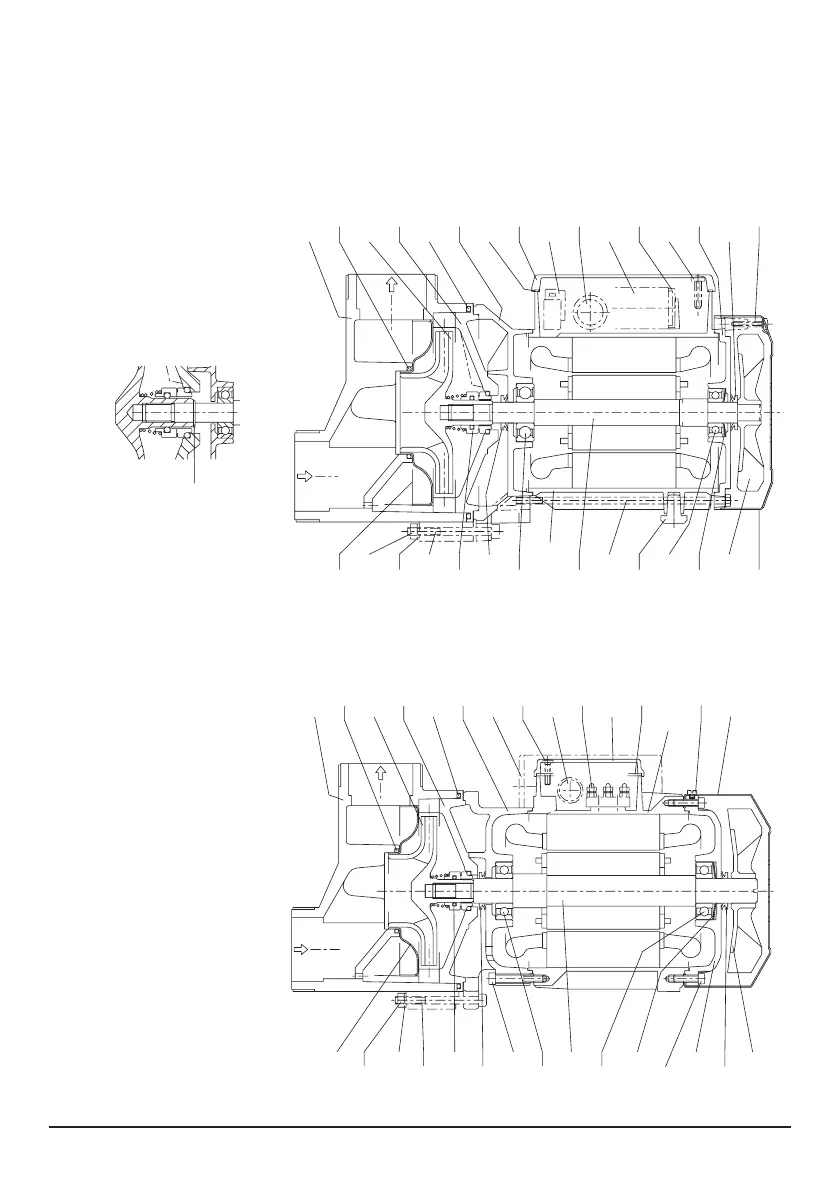

12.4. Disegno per lo smontaggio ed il rimontaggio
Drawing for dismantling and assembly
Zeichnung für Demontage und Montage
óÂÚÂÊ ‰Îfl ‰ÂÏÓÌڇʇ Ë Ò·ÓÍË
3.94.036.1
28.12
4.94.011
4.94.012
92.00
3.94.056
90.04
81.04
82.00
98.04
94.02
94.00
76.04
76.54
98.00
98.08
70.00
14.20
27.00
28.00
27.08
14.00
90.00
88.00
82.04
81.00
76.16
92.00
78.00
76.00
73.00
73.08
36.00
14.24
14.29
14.28
27.04
76.50
70.00
14.20
27.00
28.00
27.08
14.00
36.00
14.24
14.29
14.28
27.04
98.04
94.00
98.08
98.00
76.54
76.04
90.00
90.04
76.00
70.20
73.08
82.04
81.00
78.00
73.00
81.04
82.00
88.00
82.08
76.50
(1) Foro di drenaggio
Draining hole
Drainageloch
ДÂ̇ÊÌÓ ÓÚ‚ÂÒÚËÂ
SPA 11
SPA 11, 21/A, 31/A
SPA 41
