Chapter 3: System planning 154
Using the tool, parameters can be updated in order to find a set of values that allows for co-location.
For example, changing the duty cycle of the PMP AP from 70% to 80% makes both equations true, and
there is no longer overlap between one AP transmitting and the other receiving.
Multiple OFDM Access Point Clusters
When deploying multiple AP clusters in a dense area, consider aligning the clusters as shown below.
However, this is only a recommendation. An installation may dictate a different pattern of channel
assignments.

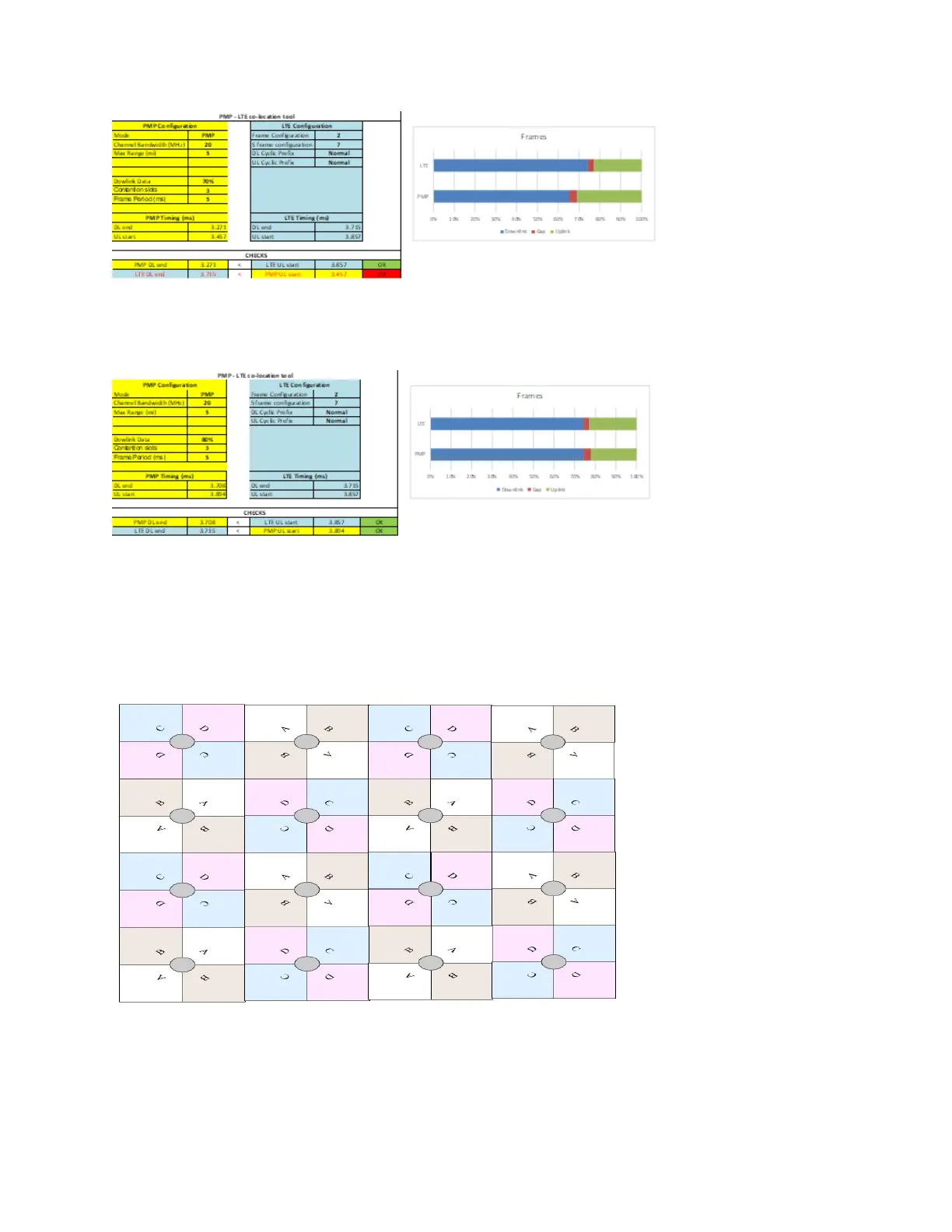

Figure 57 :
Example layout of 16 Access Point sectors (ABCD), 90-degree sectors
An example for assignment of frequency channels is provided in the following table.
