Chapter 5: Installation 231

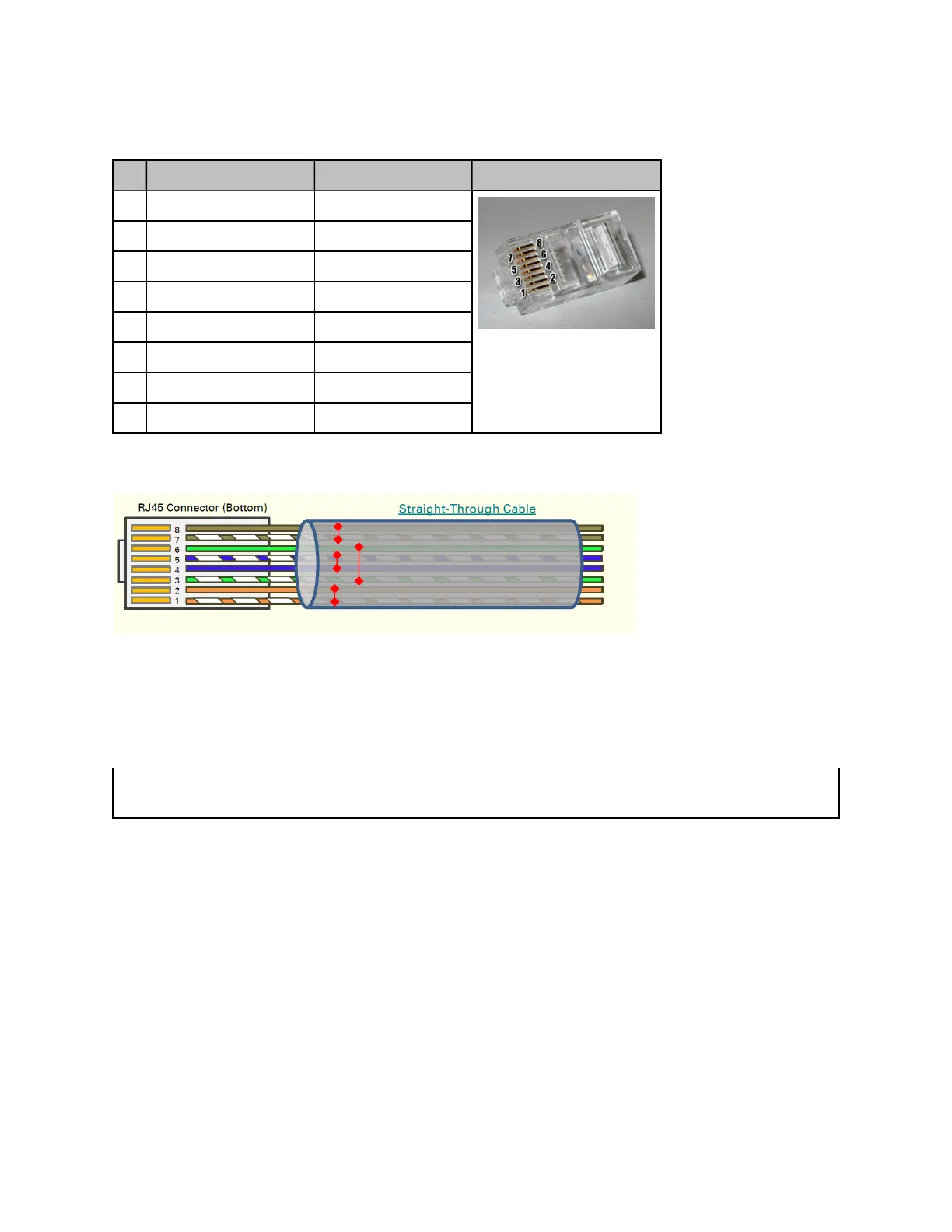

Figure 87 :
RJ45 connector and cable color code
Pin Color (Supplied cable) Color (Conventional) Pins on plug face
1 Light Orange White/Orange
2 Orange Orange
3 Light Green White/Green
4 Blue Blue
5 Light Blue White/Blue
6 Green Green
7 Light Brown White/Brown
8 Brown Brown
Figure 88 :
RJ45 cable
Install the bottom LPU to PSU drop cable
Install the bottom LPU
Install the bottom LPU, ground it, and connect it to the main drop cable.
1 Select a mounting point for the bottom LPU within 600 mm (24in) of the building entry point. Mount
the LPU vertically with cable glands facing downwards.
