Cambium Networks PMP 450 AP Installation Guide

Chapter 5: Installation 239

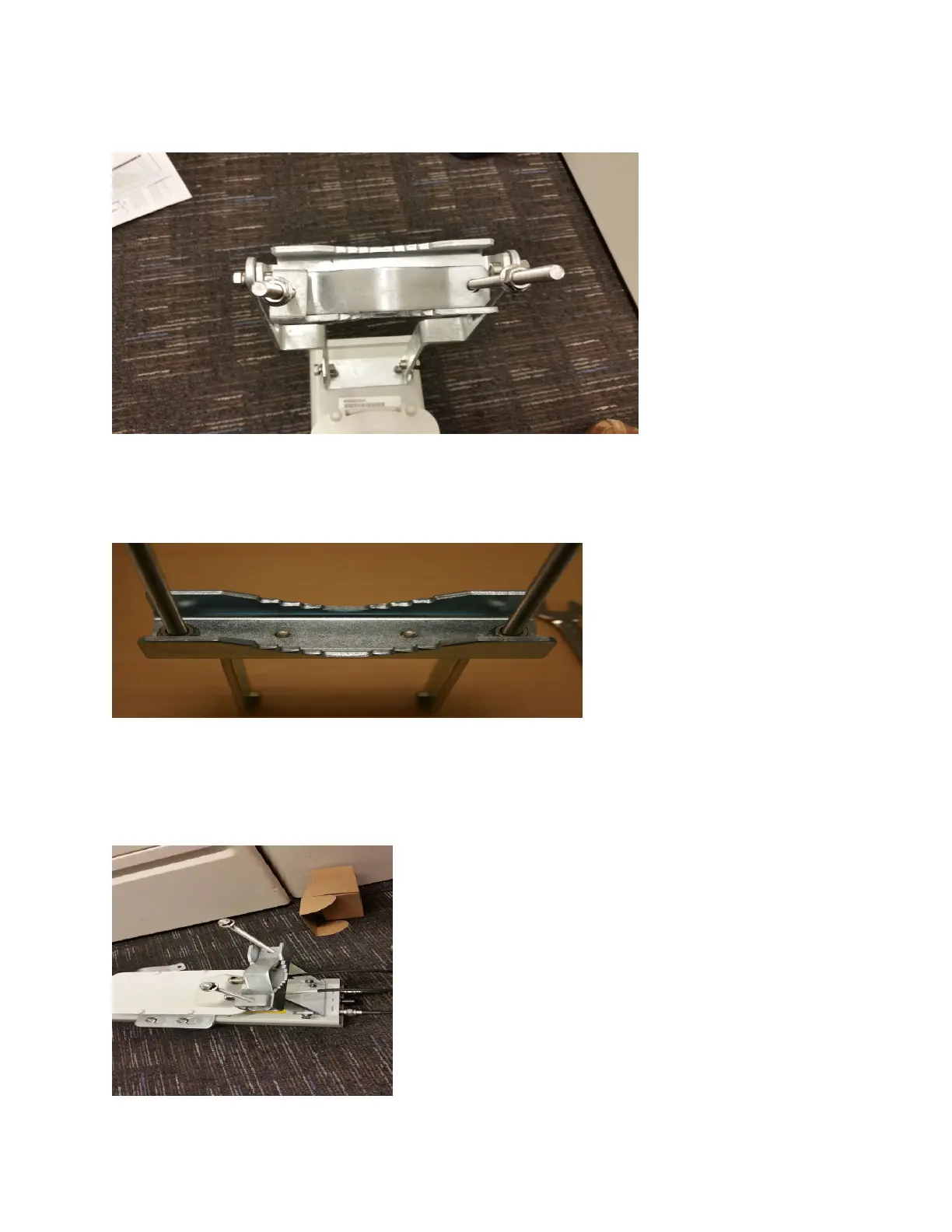

Figure 97 : Assembled upper bracket connected to AP antenna
10. Begin assembling the lower bracket by attaching the (2) 7” hex bolts to the bracket using (2)
serrated flange nuts
Figure 98 : AP Antenna Lower Bracket Assembly
11. Attach the rear strap to the bracket using (2) serrated flange nuts and (1) retaining bracket. Do not
tighten the nuts now. Attach the entire lower bracket to the antenna using (2) hex bolts, (2) flat
washers and (2) lock washers.
Figure 99 : Lower bracket attached to AP antenna
