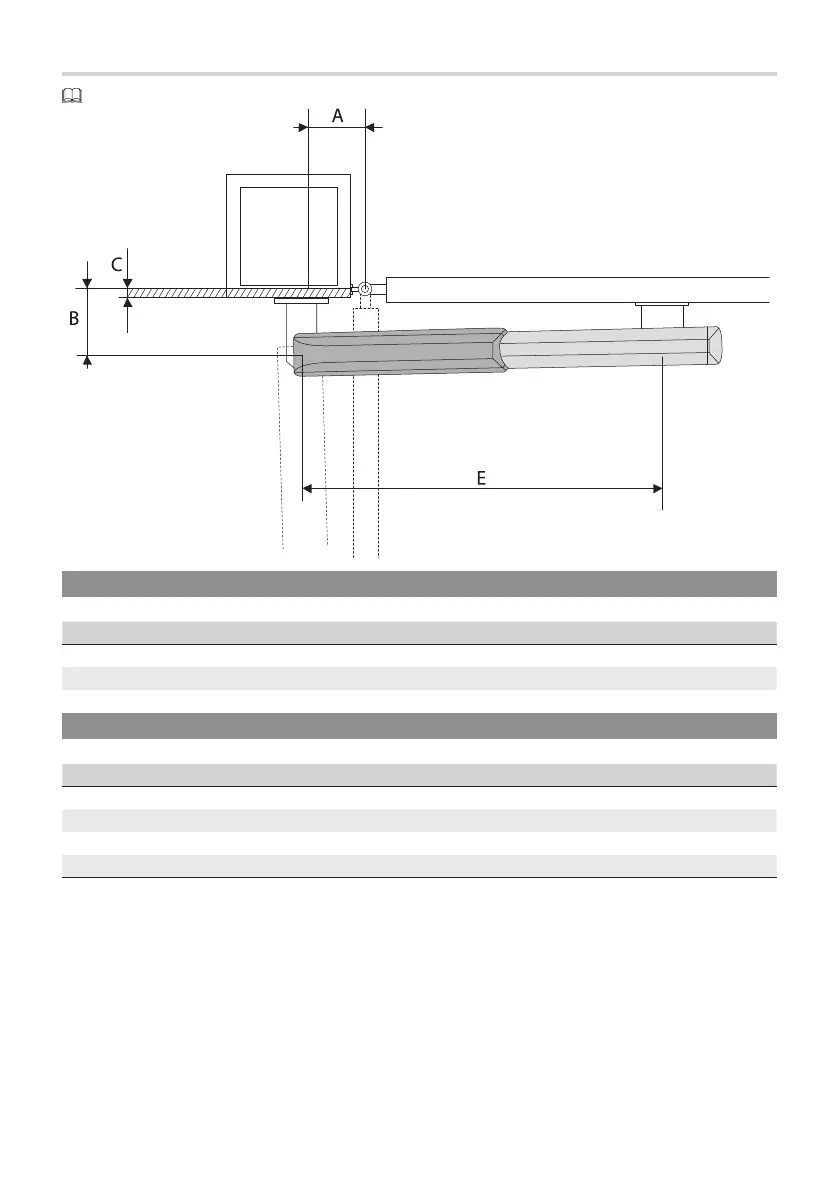

Deciding where to fasten the brackets
Respect the values indicated in the table.
A3000 A3006 A3010 A3100 A3106
Gate-leaf opening (°) Max. C A B E
90 60 130 130 720
120 50 130 110 720
A5000 A5006 A5010 A5100 A5106
Gate-leaf opening (°) Max. C A B E
90 120 200 200 920
120 70 200 140 920
90 120 200 200 920
120 70 200 140 920
