Fastening the brackets
Secure the anchoring plate to the pillar with plugs and screws.
If there is a metal post instead of a pillar, the anchoring plate must be welded to the post.
Weld the post bracket to the anchoring plate.

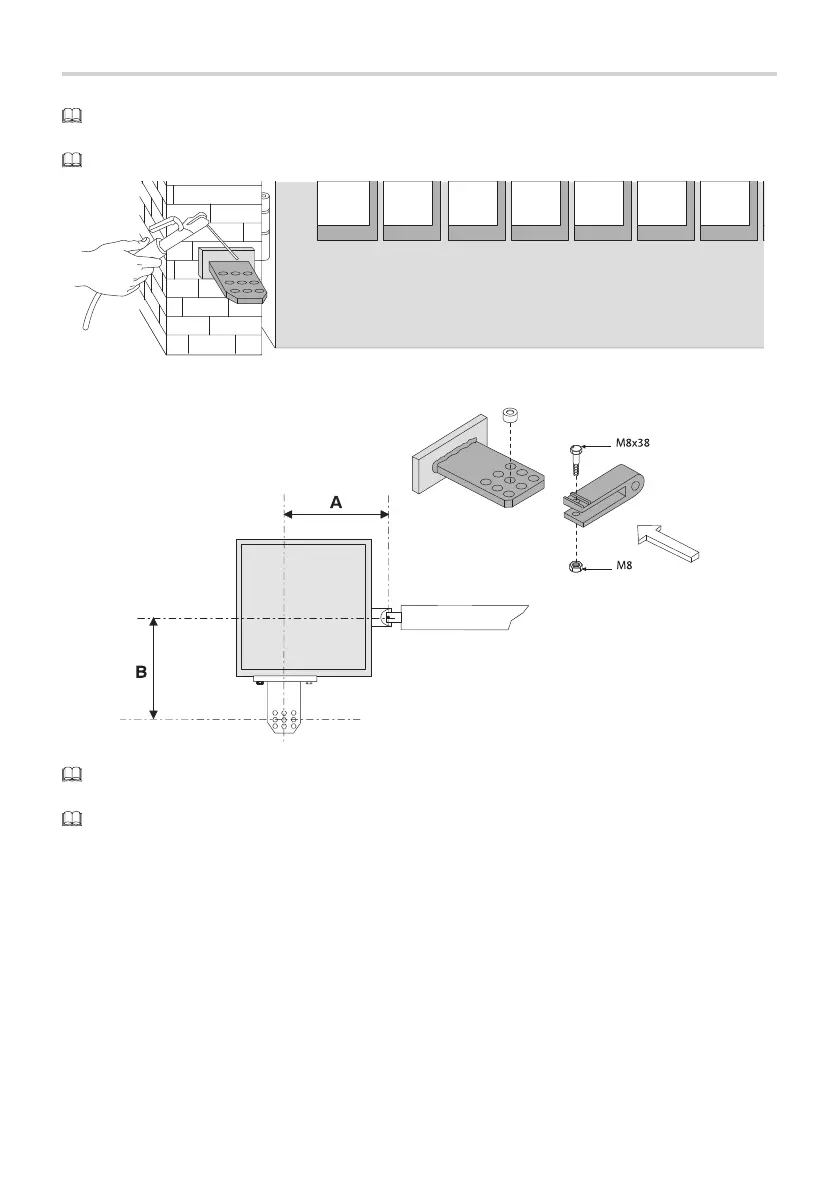

The holes in the pillar bracket allow you to vary the opening angle of the gate leaf.
By increasing measurement B, the opening angle decreases. This decreases the peripheral speed and increases
the motor thrust on the leaf.
By increasing measurement A, the opening angle increases. This increases the peripheral speed and decreases
the motor thrust on the leaf.
