CAME AGT A200K - TARGHA 200 Recessing Side-by-Side; TARGHA 200 Wall Mounting Side-by-Side

󱫀
󱫂
󱫆
󱫄
󱫀 󱫂
Page 11 - Manual FA 01425 - EN - 08/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

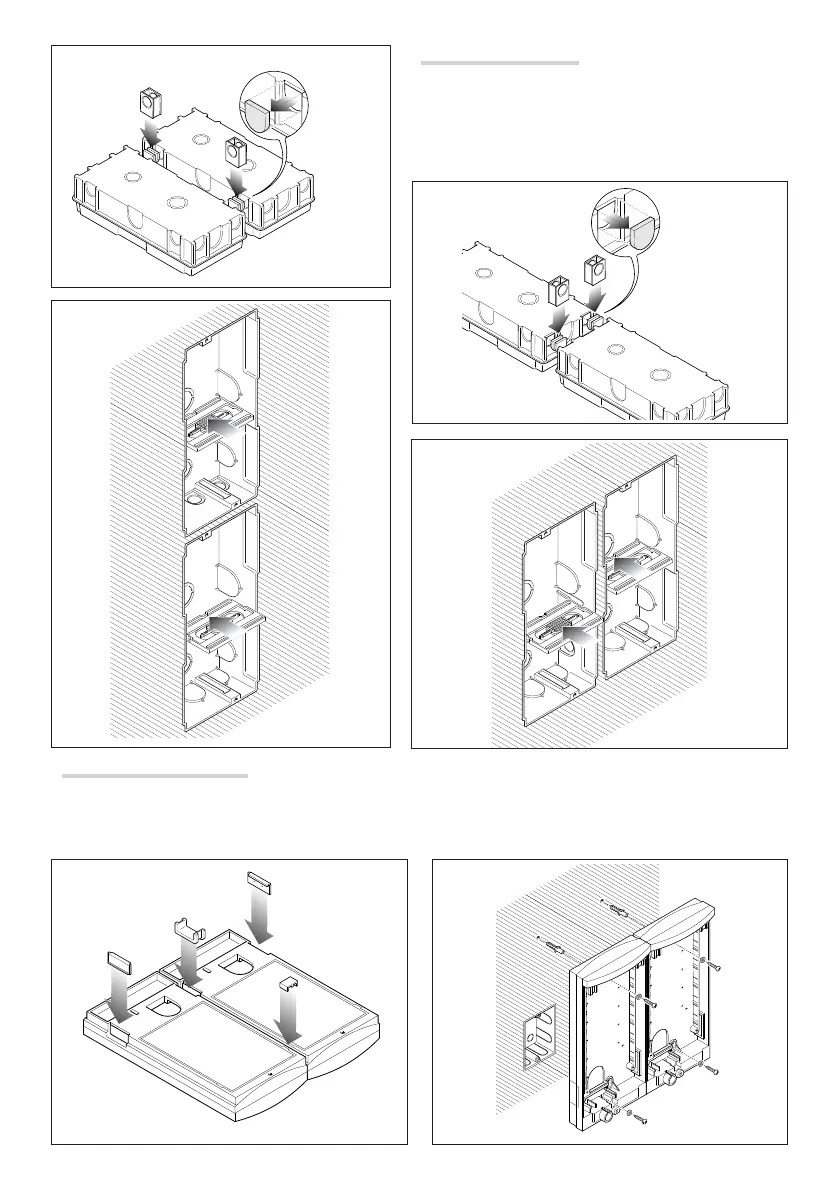

Recessing side by side
To recess boxes side by side horizontally or vertically, remove the
hole covers and insert the cable gland joints 󱫀 󱫂.
The recessed boxes must be walled in fl ush at a suitable height,
using the spacers provided to prevent box deformation 󱫄 󱫆.
Wall mounting side by side
To mount the entry panels side by side horizontally, insert two hole covers into the exposed sides, and inside, the cable gland joint
at the bottom and the joint at the top 󱫀.
Attach the assembled bases to the wall, using the screws and expansion plugs provided 󱫂.
