ACCESS CONTROL
10 11 TS 1 2 3 3P 4 5 7 CX CY
A B
S1 GND
p. 16 - Manual FA01292-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions
Connector for the AF (AF43S or AF868) card, for
controlling the gate via a transmitter.
Connector for the R700 card (for using the transponder
selector or the card reader) or for the R800 card (for using
the keypad selector).
To set the type of selector, see function F14
BLACK
RED
WARNING! For the system to work properly, before fitting any snap-in card (e.g. the AF R800), you MUST CUT OFF THE MAIN POWER
SUPPLY and remove any batteries.

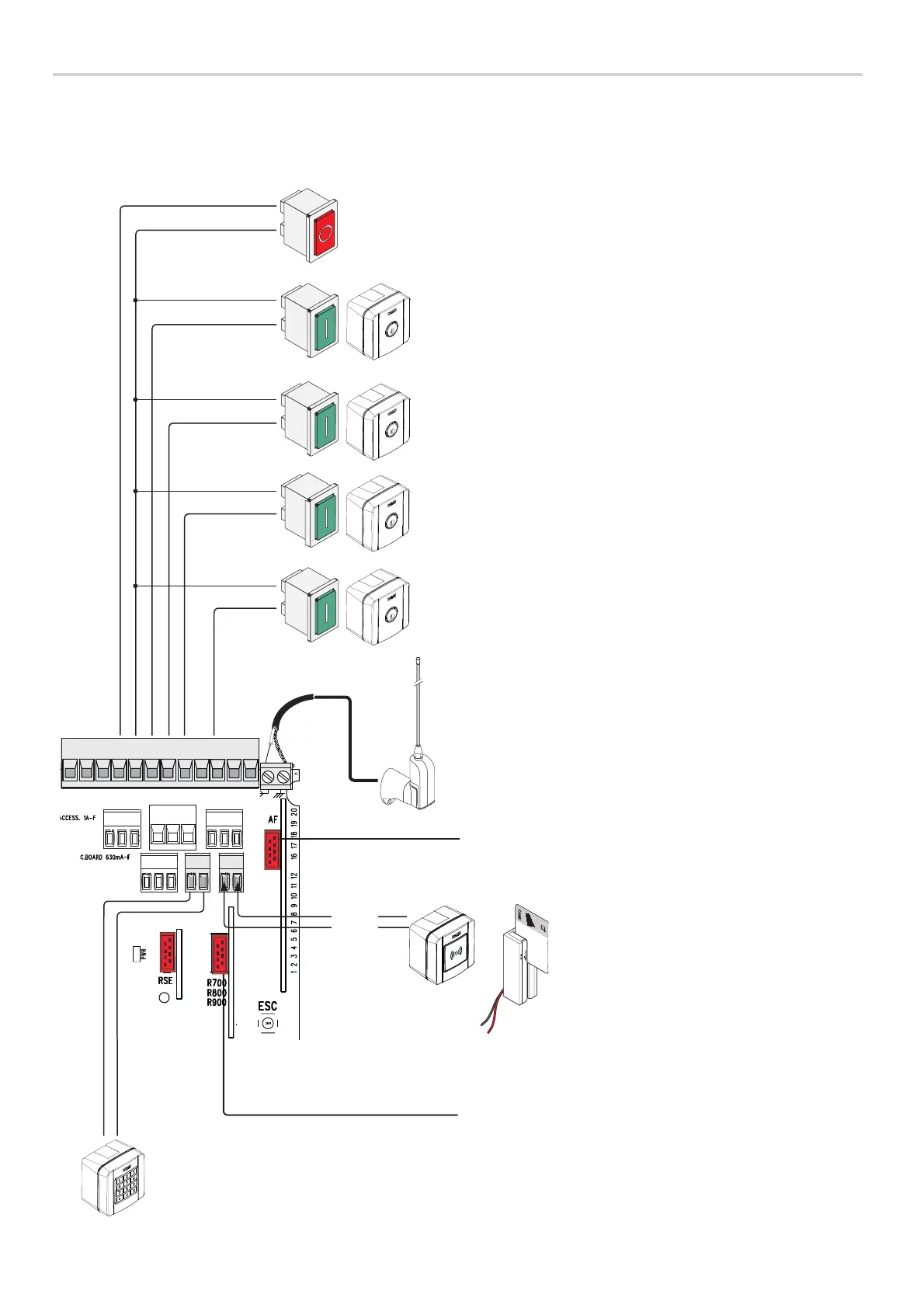

ONLY CLOSE function from control device (NO contact).
Warning: in MAINTAINED ACTION mode, the control device must be connected
to 2-4
.
PARTIAL OPENING function from control device (NO contact)
OPEN-CLOSE-INVERT (step-by-step) function from control device (NO contact).
Alternatively, from the functions programming you can activate the single
command OPEN-STOP-CLOSE-STOP (sequential).
See function F7.
OPEN ONLY function from control device with NO contact.
Warning: in MAINTAINED ACTION mode, the control device must be connected
to 2-3.
STOP button (NC contact). For stopping the gate while excluding automatic
closing. To resume movement either press the control button or any other
control device.
Activate the F1 programming function. If the button is no used, leave
this function deactivated.
Transponder or card reader.
Keypad selector.
CONTROL DEVICES
Antenna with RG58 cable for remote control.
