2
1
UNI 5739
12 X 70
M12
84
105
p. 8 - Manual FA01292-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

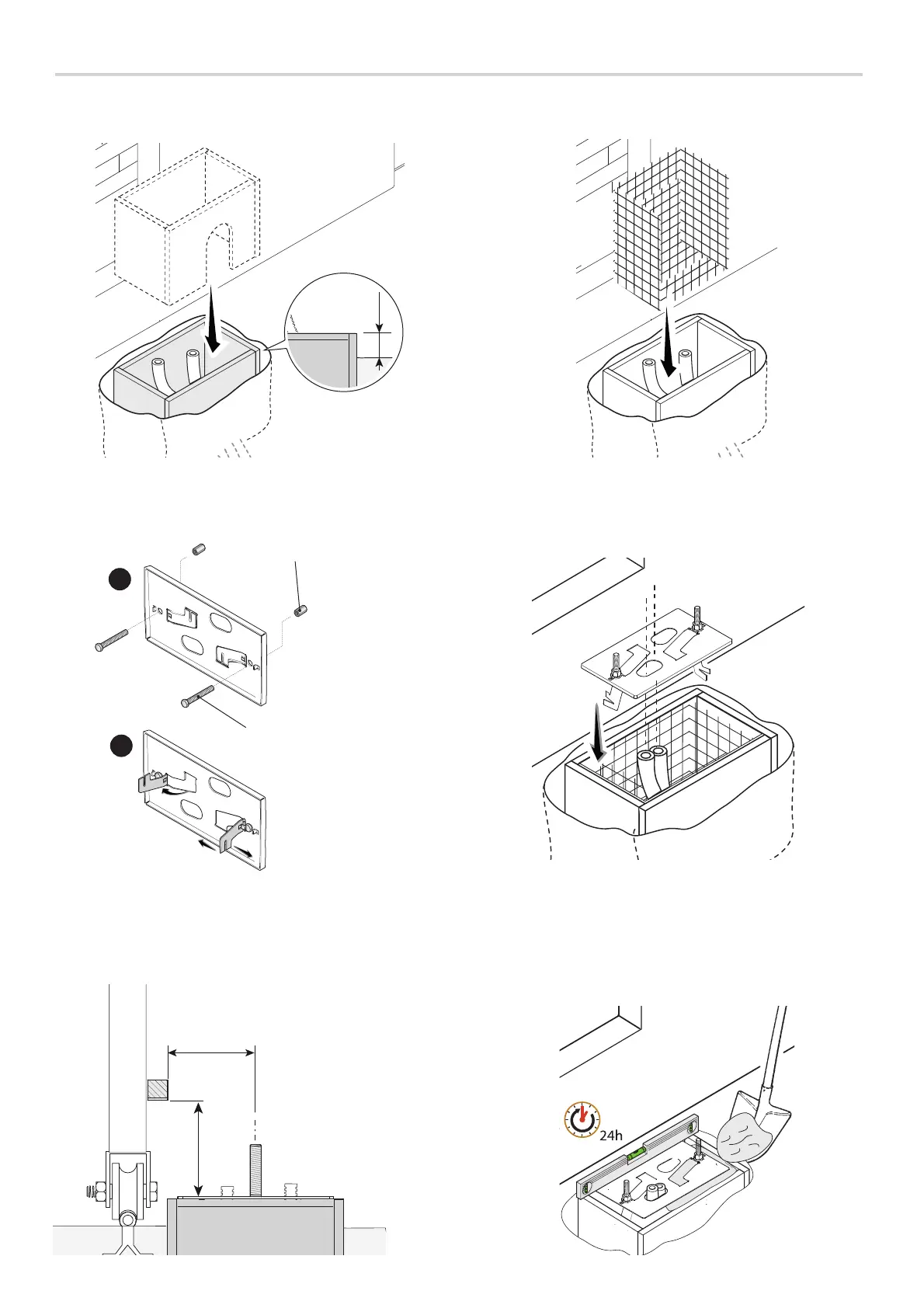

If the rack is already there, place the anchoring plate, being careful to respect the measurements shown in the drawing.
Fill the foundation frame with concrete. The plate must be perfectly level with the bolts which are entirely above surface.
Wait at least 24 hrs for the concrete to solidify.
Fit the bolts into the anchoring plate and tighten them using the nuts. Remove the pre-shaped clamps using a screw driver or pliers.
Fit the plate into the iron cage. Careful! The tubes must pass through their corresponding holes.
FITTING THE ANCHORING PLATE
Set up a foundation frame that is larger than the anchoring plate and sink it into the dug hole. The foundation frame must jut out by 50 mm above
ground level.
Fit an iron cage into the foundation frame to reinforce the concrete.
