CAME F7024N - Outer Opening Installation Specifics; Adapting to Outer Opening; Outer Opening Bracket Fastening

225
C C
A
B
A
B
110°
1
30 min
1
30 min
p.
11
11 - Manual code:
119U31EN
119 U31EN v.
7
7 -
10/2016
10/2016 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.
Installing and connections for outer opening
Following, are the only things that change compared to a standard installation:
Fastening the brackets

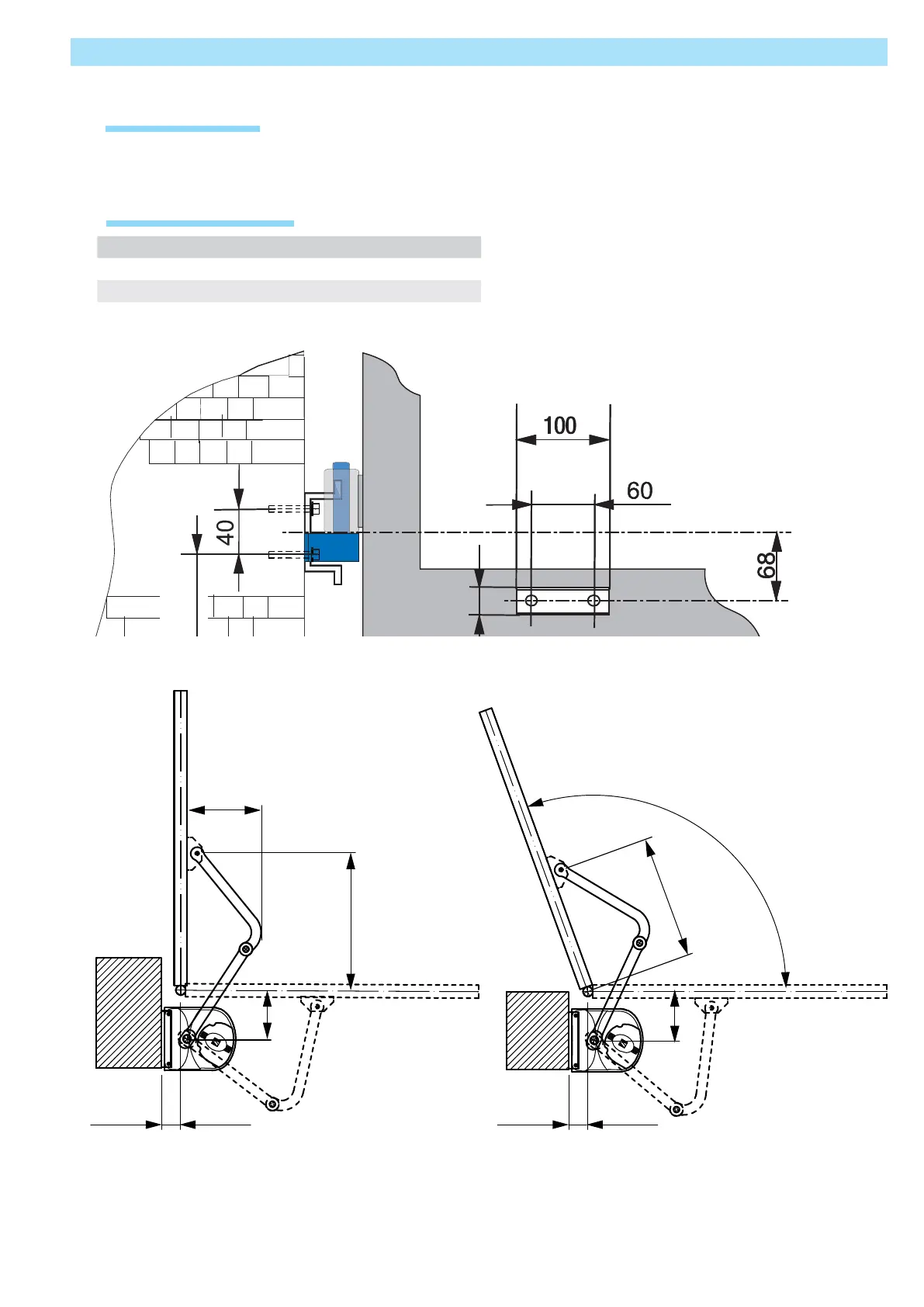

Establish where you will fit the gate brace and measure where the gate-post brace will fit. Make sure to respect the quotas shown in the drawing
and table.
Application dimension (mm)
Leaf opening arc (°) A C MAX B
90° 150 60 420
110° 150 60 380
