M8x90
(4)
M10x14
M12x55
M12
M12x40
M8
p.
8 - Manual code:
119 U31EN v.
7 -
10/2016 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.

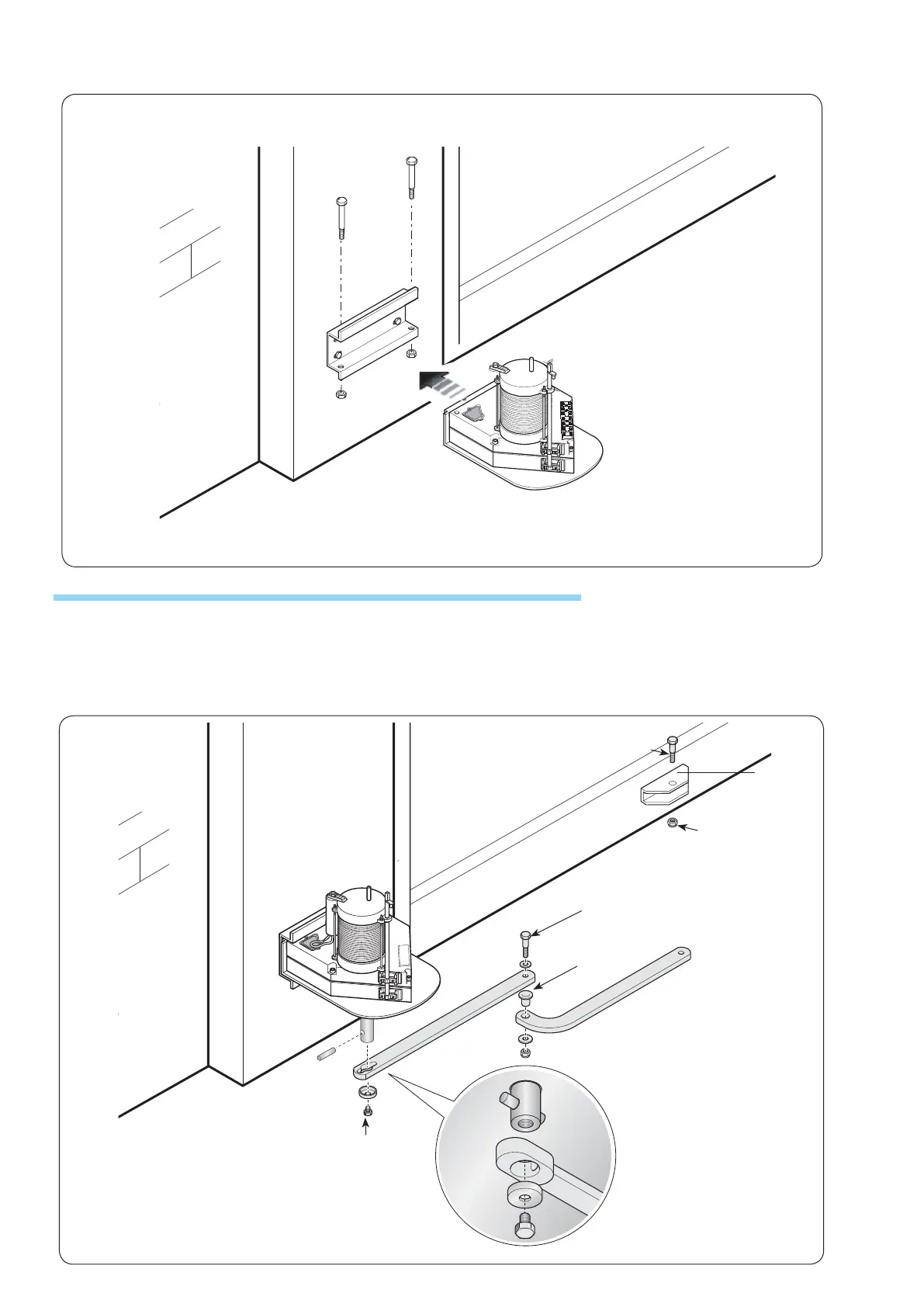

Fit the gearmotor into the post-mounted bracket; match the four holes and fasten it using the two issued M8x90 screws and M8
nuts (4).
- Fit and fasten the straight arm in to the gearmotor shaft using a plug, bolt and accompanying distancer.
Lubricate the bushing, fi t it onto the straight arm and join it with the curved arm by way of the supplied bolt, washers and nut.
Release the gearmotor and fasten the curved arm to bracket A using the supplied nut. Lubricate it and check that it moves
freely.
Distancer
Bracket A
Locking ring
Applying the articulated arm
