CAME G4040IZ User Manual

#
#
8
CAME
CAME
CAME
CAME
7
1
2
3
4
5
7
12
11
8
9
2
3
4
6
5
13
1
14
10
6
9
10
11
Pag.
3
-
Manual code
:
119GU55
119G U55 ver.
0.2
0.2 03/2010
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH
4.2 Technical information

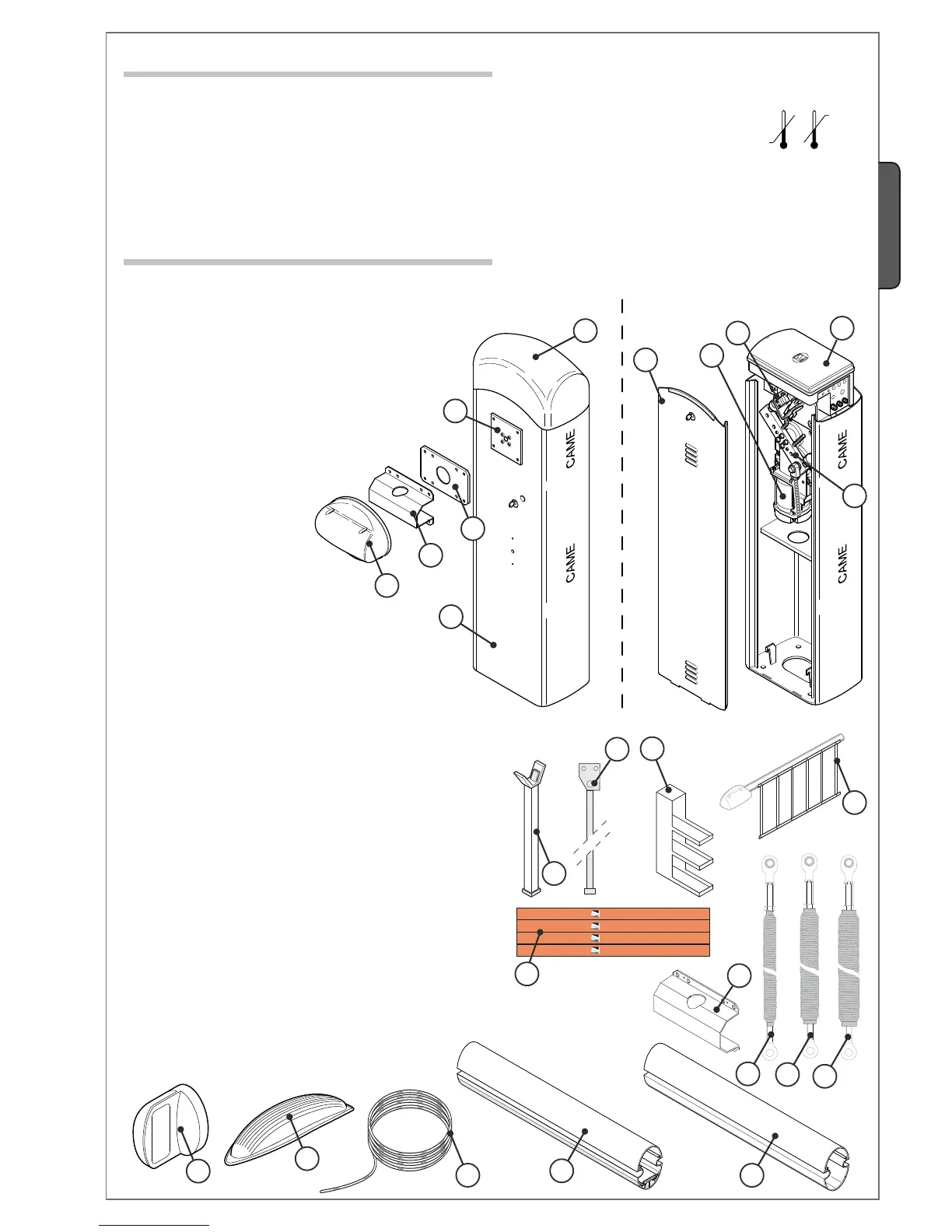

4.3 Parts description
AUTOMATION UNIT
ACCESSORIES
1) G03750 - Semioval aluminium bar, painted white L = 4 m.
2) G03752 - Oval aluminium bar, painted white L = 4 m.
3) G02040 - Ø40 (yellow) balancing spring
4) G04060 - Ø50 (green) balancing spring
5) G06080 - Ø55 (red) balancing spring
6) G0465 - Rack
7) G02802 - upport for DIR photoelectric cells
8) G02803 - Luminous cord
9) G02807 - Fixed barrier support
10) G02808 - Mobile barrier support
11) G02809 - Adhesive reflector strips
12) G02801 - Flashing dome lamp
13) G03751 - Emergency battery housing support
14) G03753 - Attachment fl ange for elyptical bar
11 -
VIEW FROM THE BAR SUPPORT BRACKET VIEW FROM INSPECTION HATCH
1) Upper dome
2) Bar beam plate
3) Bar fitting intermediate plate
4) Cover for semioval aluminium bar
5) Anti-shearing protection cover
6) Galvanized or stainless steel cabinet
7) Inspection hatch
8) Gearmotor
9) Lever
10) End stop unit
11) ZL38 Control panel
GEARMOTOR
Power supply: 230V A.C. 50/60Hz
Motor power supply: 24V D.C. 50/60Hz
Max. absorption: 1.3A (230V) / 15A (24V)
Rated power: 300W
Max. torque: 600 Nm
Reduction ratio: 1/202
Opening time: 2÷6 s
Operative intermittence: intensive operation
Protection level: IP54
Weight: 55 kg
Insulation class: I
