CAME G5000 User Manual

356
1077
450max. 4988
863
460 240
p. 6 - Manual FA00571-EN v. 1 - 08/2017- © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice.
KEY
This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues
☞
This symbol shows which parts to tell users about.
The measurements, unless otherwise stated, are in millimeters.
OPERATING LIMITS
Model G5000
Maximum clearance width of the passage (m) 5000
TECHNICAL DATA
Model G5000
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 230 AC
Input voltage motor (V) 24 DC
Max draw (A) 15
Power rating (W) 200
Torque (Nm) 600
Opening time (s) 4 ÷ 8
Cycles/hour
INTENSIVE USE
Operating temperature (°C) -20 to +55
Reduction ratio (i) 1/202
Apparatus class I
Weight (Kg) 78.5

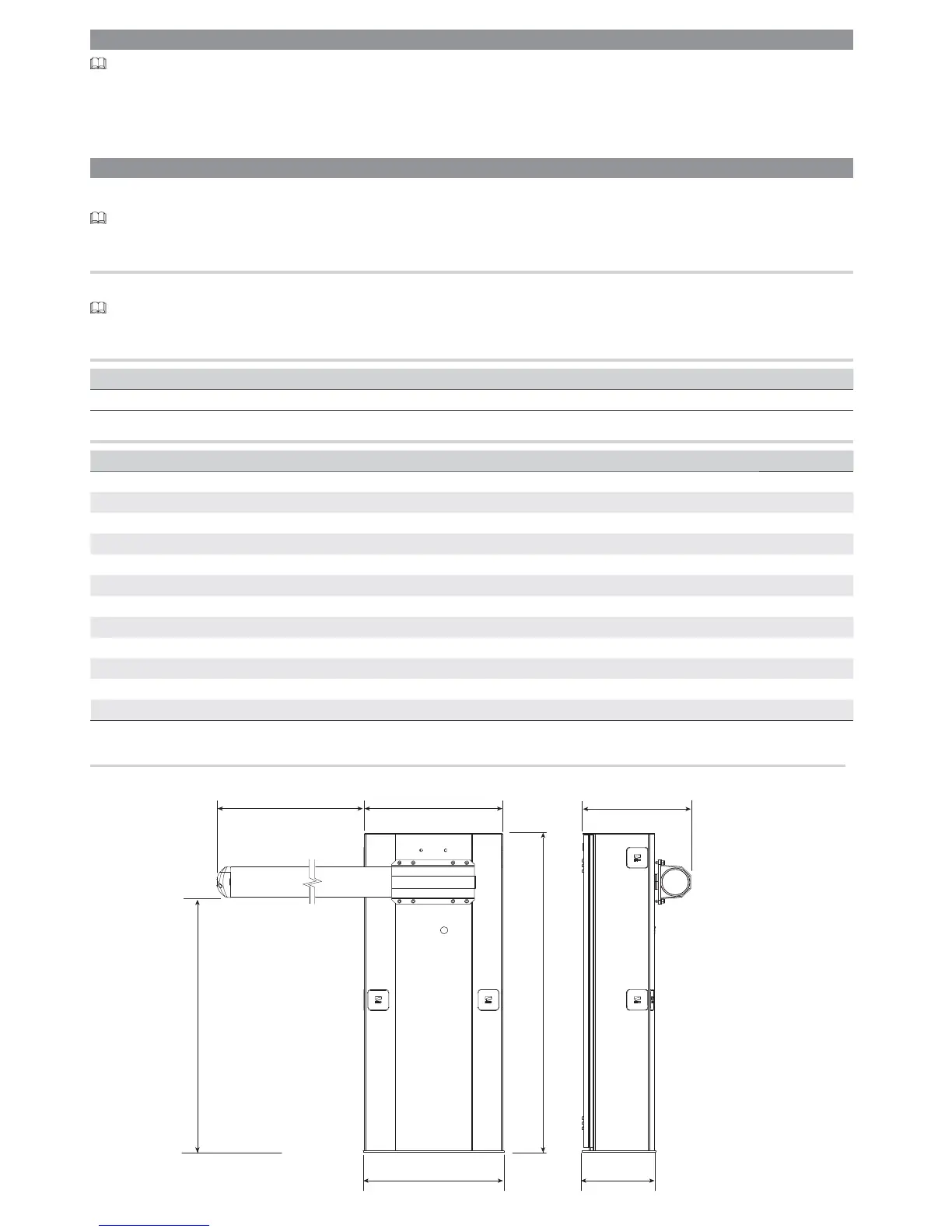

DIMENSIONS
DESCRIPTION
Barrier made of varnished galvanized steel set up to fit accessories.
REQUEST EITHER LEFT OR RIGHT-HAND BARRIERS WHEN ORDERING. THE ILLUSTRATIONS IN THIS MANUAL ARE ALL FOR LEFT-
HAND BARRIERS!
INTENDED USE
The automatic barrier is designed for private and public parking facilities.
Any installation and/or use other than that specified in this manual is forbidden.
