Page 13 - Manual FA01383-EN - 04/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

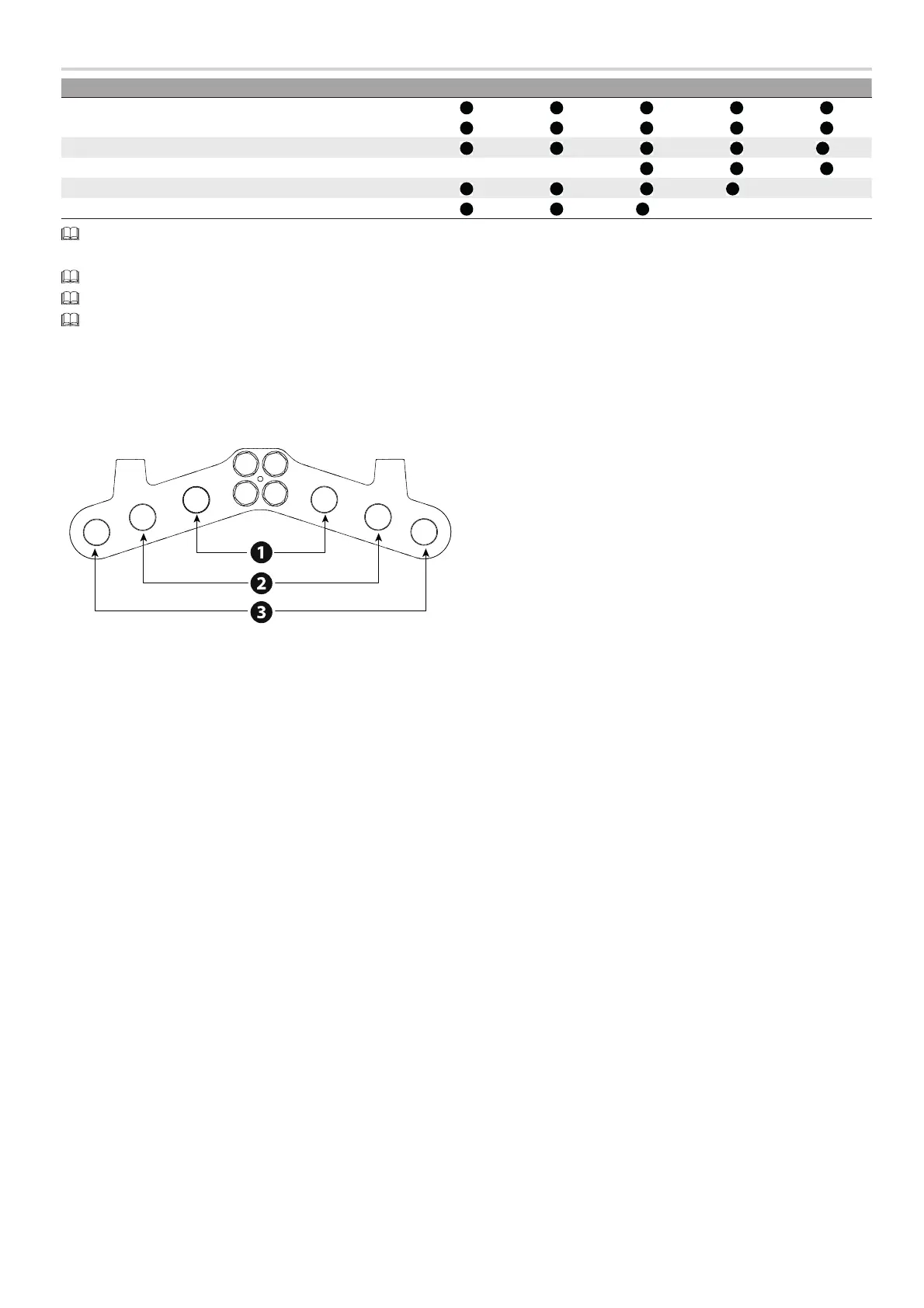

Choosing the hole for fixing the balance spring
Passage width clearance (m) 2,25 < 2,75 2,75 < 3,25 3,25 < 3,50 3,50 < 3,75 3,75 < 4,00
Boom with LED strip
1 1 1 2 2
Boom with LED strip and single skirt
1 2 2 3 3
Boom with LED strip and full-height skirt
1 2 3 3 3
*
Boom with LED strip and swing rest - -
2 2 3
Boom with LED strip, single skirt and swing rest
2 2 3 3
*
-
Boom with LED strip, full-height skirt and swing rest
2 3 3
*
--
Simple boom means the boom complete with slot cover, cap and rubber profile.
* The boom must be stabilised at 60° during the balancing procedure.
If the passage is wider than 3 m, you must use a support for the boom (fixed or mobile).
With a boom over 3.5 metres, LED strip and single skirt, you must used a fixed support.
With a boom over 3.25 metres, LED strip and full-height skirt, you must used a fixed support.
Single skirt (803XA-0340):
- max 2 modules for a 4 metre boom
Full-height skirt (803XA-0350):
- max 2 modules for a 4 metre boom.
