Page 14 - Manual FA01383-EN - 04/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

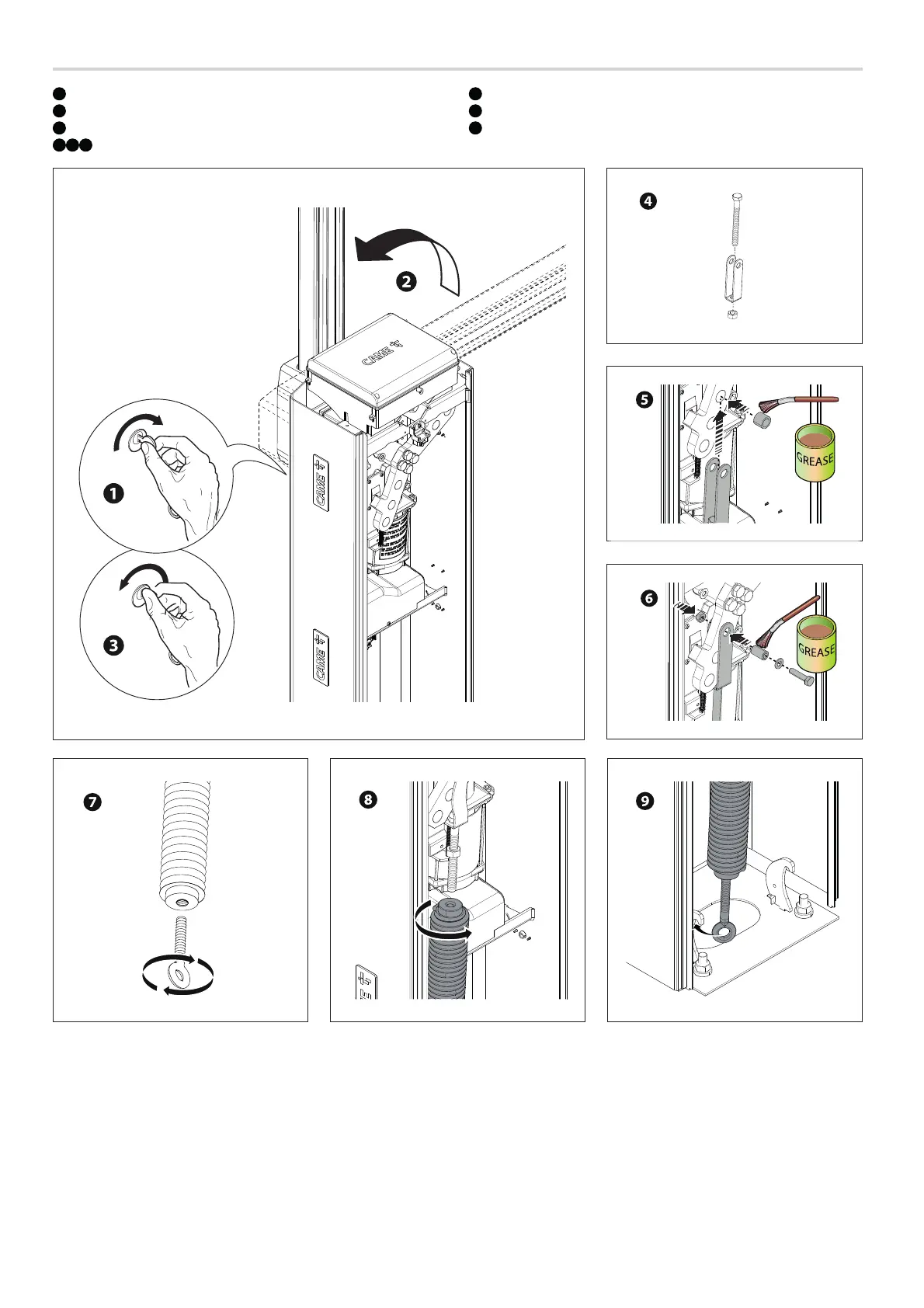

Assembling the balance spring
1
Release the gearmotor.
2
Position the boom vertically.
3
Lock the gearmotor
4 5 6
Assemble the anchoring pin and fix it on the lever arm.
7
Tighten the eyelet tie rod to the lower part of the spring.
8
Screw the spring to the anchoring pin.
9
Hook the eyelet rod onto the anchoring bracket.
8
