CAME GGT40AGS - Determining the travel end points with mechanical limit switches; Correct the booms horizontal position

Page 16 - Manual FA01383-EN - 04/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
Determining the travel end points with mechanical limit switches
Check that the boom is parallel to the road surface when it is in the closed position and at about 89° when it is in the open position.

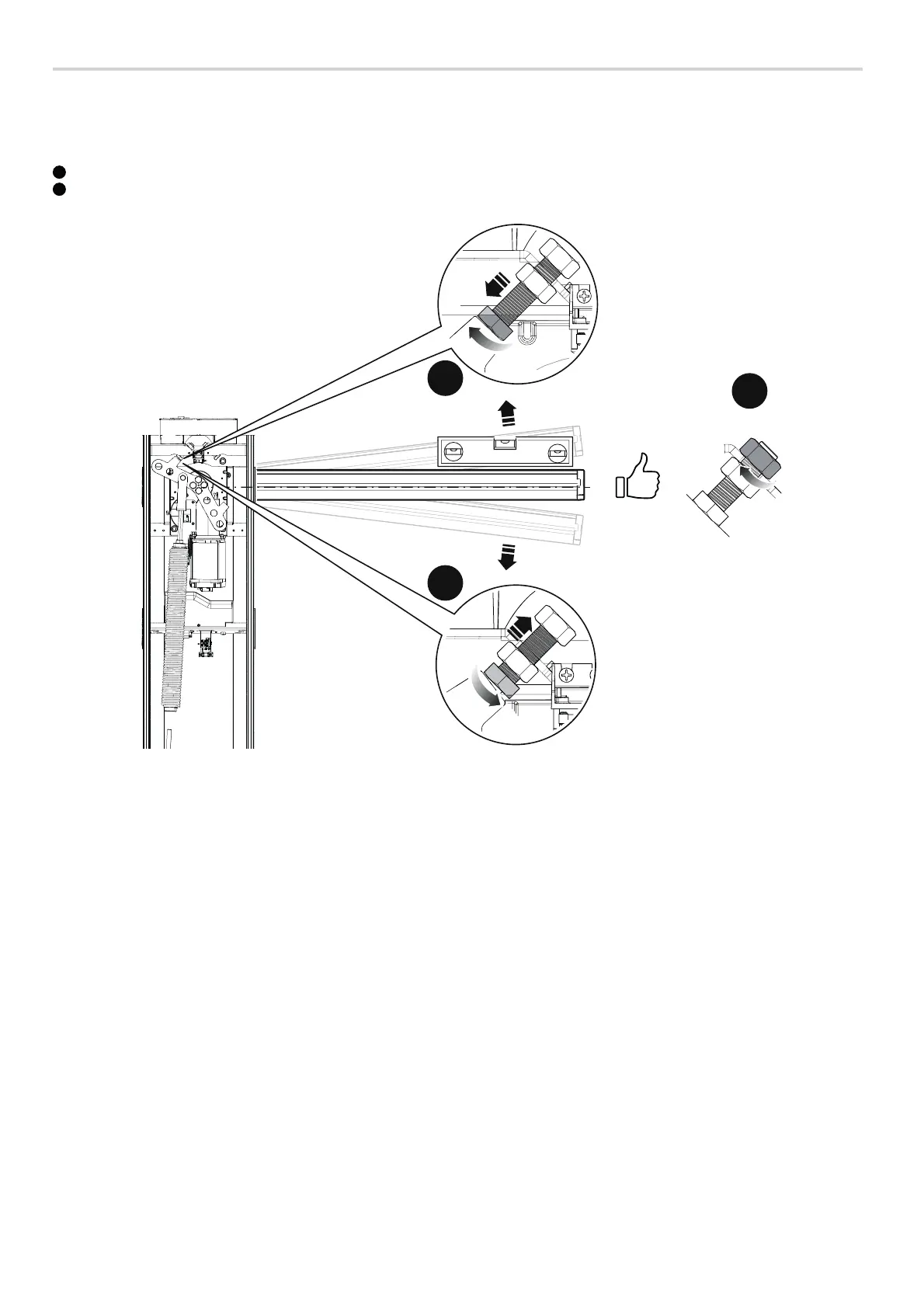

Correct the boom’s horizontal position
Release the gearmotor.
Open the inspection hatch.
1
Turn the mechanical stop until you reach the desired boom position.
2
Fasten the mechanical stop with a locknut.
Lock the gearmotor
+
_
2
1
1
